Product Description P/N: 193-EIMD
Description

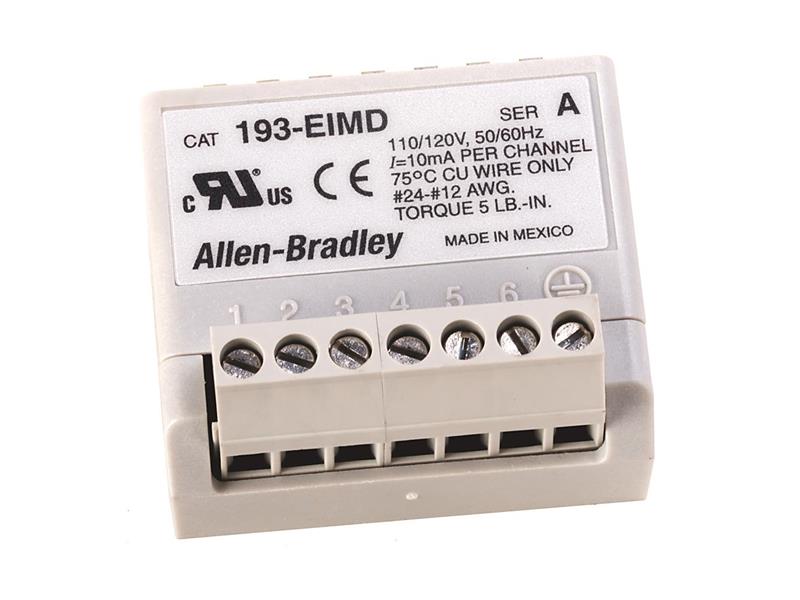

The Allen‑Bradley 193‑EIMD is a compact AC input interface module engineered for integration with E3 / E3 Plus solid-state overload relays (193‑EC, 592‑EC).
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category | Contactors & Starters |
| Part Number | 193-EIMD |
| Subcategory | Solid State Overload/Relay |
|
Series
|
E1 Plus Relays |
|
Bulletin
|
193-E3, E3 Plus |
| Compatibility | 193-EC, 592-EC |
| Inputs | 4 |
| Voltage Rating | 110 to 120 V AC |
| Frequency | 50 to 60 Hertz |
| Current Range | 0.4 to 5000 A |
| Nominal Operating Voltage | 600/1000 V |
| Overload Type | Microprocessor-based |
| Reset Options | Automatic/Manual |
| Current Adjustment Range | 5:1 |
| Weight | 0.05 lbs |
Information About 193-EIMD
The 193‑EIMD is a compact AC input interface module designed to integrate with the E3/E3 Plus solid-state overload relays (catalog numbers 193‑EC, 592‑EC). It processes up to four separate 110–120 VAC control signals, converting them into compatible logic inputs for motor protection systems. Robust in industrial use and specified for reliable performance, the module offers a quick 30 ms signal response and accommodates both 50 Hz and 60 Hz operation.
Key Features:
-
Module Type: AC Input Interface Module for Bulletin 193 overload relays
-
Compatibility: Works with 193‑EC and 592‑EC E3/E3 Plus overload relays
-
Inputs: 4 AC inputs, each suitable for 110–120 VAC, 50–60 Hz operation
-
Signal Timing: 30 ms maximum on-/off‑delay per channel
-
Voltage Range: 79–132 VAC, with nominal design at 110–120 VAC
-
Input Impedance: ~28 kΩ at 50 Hz; ~21 kΩ at 60 Hz
-
Heat Dissipation: ~0.10 W per input
-
Terminals: 7-point layout—4 inputs, 2 common AC, 1 earth ground
-
Wire & Torque: Supports 24–12 AWG stranded/single conductor; torque approx. 5 lb‑in / 0.55 N·m
-
Durability: 30 g shock resistance; vibration rated per IEC standards
-
Temperature Range: –20 to 55 °C operating; storage up to 85 °C; humidity 5–95 % RH non‑condensing
-
Mounting: Snap‑on attachment to E3 relay base; proper grounding required for EMC compliance
The 193‑EIMD is a reliable, high-performance AC input module that enables four discrete 110–120 VAC signals to be used with solid-state overload relay systems. With fast 30 ms response times, industry-standard input impedance, and rugged electrical and environmental specs, it enhances control flexibility and resilience in motor protection applications. Ideal for retrofits or new installations involving E3/E3 Plus relays, it supports durable operation under demanding industrial conditions.
