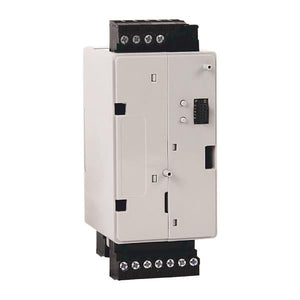

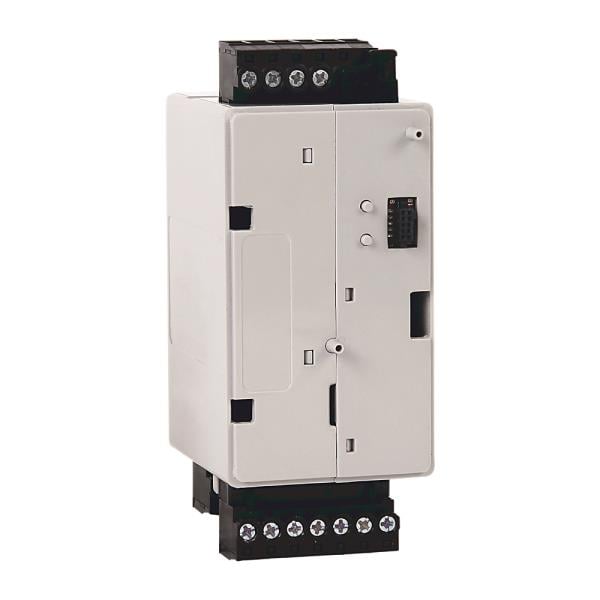

193-EIO-22-24D | Allen-Bradley E300 Control Module

Description

The Allen-Bradley 193-EIO-22-24D is an I/O-only control module from the E300 Electronic Overload Relay family. Designed to interface with motor protection systems, it provides two digital inputs and two relay outputs, operating at 24V DC for distributed I/O and basic motor monitoring tasks.

Technical Specifications

Information About 193-EIO-22-24D

The 193-EIO-22-24D is an E300 control module built for integration into Allen-Bradley’s E300 electronic overload relay systems. Specifically designed to support distributed input/output and motor protection applications, this module provides two discrete inputs and two relay outputs for flexible control logic integration. With a 24V DC control voltage and a compact design, it supports industrial environments where decentralized control and modular motor protection are required. It operates at a power rating of 6 watts and serves as an essential component in intelligent motor control centers (iMCCs), providing a reliable interface for monitoring and actuating field devices.

Key Features:

• Distributed I/O Capability: features 2 digital inputs and 2 relay outputs for flexible motor protection and control integration.
• 24V DC Control Voltage: operates with a standard industrial control voltage for compatibility with control systems and sensors.
• Low Power Consumption: rated at 6 watts, suitable for energy-efficient motor protection architectures.
• Modular Integration: designed to work seamlessly within Allen-Bradley’s E300 Electronic Overload Relay system.
• Robust Industrial Application: ideal for decentralized motor protection and distributed control in automated manufacturing environments.
• Compact 2-Outlet Configuration: space-saving design simplifies panel wiring and layout in MCCs.

The 193-EIO-22-24D provides dependable I/O connectivity for distributed motor protection solutions, enhancing flexibility and performance in industrial control systems.
