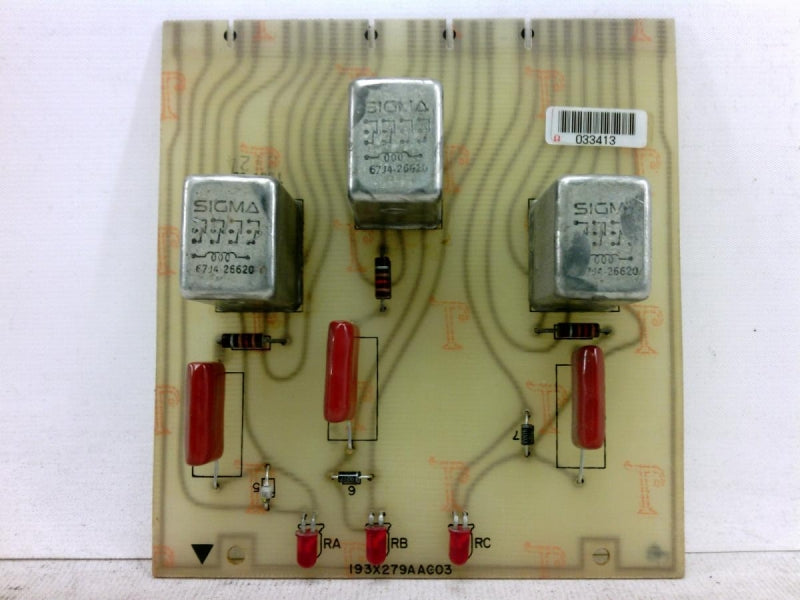

193X279AAG03 | General Electric Low Level Relay Card

Description

Technical Specifications

Information About 193X279AAG03

The General Electric (GE) 193X279AAG03 Low Level Relay Card is an essential component within the 193X Series, specifically engineered for use with GE exciters and drives. This relay card plays a crucial role in controlling and protecting electrical systems in industrial applications. It is equipped with three 2PDT (Double Pole Double Throw) relays, offering the flexibility to switch between multiple circuits simultaneously or redirect signals as needed. This configuration ensures the relay card can manage two independent circuits through each relay, providing enhanced control and operational versatility. The relay card is designed to handle a resistive contact load of 1 ampere per relay, making it suitable for applications that require precise control of low-power signals. It is rated for voltages up to 115 VAC or 20 VDC, which allows it to function effectively in both AC and DC environments. The coil voltage rating is standardized at 115 VAC, and the card operates within a frequency range of 50 to 60 Hz, ensuring compatibility with various power systems worldwide. This makes the 193X279AAG03 relay card ideal for global applications where electrical standards may vary by region. The GE 193X279AAG03 relay card is also designed with pilot duty capabilities, which makes it particularly suitable for applications that require the precise control of larger electrical loads. The inrush current capacity is rated at 1 ampere, enabling the relays to handle temporary current surges when the system is first energized. This is especially important in industrial environments where equipment may draw more current during startup than during regular operation. The holding current, or the steady-state current required to keep the relay energized, is rated at 0.2 amperes, ensuring that the system remains stable and reliable during continuous operation. This relay card is specifically designed for use with GE exciters and drives, making it an integral component in systems where precise control and protection of electrical circuits are paramount. The 193X279AAG03 card can be seamlessly integrated into existing GE systems, offering an effective solution for managing low-level signals in complex industrial environments. Its robust design and high-quality construction ensure reliable performance even in harsh conditions, making it a reliable choice for applications where durability and long-term performance are essential. Manufactured by General Electric, a leader in industrial technology, the 193X279AAG03 Low Level Relay Card is built to meet the highest standards of quality and reliability. GE’s rigorous manufacturing processes and stringent quality control measures ensure that each relay card delivers consistent performance and meets all relevant industry standards. This commitment to excellence makes the 193X279AAG03 a trusted component in critical industrial applications. In conclusion, the GE 193X279AAG03 Low Level Relay Card is a highly reliable and versatile component designed for use in GE exciters and drives. With its 2PDT relays, robust electrical ratings, and pilot duty capabilities, this relay card is well-suited for managing low-power signals in demanding industrial environments. Its compatibility with both AC and DC systems, along with its ability to handle inrush currents, makes it an essential component in ensuring the smooth operation of electrical systems. Whether for new installations or as a replacement part, the 193X279AAG03 relay card is a dependable choice for industrial applications that require precise control and long-term reliability.

Manufacturer information

General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
