Product Description P/N: 193X475AAG01

Description / Specifications

Description

The General Electric 193X475AAG01 is a Phase Logic Board designed for use in industrial control systems. This board provides phase logic control functionality, enabling precise management and coordination of system operations. It features standard connectors for integration with other components and supports reliable performance in various industrial applications. The 193X475AAG01 is engineered to meet General Electric's specifications for durability and operational reliability.



Technical Specifications



Model Number

193X475AAG01

Product Name

Phase Logic Board

Manufacturer

General Electric

Product Series

193x Series

Type

Printed Circuit Board (PCB)

Shape

Rectangular, long




Information About 193X475AAG01

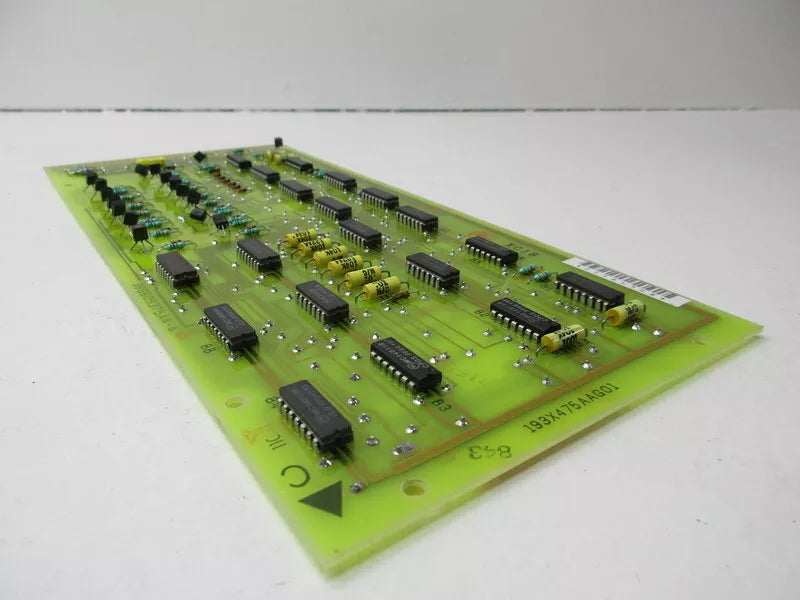

The 193X475AAG01 is a Phase Logic Board developed by General Electric as part of the 193x Series, tailored for use in various industrial control applications. This board is a printed circuit board (PCB) characterized by its long, rectangular shape, designed to fit seamlessly into complex control systems requiring precise phase logic control. The 193X475AAG01 plays a critical role in managing and processing electronic signals, ensuring accurate and reliable operation of the associated equipment and systems. Built to meet the rigorous demands of industrial environments, this PCB is engineered for durability and consistent performance.

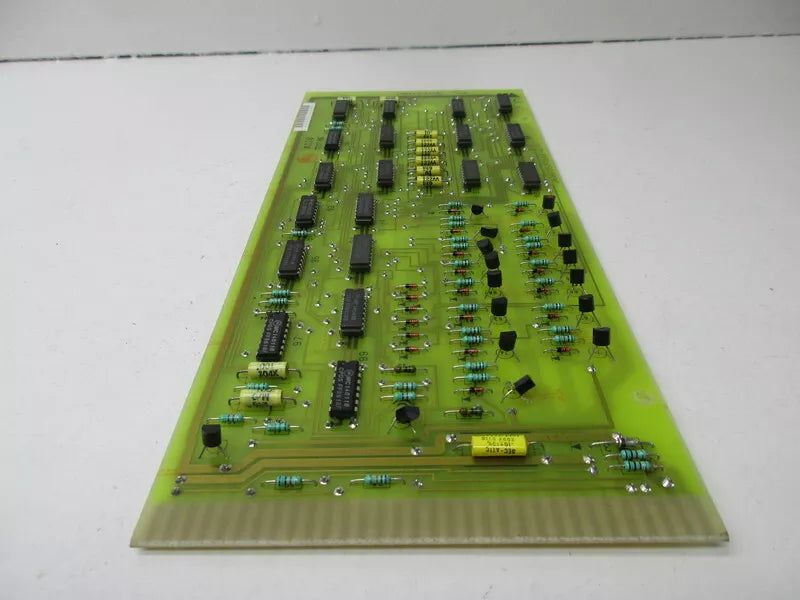

At the core of the 193X475AAG01's functionality are nineteen integrated circuits (ICs), which are strategically positioned across the board to optimize space and ensure effective signal processing. Twelve of these integrated circuits are located on the left side of the board, arranged in four rows of three ICs each, maximizing the use of space while maintaining a compact layout. The remaining seven ICs are on the right side, aligned in two parallel rows—one containing four ICs and the other three. This arrangement enables the board to handle complex logic operations efficiently, contributing to its effectiveness in phase control applications.

In addition to the integrated circuits, the 193X475AAG01 is equipped with nine small yellow capacitors. These capacitors are essential for stabilizing the voltage across the board, providing the necessary capacitance to ensure smooth operation. Six of these capacitors are aligned in a horizontal row on the left side of the board, providing localized voltage regulation. Two more capacitors are positioned along the left edge of the board, enhancing the board’s overall voltage handling capacity. The final capacitor is located on the right side of the board and is marked with a voltage rating of 200 volts, signifying its role in supporting higher voltage requirements. These capacitors play a crucial role in filtering and stabilizing the voltage supplied to the integrated circuits, ensuring reliable and stable performance.

The 193X475AAG01 Phase Logic Board also includes seventeen black transistors, which are integral to its signal amplification and switching capabilities. On the top right side of the board, fifteen transistors are arranged in two rows, with the top row containing seven transistors and the bottom row containing eight. Additionally, two more transistors are situated on the lower right side of the board. These transistors enable the board to handle electronic signals effectively, allowing for the amplification and switching necessary for phase logic control tasks.

Resistors are another key component of the 193X475AAG01, positioned predominantly on the right side of the PCB. These resistors are generally light blue and feature a series of colorful bands that indicate their resistance values. Arranged in rows, these resistors regulate the current flow across the board, ensuring that each component receives the appropriate amount of current. By managing current flow, these resistors help protect the integrated circuits and other sensitive components from electrical overload, contributing to the board's overall reliability and safety.

The design of the 193X475AAG01 reflects General Electric’s commitment to quality and innovation in industrial control systems. As part of the 193x Series, this Phase Logic Board is built to integrate seamlessly into existing systems, providing reliable phase logic control that enhances the performance and efficiency of industrial operations. Its robust construction and thoughtful component layout ensure that it can withstand the challenges of industrial environments, including exposure to electrical noise, temperature variations, and mechanical vibrations.

The 193X475AAG01 is suitable for use in a variety of industrial applications where phase logic control is required. Its combination of integrated circuits, capacitors, transistors, and resistors provides a balanced and efficient solution for managing complex logic operations. This makes the board an ideal choice for systems that demand high levels of precision and reliability.

In summary, the 193X475AAG01 Phase Logic Board by General Electric is a long, rectangular PCB designed for precise phase logic control in industrial settings. With nineteen integrated circuits, nine capacitors, seventeen transistors, and multiple resistors, it offers a robust and efficient solution for managing electronic signals and ensuring stable operation. As a component of the 193x Series, this board delivers the quality and reliability that General Electric is known for, making it a valuable asset for industrial control systems.
