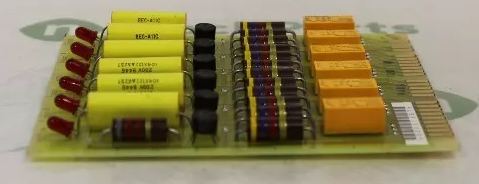

193X562AAG06 | General Electric General Purpose Relay Card 193X Series

Description

 The General Electric 193X562AAG06 board is a general-purpose relay card designed for the 193X series of drive replacement boards. It offers six relays with corresponding circuitry, providing users with the capability to connect optional devices to the drive. Each relay includes two form C contact pairs on the terminal strip and operates with a nominal voltage rating of 115 VAC. LED indicators on the board signal the presence of currents within the relay coils. Input sources should be rated at 115 VAC with a 50/60 Hz frequency, while the relay's operating voltage is 48 VDC, sourced via an integrated rectifier bridge, capacitor, and dropping resistor.

Technical Specifications

Information About 193X562AAG06

The General Electric 193X562AAG06 G/P Relay Board is an essential component within the Controls & Indicators category, specifically designed to enhance the functionality of control systems through reliable relay operations. This CPU/Control Board, distinguished by its part number 193X562AAG06, integrates seamlessly into various industrial applications, ensuring precise control and monitoring capabilities.

The G/P Relay Board features six Form C contact relays, which provide versatile switching options suitable for a wide range of control applications. These relays are designed to handle multiple switching tasks, offering dependable performance and flexibility in operation. Each relay is built to meet rigorous industrial standards, ensuring durability and long-term reliability in demanding environments.

In addition to the relays, the 193X562AAG06 is equipped with six LED indicators, providing clear and immediate visual feedback on the status of each relay. These indicators enhance operational visibility, allowing operators to quickly assess the functioning of the control system and make informed decisions. The inclusion of LED indicators is crucial for efficient monitoring and troubleshooting, ensuring that any issues can be identified and addressed promptly.

The coil voltage for this relay board is nominally rated at 115 VAC, making it compatible with standard industrial power supplies. This voltage rating ensures that the relays operate efficiently and effectively within the specified parameters, providing reliable performance across a variety of applications. Additionally, the operating voltage of 48 VDC further extends the board's versatility, allowing it to be integrated into systems that utilize direct current power supplies.

The 193X562AAG06 G/P Relay Board's robust design and advanced features make it a vital component for enhancing the functionality and reliability of control systems. Its ability to manage multiple relay operations simultaneously, combined with the convenience of LED status indicators, ensures that it meets the high demands of modern industrial environments. The board's construction is optimized for performance, ensuring that it can withstand the rigors of continuous operation while maintaining precise control over connected systems.

In summary, the General Electric 193X562AAG06 G/P Relay Board is a high-quality, reliable solution for control and monitoring applications in industrial settings. With its six Form C contact relays, six LED indicators, 115 VAC coil voltage, and 48 VDC operating voltage, it offers a comprehensive and versatile tool for managing complex control tasks. This relay board is designed to deliver consistent performance and durability, making it an indispensable component for any control system requiring robust and efficient relay operations.
