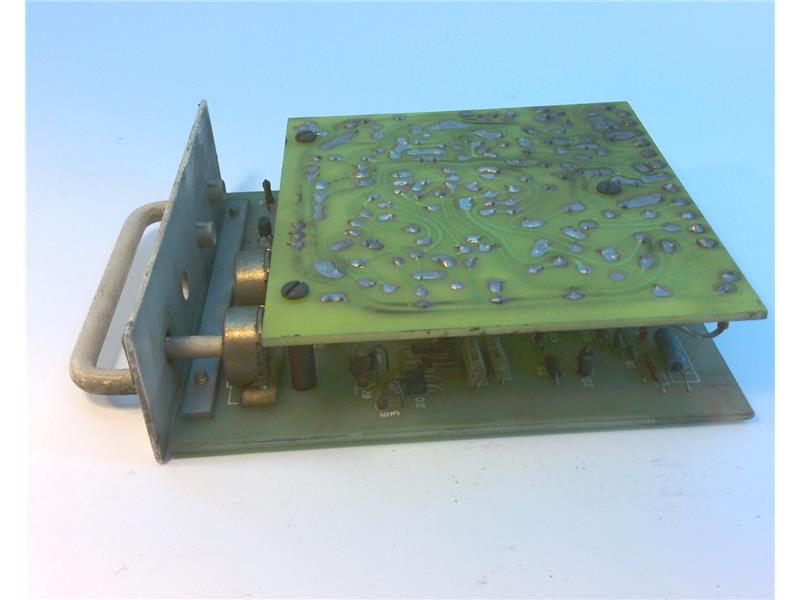

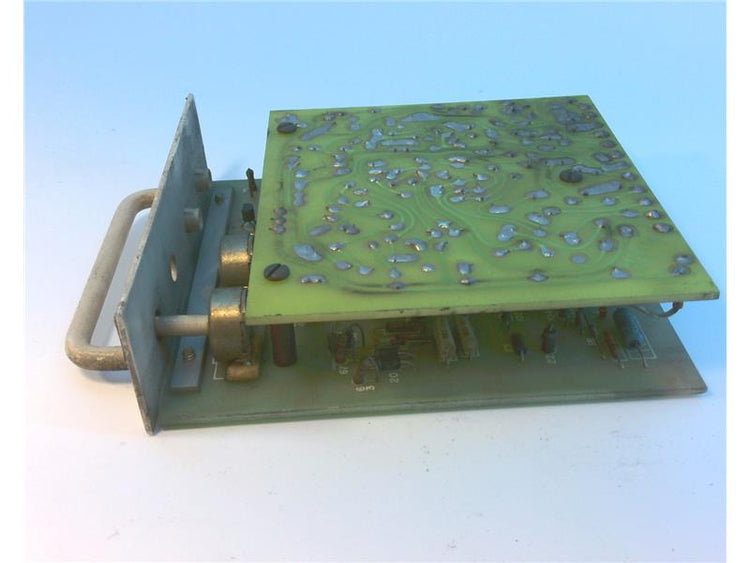

193X726AJG01 | General Electric Coordination PC Board

Description

The 193X726AJG01 is a Coordination PC Board designed for use in industrial control systems. It facilitates coordination functions within the system, ensuring proper signal management and control. This board is utilized to enhance the reliability and efficiency of coordinated operations.

Technical Specifications

Information About 193X726AJG01

The 193X726AJG01 is a Coordination PC Board manufactured by General Electric, designed for use within the Drives category, specifically as a Drive Board. This component is engineered to function as a double-layered driver coordination board, making it an integral part of GE's DC drive systems, including series like the Speed Variator drive and the SCR drive system. These systems are commonly used for adjustable speed, closed-loop, general-purpose applications, particularly in machine tool control environments. The 193X726AJG01 is designed to provide precise coordination and control capabilities, ensuring the accurate management of drive operations and enhancing the overall performance and reliability of the system.

Weighing 2.89 lbs, this coordination board is relatively lightweight, making it easy to handle during installation and maintenance. Its compact design facilitates seamless integration into existing drive systems without requiring significant modifications or additional space. The 193X726AJG01 board’s double-layered construction provides enhanced durability and allows for more complex circuitry, which is essential for handling the demanding requirements of modern drive systems. This robust design ensures that the board can withstand the operational stresses typically encountered in industrial environments, including temperature variations, vibrations, and electrical noise.

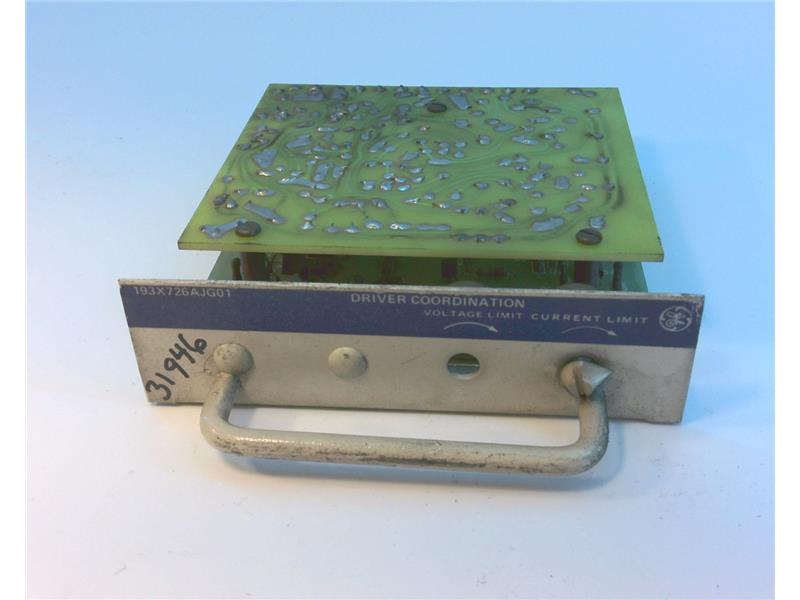

One of the key features of the 193X726AJG01 coordination PC board is its attached two-color front faceplate. This faceplate includes the board’s identification number, its intended use, and the GE logo, providing clear identification and branding. The faceplate also features a handle attached to its bottom edge, which facilitates easy removal or replacement of the board. This design element enhances user convenience, allowing for quick and efficient maintenance or replacement when necessary, thereby minimizing system downtime.

The front panel of the 193X726AJG01 is designed with four round openings. Two of these openings are unmarked and empty, while another is marked as "voltage limit" but is also empty. The fourth opening is marked "current limit" and is equipped with a rotary dial. This rotary dial is connected to a potentiometer located on the lower part of the circuit board. The inclusion of the rotary dial and potentiometer allows for precise adjustment of current limits, providing users with the ability to fine-tune the board’s performance to meet specific operational requirements. This feature is crucial in applications where precise control of current and voltage limits is necessary to ensure safe and efficient operation.

The 193X726AJG01 coordination PC board plays a vital role in maintaining the proper functioning of DC drive systems by coordinating the operation of various components within the drive. Its ability to manage and control driver functions ensures that the drive operates within specified parameters, preventing potential issues such as overcurrent or voltage irregularities. This level of control is essential for maintaining the integrity and performance of the drive system, reducing the risk of component failure and extending the lifespan of the equipment.

The design of the 193X726AJG01 reflects General Electric’s commitment to quality and reliability. The use of high-quality materials and precision engineering ensures that this board meets the rigorous standards required in industrial applications. Its role in coordination within DC drive systems makes it an indispensable component for achieving consistent and reliable drive performance, especially in environments where precision and control are critical.

In terms of application, the 193X726AJG01 is suitable for use in various industrial settings, including manufacturing facilities, processing plants, and any other environments where DC drive systems are utilized. Its versatility and robust design make it an excellent choice for both new installations and upgrades to existing systems. By providing reliable coordination and control, the 193X726AJG01 helps to optimize the performance of DC drive systems, ensuring efficient operation and minimizing the likelihood of unplanned downtime.

Overall, the 193X726AJG01 Coordination PC Board is a high-quality, reliable component designed to enhance the functionality and performance of General Electric’s DC drive systems. Its double-layered construction, convenient faceplate design, and precise adjustment capabilities make it a valuable addition to any industrial control system. By integrating the 193X726AJG01 into their drive systems, operators can achieve better coordination and control, leading to improved system efficiency, reliability, and overall performance.
