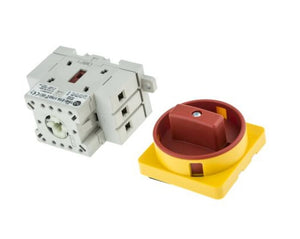

194E-E16-1753-4N | Allen-Bradley 194E Load Switch
- Regular price
- $73.00
- Sale price
- $73.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 100-C09DJ10
Description
The Allen-Bradley 194E-E16-1753-4N is a 16 A 3-pole load switch from the 194E Series, designed for safe and reliable disconnection of electrical equipment in industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Sensors
|
| Part Number | 194E-E16-1753-4N |
| Subcategory |
Load Cells
|
| Actuator | Supplied With A Type N Red/Yellow Actuator |
| Connection Type |
Screw
|
|
Enclosure Type
|
Open |
|
Mounting Type
|
4-Hole Front |
|
Size
|
16 A |
|
Standard
|
C-TICK,CE,CSA,KC |
|
Load Rating
|
5.5 kW at 400 VAC-3 |
|
Split Crucible
|
C |
|
Type
|
Variable Position Knob |
|
Weight
|
0.21 kgs |
Information About 194E-E16-1753-4N
The Allen-Bradley 194E-E16-1753-4N is a 3-pole, 16 A load switch from the Allen-Bradley 194E Series, designed for manual disconnection and isolation of electrical circuits in industrial and commercial control systems. Engineered for safety and flexibility, this switch includes a front rotary operating handle, door interlock mechanism, and 4 normally open (N.O.) auxiliary contacts, making it ideal for use as a main switch, load disconnect, or motor isolation switch in IEC-rated systems.
Key Features:
Electrical Ratings:
-
Rated Operational Current: 16 A
-
Rated Insulation Voltage (Ui): Up to 690V AC
-
Rated Impulse Withstand Voltage (Uimp): 6 kV
-
Power dissipation optimized for panel integration
Poles and Switching Configuration:
-
3-Pole main contacts for isolating three-phase circuits
-
4 x Normally Open (N.O.) auxiliary contacts for signaling and control integration
Mechanical Design:
-
Front-mounted rotary handle for operator accessibility
-
Door interlock prevents panel access when the switch is in the ON position
-
Compact modular design for easy integration into standard DIN-rail or panel-mounted enclosures
Standards and Safety:
-
Complies with IEC 60947-3
-
Provides clear and reliable circuit disconnection
-
Suitable for motor disconnect applications per IEC/EN standards
Mounting and Installation:
-
DIN-rail or panel mounting options
-
Snap-on auxiliary contacts for simple expansion
-
Designed for quick wiring and tool-free installation where possible
The Allen-Bradley 194E-E16-1753-4N is a compact, robust load switch engineered for safe manual isolation in three-phase systems. With a 16 A current rating, 4 auxiliary contacts, and a front-operated rotary handle with door interlock, it ensures operational safety and convenience. Its modular, DIN-rail-compatible design makes it ideal for use in motor control panels, machine installations, and main circuit disconnection applications where compactness and reliability are essential.
