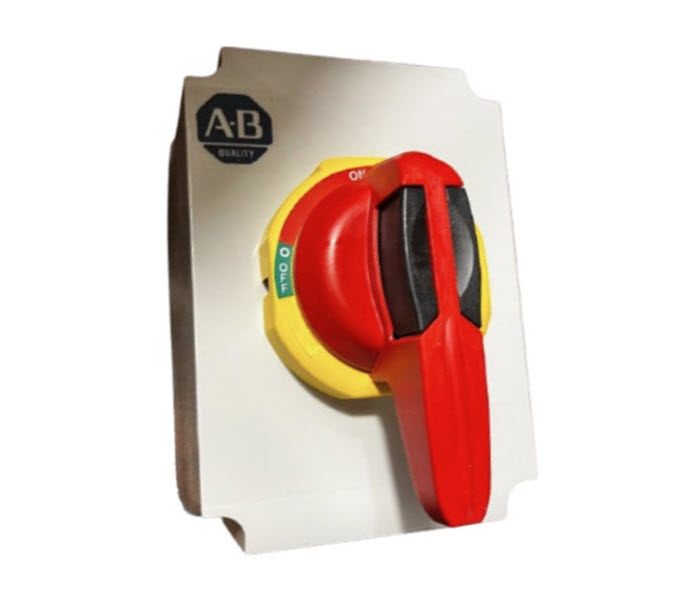

194E-KA20E | Allen-Bradley Load Switch
- Regular price
- $342.00
- Sale price
- $342.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 194E-KA20E
Description
The Allen-Bradley 194E-KA20E is a 3-pole load switch rated for 20 A, designed for use in industrial motor control and power isolation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Sensors & Switches
|
| Part Number | 194E-KA20E |
| Subcatecory |
Load Cell
|
| Amperage | 25 Amp |
| IP Rating | IP66 |
| NEMA Size | 3,4,4X |
|
Type
|
Variable Position Knob, Enclosed, Non-Metallic |
| Connection Type |
Screw
|
| Mounting Type | Ground |
| Number of Poles | 3 Pole |
| Housing Material | Plastic |
| Weight | 2.80 lbs |
Information About 194E-KA20E
The Allen-Bradley 194E-KA20E is an enclosed load disconnect switch designed for use in industrial motor control and isolation applications. With a current rating of 25A and a 3-pole configuration, it provides a reliable means of isolating electrical loads up to 600V AC. Its robust construction and weather-resistant enclosure make it suitable for use in demanding environments, including both indoor and outdoor settings.
Key Features:
-
Product Type: Enclosed Load Disconnect Switch
-
Current Rating: 25 A
-
Voltage Rating: Up to 600V AC (UL/CSA)
-
Pole Configuration: 3-Pole
-
Enclosure Type: IP66 / NEMA 3, 4, 4X (non-metallic housing)
-
Handle Configuration: Red/Yellow handle with 90° rotation (ON-OFF)
-
Auxiliary Contacts: 1 Normally Open (NO) and 1 Normally Closed (NC) contact
-
Mounting Options: DIN rail or base mounting
-
Ingress Protection: Dust-tight and water-resistant, suitable for outdoor use
-
Operating Mechanism: Positive break operation for safety compliance
-
Approvals: UL, CSA, CE compliant
The 194E-KA20E is part of the Allen-Bradley 194E series of modular disconnect switches. It offers compact design with reliable performance in local motor isolation and emergency stop scenarios. The inclusion of auxiliary contacts supports signaling applications, and the switch is compatible with a wide range of accessories, enhancing installation flexibility.
