194R-C30-1753 | Allen-Bradley 194R Disconnect Switch
- Regular price
- $269.00
- Sale price
- $269.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 194R-C30-1753
Description

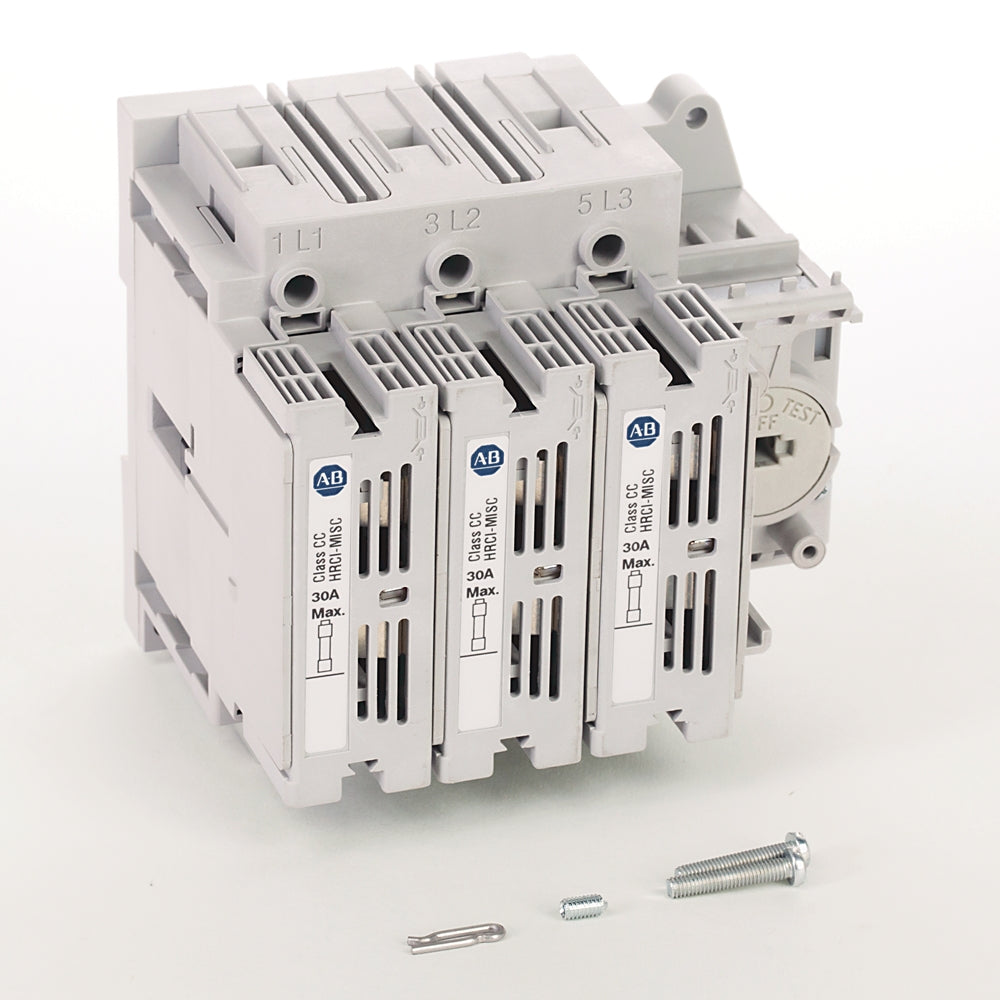

The Allen-Bradley 194R-C30-1753 is a 30A, 3-pole fused rotary disconnect switch rated for up to 600V AC/250V DC. It features a compact open-style design, rotary handle operation, and supports Class CC fuses for reliable circuit protection and isolation in industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
General Purpose Switches
|
| Part Number | 194R-C30-1753 |
| Subcategory |
Electrical Disconnect Switches
|
|
Bulletin Number
|
194R |
| Rated Operational Voltage | 600 VAC |
| Switch Type | Fused |
|
Fuse Class
|
UL Class CC |
|
Ampere Rating
|
30 Amps
|
|
Number of Poles
|
3 Pole
|
|
Mounting Type
|
Typically Panel Mount
|
|
Standard Compliance
|
UL Listed
|
|
Short-Circuit Current Rating (SCCR)
|
Typically 100 kA with Class CC fuses
|
|
Weight
|
0.73 kgs
|
Information About 194R-C30-1753
The Allen-Bradley 194R-C30-1753 is a fused rotary disconnect switch designed for industrial applications requiring reliable circuit isolation and protection.
Key Features:
-
Current Rating: 30 Amperes
-
Voltage Ratings:
-
AC: Up to 600 Volts
-
DC: Up to 250 Volts
-
-
Fuse Type: Compatible with UL Class CC and CSA HRCI-MISC fuses
-
Maximum Horsepower Ratings:
-
Single-Phase AC (60 Hz):
-
120V: 0.75 HP
-
240V: 2 HP
-
-
Three-Phase AC (60 Hz):
-
240V: 7.5 HP
-
480V: 15 HP
-
600V: 20 HP
-
-
DC:
-
125V: 3 HP
-
250V: 5 HP
-
-
-
Pole Configuration: 3-pole switch
-
Operating Mechanism: Rotary handle offering front or side operation
-
Safety Features:
-
Touch-safe design to prevent accidental contact
-
OSHA-compliant padlocking capability for enhanced safety during maintenance
-
-
Mounting Style: Open style configuration
This disconnect switch is suitable for use in various industrial settings where circuit isolation is necessary for safety and maintenance purposes. Its compact design aids in reducing panel space requirements, making it ideal for applications with space constraints.
