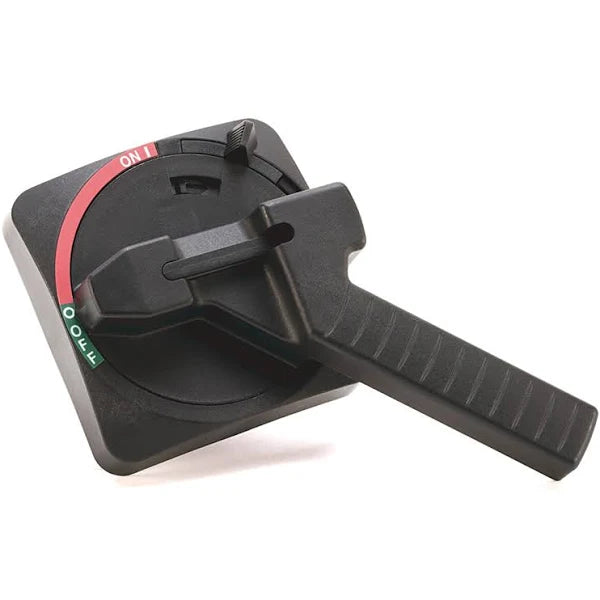

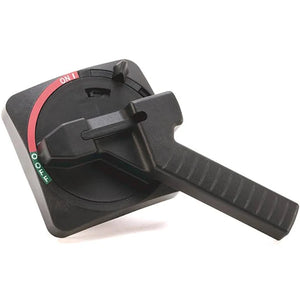

Part #: 194R-HM4 Manufactured by: Allen-Bradley
$122.00
$122.00
8 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
Allen Bradley 194R-HM4 Operating Handle for 194R Disconnect Switch Operating Handle, Standard Orientation With Defeater, B...  Read more
