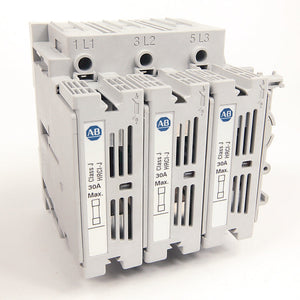

194R-J30-1753-PYS1 | Allen-Bradley 194R Disconnect Switch
- Regular price
- $524.00
- Sale price
- $524.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 194R-J30-1753-PYS1
Description
The Allen-Bradley 194R-J30-1753-PYS1 is a rotary disconnect switch rated for 30 A, designed for safe manual disconnection of electrical circuits. It features a non-fusible design, panel mounting, and a yellow/black padlockable handle for clear visual indication and safety during maintenance.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category | General Purpose Switches |
| Part Number | 194R-J30-1753-PYS1 |
| Subcategory |
Electrical Disconnect Switches
|
|
Shaft Options
|
S1 Shaft (12") , 194R-S1 |
| Pole Configuration | 3 Pole |
| Switch Ampere Rating | 30A |
| Fuse Type | UL Class J/CSA HRCI-J |
| Open, Kitted, or Enclosed | Kitted , Switch + Shaft + Handle |
| External Handle | Standard Red/Yellow Handle 3/3R/4/4X/12 , *194R-PY Operating Handle , *-PY Handle Code |
| Weight | 0.98 kgs |
Information About 194R-J30-1753-PYS1
The Allen-Bradley 194R-J30-1753-PYS1 is a 30 A, 600 V AC fused disconnect switch designed to provide safe and reliable circuit isolation in industrial applications. Part of the Bulletin 194R series, this rotary disconnect switch accommodates UL Class J or CSA HRCI-J fuses, offering robust overcurrent protection.
Key Features:
-
Current and Voltage Rating: 30 A at up to 600 V AC or 250 V DC.
-
Poles: Three-pole configuration for comprehensive circuit isolation.
-
Handle: Supplied with a standard red/yellow pistol-grip handle, enhancing visibility and safety.
-
Shaft: Includes a 12-inch (S1) shaft for flexible mounting options.
-
Enclosure Ratings: Meets NEMA 3, 3R, 4, 4X, and 12 standards, ensuring suitability for various environmental conditions.
This disconnect switch is ideal for applications requiring a reliable means of isolating electrical circuits during maintenance or emergency situations, contributing to overall workplace safety.
