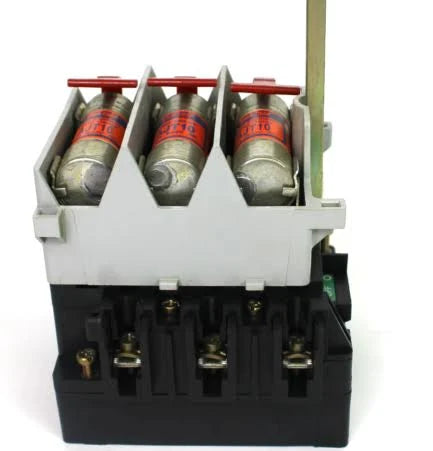

194R-NJ030P3 | Allen-Bradley IEC Disconnect Rotary Switch, Fused, 30A
194R-NJ030P3 | Allen-Bradley IEC Disconnect Rotary Switch, Fused, 30A

194R-NJ030P3 | Allen-Bradley IEC Disconnect Rotary Switch, Fused, 30A

Part #: 194R-NJ030P3 Manufactured by: Allen-Bradley
Regular price
$705.00
Sale price
$705.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
Allen Bradley 194R-NJ030P3 IEC Disconnect Rotary Switch, Fused, UL Class CC & J and CSA HRCI-J, 30A Current Rating, Open S...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 194R-NJ030P3
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
194R-NJ030P3 | Allen-Bradley IEC Disconnect Rotary Switch, Fused, 30A
    194R-NJ030P3 | Allen-Bradley IEC Disconnect Rotary Switch, Fused, 30A
194R-NJ030P3 | Allen-Bradley IEC Disconnect Rotary Switch, Fused, 30A

Product Description P/N: 194R-NJ030P3

Description / Specifications

Description

The 194R-NJ030P3 switch is a 4-pole fusible disconnect switch. The unit features a DIN Rail mounting option and it comes with a current rating of 30 Amps.



Technical Specifications



Brand Allen-Bradley
Series 194R Switches
Part Number 194R-NJ030P3
Mounting Type DIN rail
Phase 1/3
Amps 30
Voltage 600V AC / 250V DC
Ambient storage temperature -40 to 65 degrees Celsius
Ambient operating temperature -20 to 40 degrees Celsius
Number of poles 4





Information About 194R-NJ030P3

The 194R-NJ030P3 switch is an open style disconnect switch manufactured by Allen-Bradley, a division of Rockwell Automation. The fused disconnect switch features a voltage rating of 600 Volts AC with an alternative voltage rating of 250 Volts DC. The 194R-NJ030P3 switch features a current rating of 30 Amps while the specified mounting type is DIN Rail mounting. The 194R-NJ030P3 switch features 4 poles while it comes with the option to use a 3-phase connection or a single-phase connection. The 194R-NJ030P3 switch should be operated in an environment with optimal environmental conditions. The unit features an ambient operating temperature range of -2 to 55 degrees Celsius. The ambient storage temperature range is -40 to 65 degrees Celsius. If the switch is enclosed, the ambient operating temperature range is from -20 to 40 degrees Celsius. The unit should be operated at a maximum altitude of 2000 meters above sea level per the IEC 60947-1 standard specifications.

The Allen-Bradley fused disconnect switches like the 194R-NJ030P3 switch expand their current ratings to up to 1250 Amps for the IEC rating and to up to 800 Amps for the UL rating. The 194R-NJ030P3 switch is suitable as at motor disconnecting option and suitable as a service entrance disconnecting means (UL). The 194R-NJ030P3 switch features a flange mounting option and the rotary handle option. The 194R-NJ030P3 switch also features cable actuation with rod or shaft actuation options. The 194R-NJ030P3 switch is designed to withstand ratings of 200 kA and it comes as an NFPA 79 compliant unit. Allen-Bradley fusible disconnect switches feature a high short circuit current rating and a touch-safe design. The 194R-NJ030P3 switch comes with electrically isolated phases for minimal possible phase-to-phase shorting. The unit is RoHS compliant and it features double break switching for the full fuse line and load side isolation when the switch is off.





Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
