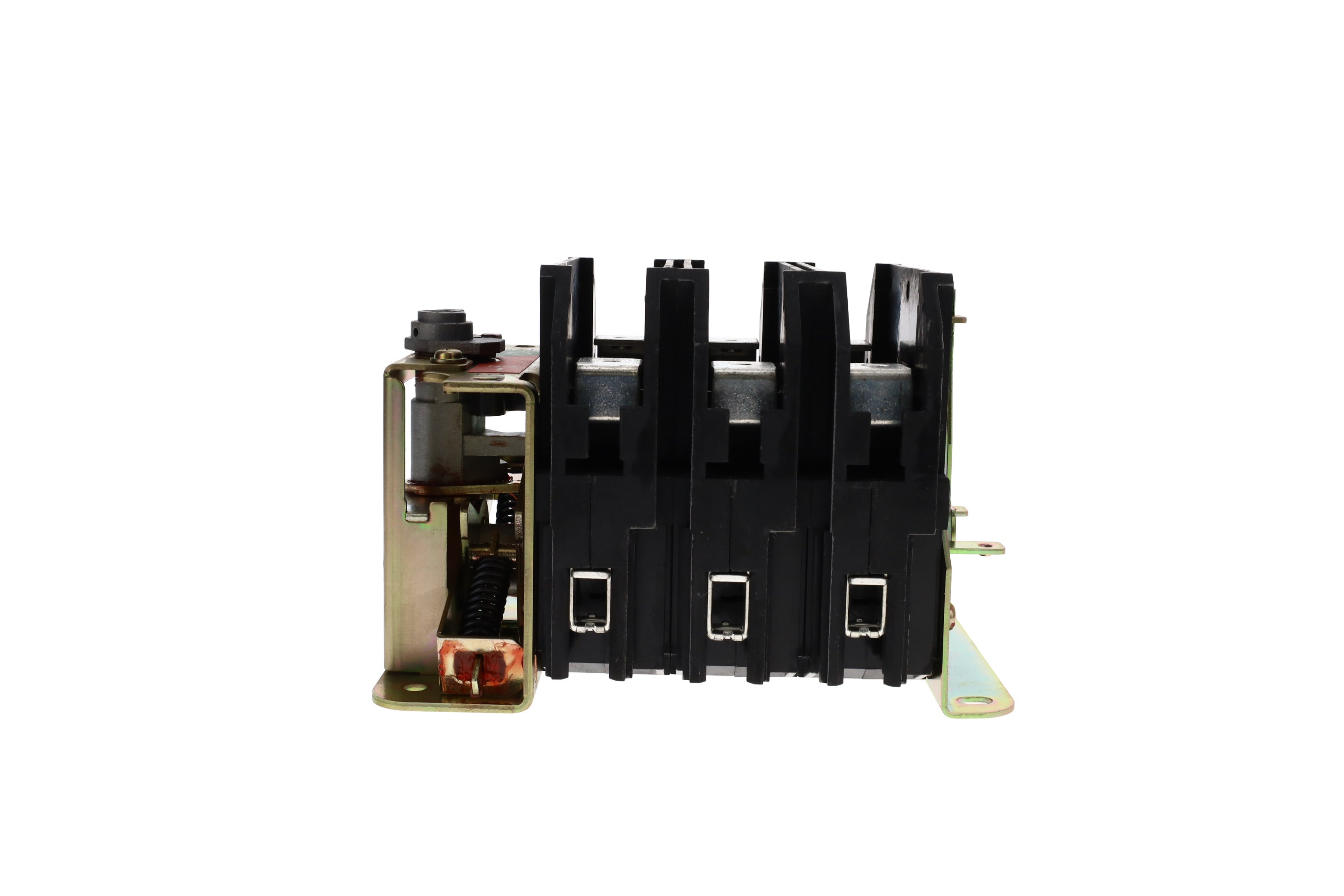

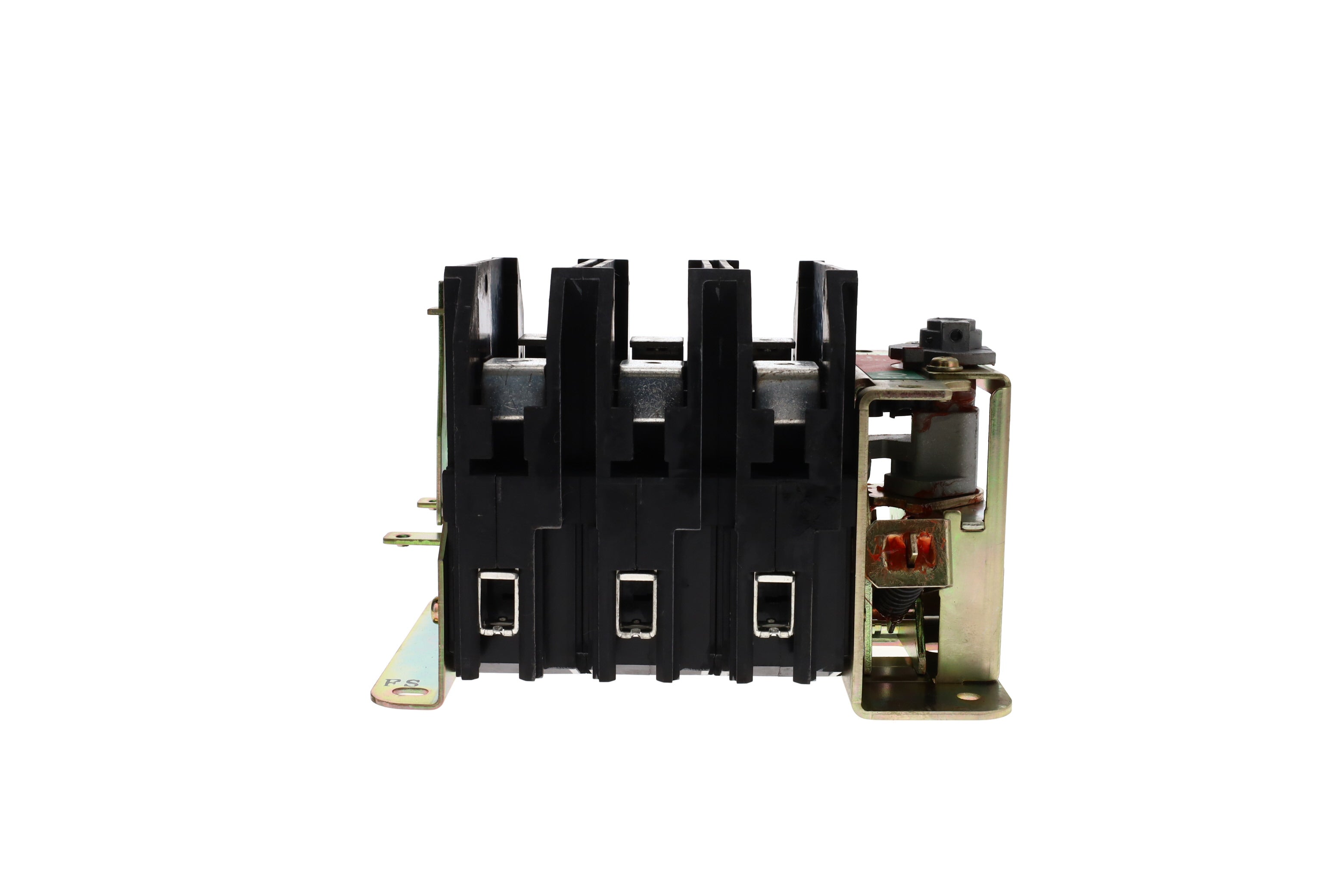

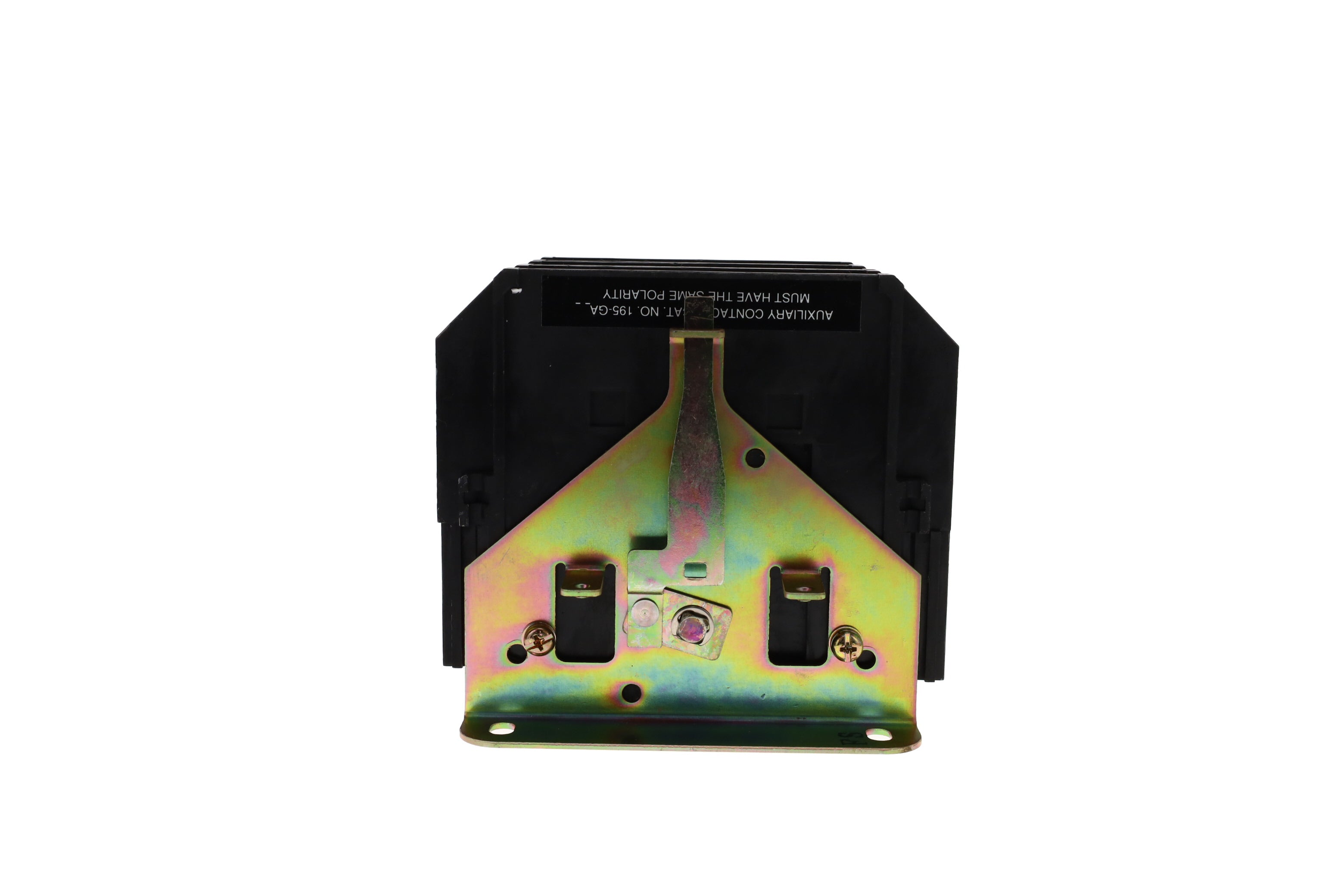

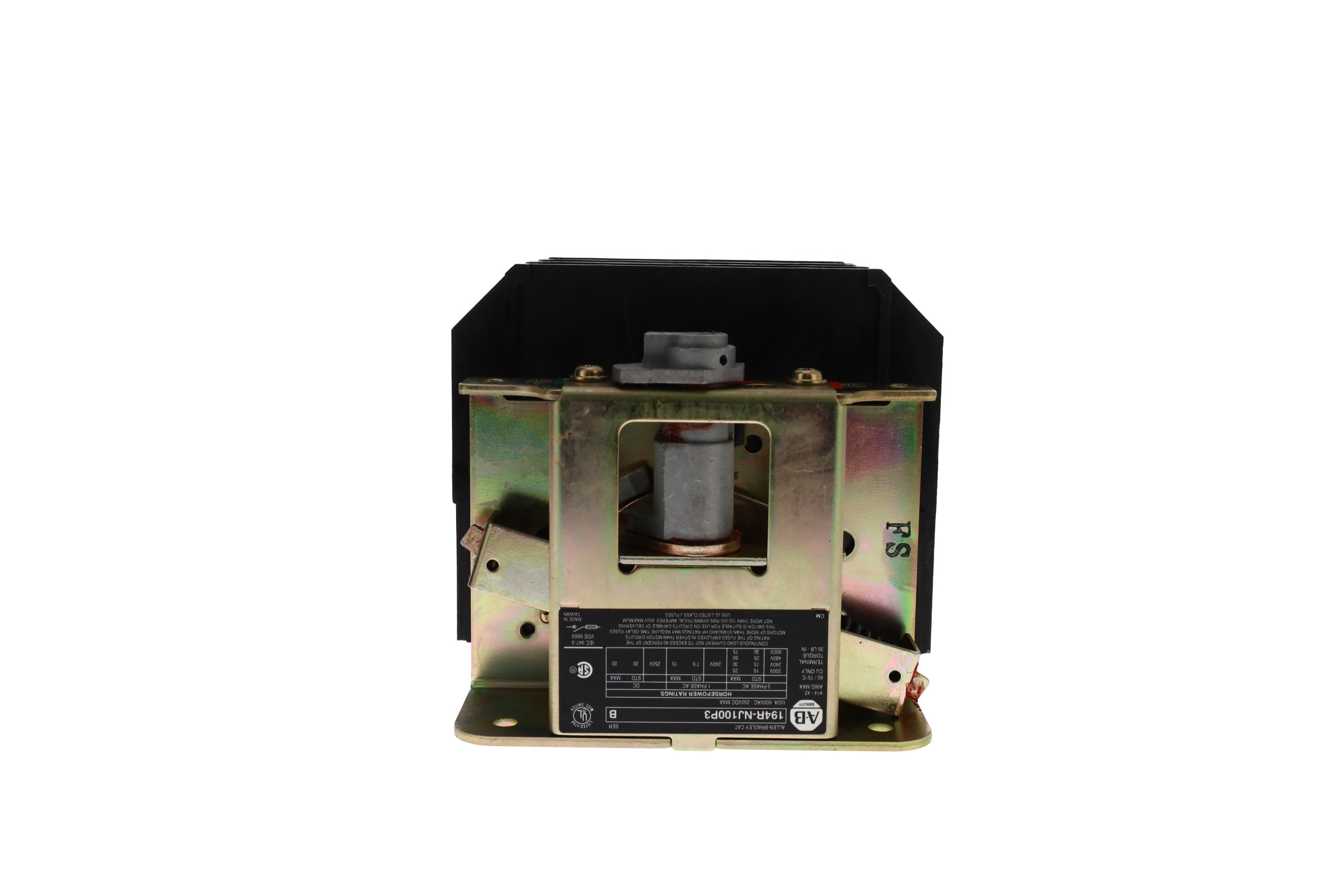

194R-NJ100P3 | Allen-Bradley Fused Disconnect Switch 100A 3-Pole 600VAC Open Style
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 194R-NJ100P3
Description
The Allen-Bradley 194R-NJ100P3 fused disconnect switch provides reliable power isolation and protection in industrial applications. Designed for 100A, 3-pole, 3-phase circuits, this IEC-rated switch ensures safe and efficient control of electrical systems at up to 600 VAC or 250 VDC.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Panel Accessories |
| Part Number | 194R-NJ100P3 |
| Subcategory | Disconnect Switch |
| Series | Bulletin 194R |
| Type | Fused Disconnect Switch (Switch Only) |
| Configuration | Open Style |
| Amperage Rating | 100 A |
| Poles | 3-Pole |
| Phases | 3-Phase |
| Voltage Rating (AC) | 600 VAC |
| Voltage Rating (DC) | 250 VDC |
| Standard Compliance | IEC |
| Replacement Part | 194R-J100-1753 |
| Application | Power isolation and panel protection |
| Operating Function | Switch Only (No enclosure) |
| Weight | 9.50 lbs |
Information About 194R-NJ100P3
The 194R-NJ100P3 is part of the Allen-Bradley Bulletin 194R disconnect switch series, built for industrial control panels and power distribution systems. This open-style switch is designed for switch-only applications and supports fused protection for enhanced circuit safety. With IEC construction, it is compatible with a wide range of electrical installations and panel configurations. The unit is a discontinued model, with 194R-J100-1753 specified as its direct replacement.
Key Features:
- Ampere Rating: Supports up to 100A continuous current for heavy-duty applications.
- Pole Configuration: 3-pole design enables safe switching of 3-phase power circuits.
- Voltage Capacity: Rated for 600 VAC and 250 VDC, ensuring versatility across AC and DC systems.
- Fused Design: Integrates with fused protection for enhanced electrical safety and fault interruption.
- IEC Standards Compliance: Built to IEC specifications for international compatibility and reliability.
- Open Style Construction: Optimized for panel mounting and easy integration into control enclosures.
- Direct Replacement: Superseded by Allen-Bradley 194R-J100-1753 for ongoing applications.
- Industrial Use: Suitable for power isolation, load switching, and protection in control panels.
The 194R-NJ100P3 delivers the reliability and precision required for industrial electrical power isolation and control.
