Part #: 194R-PY Manufactured by: Allen-Bradley
$78.00
$78.00
29 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 194R-PY is a rugged, padlockable rotary handle accessory for 194R disconnect switches up to 60 A. Its du...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Do you need help?

Call our Sales Manager
phone
+1 (828) 222-3490
Mon./Sat.: 7:00AM - 8:00PM
Write to us now
email
sales@iqelectro.com
Mon./Sat.: 7:00AM - 12:00PM
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 194R-PY
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 194R-PY

Description / Specifications

Description

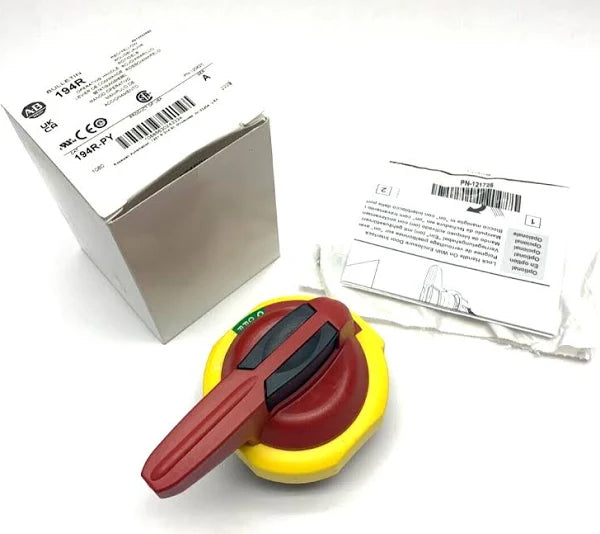

The Allen-Bradley 194R-PY is a rotary operating handle designed for use with 194R disconnect switches up to 60 A. It is a red and yellow, padlockable handle providing NEMA 3/3R/4/4X/12 and IP66 ingress protection for safe disconnection.




Technical Specifications

Condition New / Never Used Surplus
Brand Allen-Bradley
Color RED/YELLOW
Current Rating Up to 60 Amp
Handle Type ROTARY
IP Rating IP66
Nema Rating 3/3R/4/4X/12
Padlockable Yes
Product Type OPERATING HANDLE
Used With 194R Series up to 60 a Disconnect Switches
Mounting Door
Series A





Information About 194R-PY

The 194R-PY is part of the Allen-Bradley 194R series of disconnect switch accessories, engineered to provide a secure and visible means of isolating power. Designed for use with 194R disconnect switches rated up to 60 A, this handle features a red/yellow rotary operator that enhances visibility and operator safety. It accepts up to three padlocks in the OFF position, supporting lockout/tagout (LOTO) procedures for maintenance and compliance with safety standards. Built with high ingress protection, the handle is rated NEMA 3/3R/4/4X/12 and IP66, ensuring resistance to dust, water, and outdoor environments. The 194R-PY is suitable for industrial control panels, machinery, and motor disconnect applications requiring reliable and safe manual power isolation.

Key Features:

  • Compatibility: Designed for Allen-Bradley 194R disconnect switches up to 60 A.
  • Handle type: Rotary operating handle in high-visibility red and yellow design.
  • Lockout capability: Padlockable design supports up to three padlocks for safety lockout/tagout procedures.
  • Environmental rating: NEMA 3/3R/4/4X/12 and IP66 rated for protection against dust, water, corrosion, and outdoor exposure.
  • Application: Provides a secure disconnection method for machinery, control panels, and motor circuits.
  • Safety compliance: Enhances operator safety through visible status indication and lockout functionality.
  • Durability: Built for reliable operation in harsh industrial environments.
  • Mounting: Designed for easy installation with compatible 194R disconnect switch assemblies.

The 194R-PY delivers the reliability and precision required for safe disconnection and lockout in industrial power isolation systems.





Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

Frequently Asked Questions about 194R-PY
Question: What is the Allen-Bradley 194R-PY?
Date Update:26/05/2025
Answer:

The 194R-PY is a padlockable red/yellow rotary handle used with Allen-Bradley 194R series disconnect switches. It enhances operational safety by preventing unauthorized or accidental operation of a power disconnect. Its bright red/yellow coloring provides high visibility in industrial settings, particularly during emergency situations. This handle is commonly used in control cabinets across manufacturing, processing, and energy sectors.

Question: Is the 194R-PY handle padlockable, and how many padlocks does it support?
Date Update:26/05/2025
Answer:

Yes, the 194R-PY is padlockable and can accommodate up to three padlocks simultaneously. This enables multiple personnel to secure the disconnect switch during group lockout scenarios. Each technician can apply their own lock, ensuring power cannot be restored until all locks are removed. This feature supports compliance with OSHA and other international LOTO standards.

Question: With which disconnect switches is the 194R-PY compatible?
Date Update:26/05/2025
Answer:

The handle is designed for use with Allen-Bradley 194R Series disconnect switches rated up to 60 amps. It is suitable for both fused and non-fused types within this range. Its standardized mechanical interface makes it easily integrable with compatible switch bodies. Always verify amp rating and mechanical fit before installation.

Question: What are the physical dimensions of the 194R-PY handle?
Date Update:26/05/2025
Answer:

Exact dimensions may vary slightly depending on the door thickness and shaft length, but the handle’s body is typically around 75–85 mm in diameter, with a depth of approximately 60 mm from panel surface. It is designed to fit standard enclosures and ensures enough torque to reliably operate disconnect mechanisms. Always refer to Rockwell’s mechanical datasheet for detailed measurements.

Question: Is the Allen-Bradley 194R-PY still in production?
Date Update:26/05/2025
Answer:

Yes, the 194R-PY is an active product within Rockwell Automation’s disconnect switch accessory lineup. It remains widely available through authorized distributors and is commonly used in current panel designs. Always check with Rockwell’s Product Lifecycle Status tool to confirm long-term support and availability. Its popularity in LOTO-compliant systems ensures continued demand.
