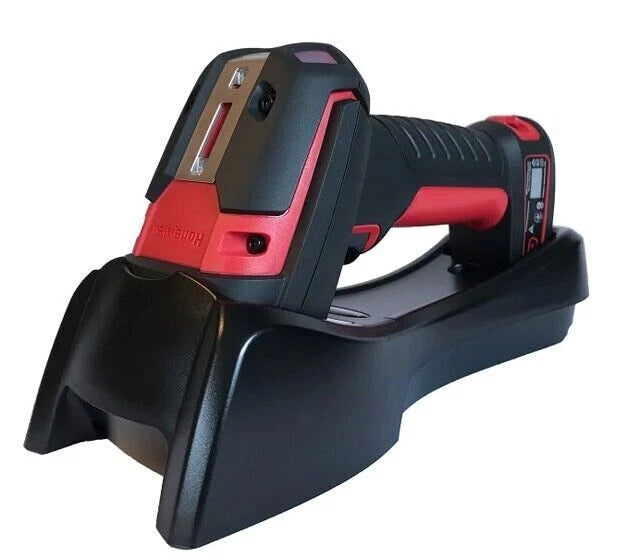

1990IXLR-3-N | Honeywell Granit XP Ultra-Long-Range Industrial Scanner
- Regular price
- $1,864.00
- Sale price
- $1,864.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1990IXLR-3-N
Description
The Honeywell 1990IXLR-3-N is a rugged, tethered area-imaging scanner built for extreme long-range barcode capture in industrial environments. Part of the Granit XP family, it leverages XLR technology to scan both near and far, with durability designed to resist drops, tumbling, and harsh conditions. The unit supports 1D and 2D symbologies over RS-232 or USB interfaces, making it ideal for warehouse, logistics, and manufacturing operations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Bar Code Equipment |
| Part Number | 1990IXLR-3-N |
| Subcategory | Bar Code Scanner Hand Held |
| Scan Technology | Area Imager (Dual Array) |
| Read Range | UPC: up to 2 m (6.6 ft); 100 mil: up to 24 m (79 ft) |
| Drop / Tumble | 3 m drop, 7,000 tumbles @ 1 m |
| Sealing / Protection | IP67 / IP65 |
| Operating Temp | –30 °C to +50 °C (–22 °F to 122 °F) |
| Storage Temp | –40 °C to +70 °C |
| Humidity | Up to 95 % RH non-condensing |
| Motion Tolerance | Up to 4,500 mm/s (177 in/s) |
| Input Voltage | 4.0 – 5.5 VDC |
| Operating Power | 2.35 W (470 mA @ 5 V) |
| Standby Power | 0.5 W (100 mA @ 5 V) |
| Interfaces | USB, RS-232 (TTL), Keyboard Wedge |
| Imager Resolution | Near: 1280 × 800; Far: 1920 × 1080 |
| Print Contrast | 20 % minimum reflectance difference |
| Feedback | LEDs, Beeper (adjustable), Vibration |
| Certifications / Warranty | 3-year factory warranty |
| Dimensions (L × W × H) | 192 mm × 76 mm × 100 mm (7.6 in × 3.0 in × 3.9 in) |
| Weight | 320 g (11.3 oz) |
Information About 1990IXLR-3-N
The 1990IXLR-3-N is a scanner-only variant (no cable bundled) of the Granit XP 1990iXLR line, intended for high-throughput scanning workflows where ruggedness and range matter. It features a deeply recessed, scratch-resistant scan window to maintain sealing and prevent failure in dusty or dirty environments. The scanner is engineered to operate from −30 °C to 50 °C and is IP67 rated for dust and moisture protection. With its extended read range (up to 24 meters for 100 mil barcodes), it bridges the gap between close-range and long-range scanning without sacrificing speed or accuracy.
Key Features:
- Extreme Ruggedness: Withstands drops up to 3 m (10 ft) and tolerates 7,000 tumbles from 1 m, maintaining reliability in harsh environments.
- Ultra-Long-Range Scanning: Reads UPC barcodes up to 2 m (6.6 ft) and 100 mil codes at distances up to 24 m (79 ft).
- Wide Decoding Capability: Supports a broad set of symbologies including 1D, PDF, 2D, postal codes, Digimarc, and OCR formats.
- Dual Imager Arrays: Near-field imager (1280 × 800) for close scanning, and far-field imager (1920 × 1080) for long-range scanning.
- High Motion Tolerance: Can scan moving barcodes at speeds up to 4,500 mm/s (177 in/s) without dropouts.
- Low Power Consumption: Consumes approx. 2.35 W (470 mA @ 5 VDC) during operation, and 0.5 W in standby.
- Multiple Host Interfaces: Supports USB, RS-232 (TTL), and keyboard wedge modes for flexible integration.
- Dust & Moisture Protection: IP67 and IP65 sealing ensures operation in harsh industrial environments.
- User Feedback Options: Equipped with LEDs, adjustable beeper, and vibration feedback for successful decodes.
- Extended Environmental Range: Operates reliably from –30 °C to +50 °C and tolerates up to 95 % relative humidity.
The 1990IXLR-3-N delivers the ruggedness, range, and scanning versatility required in demanding warehouse and distribution workflows.
