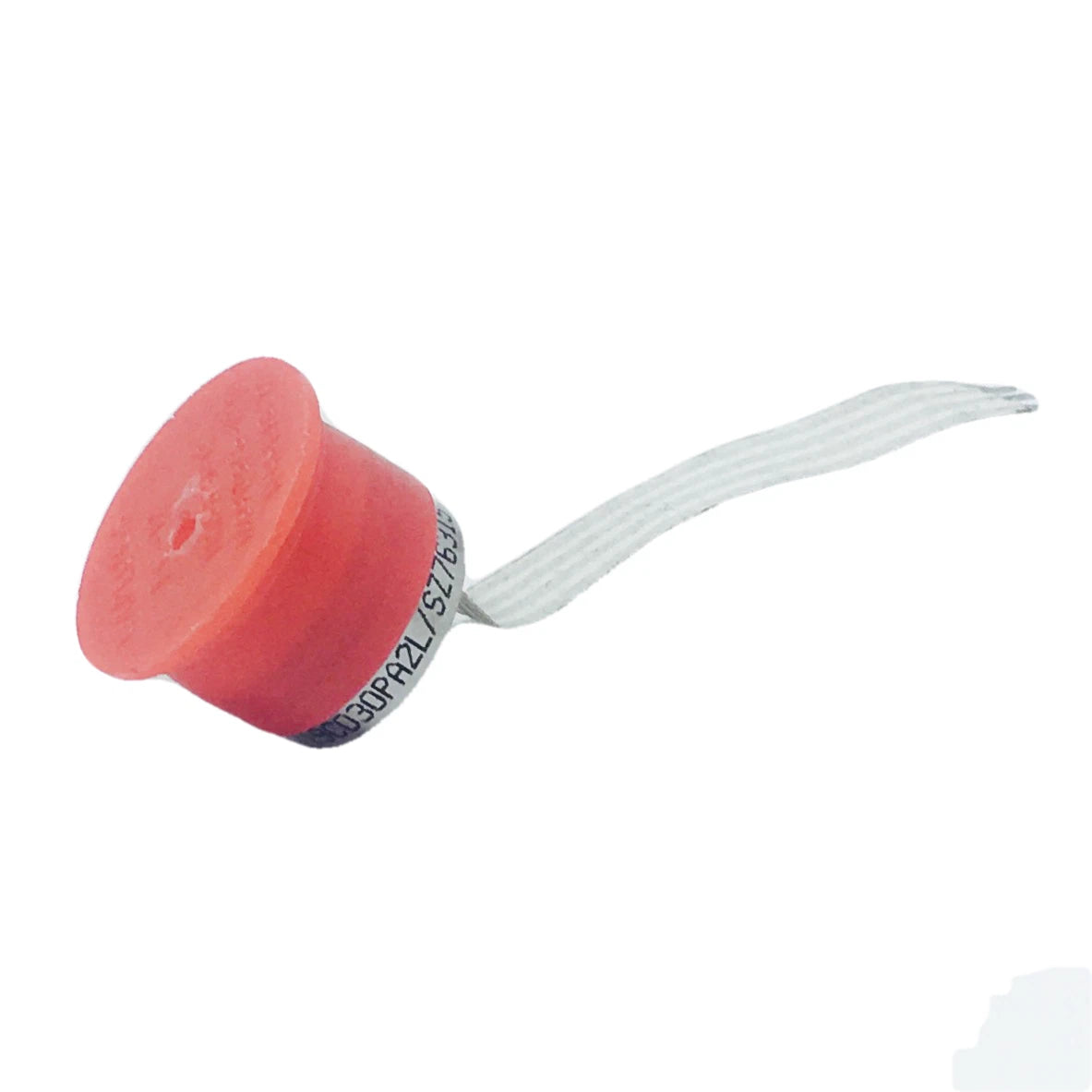

19C030PA2L | Honeywell 19 mm Absolute Pressure Sensor 0–30 PSI Stainless Steel
- Regular price
- $324.00
- Sale price
- $324.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 19C030PA2L
Description
The Honeywell 19C030PA2L is an industrial absolute pressure sensor from the 19 mm series designed for accurate low-pressure measurement up to 30 psi. It features a stainless steel construction and analog millivolt output for integration into monitoring and control systems. This sensor is intended for use in industrial automation, calibration equipment, and process control applications operating in demanding environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Sensors & Switches |
| Part Number | 19C030PA2L |
| Subcategory | Pressure Sensor/Transducer |
| Series | 19 mm Series |
| Pressure Type | Absolute |
| Pressure Range | 0 to 30 psi |
| Output Type | Analog Millivolt |
| Output Signal | 0 mV to 100 mV |
| Housing Material | 316L Stainless Steel |
| Electrical Termination | 4-Pin Connection |
| Accuracy | ±0.25% (typical) |
| Operating Temperature Range | -40°C to +125°C |
| Maximum Pressure | 90 psi |
| Weight | 3.00 lbs |
Information About 19C030PA2L
The 19C030PA2L is part of Honeywell’s 19 mm pressure sensor series, engineered for reliable operation in harsh industrial conditions. It measures absolute pressure relative to a sealed vacuum reference and provides a calibrated analog output signal for precision instrumentation. The sensor is housed in a rugged 316L stainless steel body that isolates the sensing element from process media. With temperature compensation and stable performance characteristics, it is suitable for long-term use in industrial pressure monitoring systems.
Key Features:
-
Absolute Pressure Measurement: Measures 0 to 30 psi relative to a vacuum reference.
-
19 mm Industrial Package: Compact cylindrical design for panel or equipment integration.
-
Stainless Steel Construction: 316L housing for corrosion resistance and media isolation.
-
Analog Millivolt Output: 0 mV to 100 mV signal for precise instrumentation input.
-
Temperature Compensated: Maintains accuracy across wide operating temperature ranges.
-
High Accuracy Rating: ±0.25% typical accuracy for controlled measurement.
-
Wide Operating Temperature: Functional from -40°C to +125°C.
-
Industrial Durability: Designed to withstand vibration and mechanical stress conditions.
The 19C030PA2L delivers the reliability and precision required for industrial pressure sensing and calibration systems.
