1SU41003 | Reliance Electric AC Drive SP500 Series
- Regular price
- $2,782.00
- Sale price
- $2,782.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1SU41003
Description

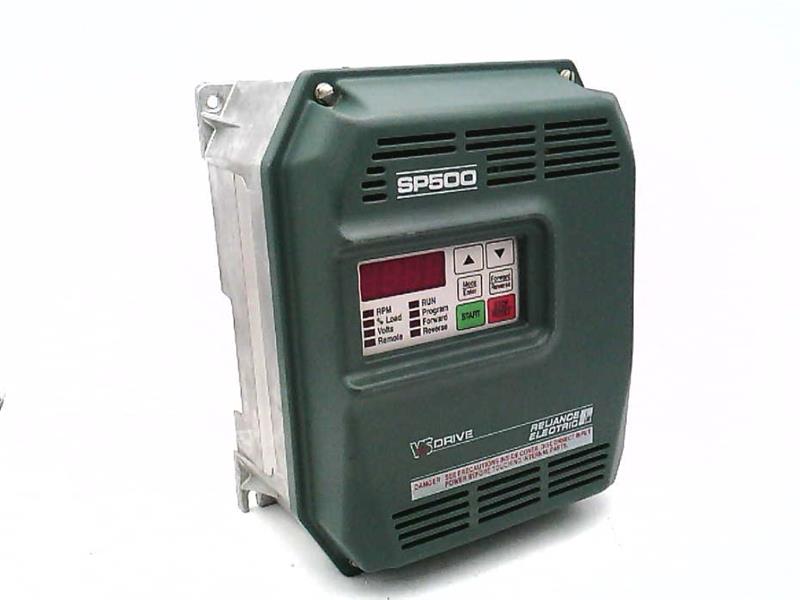

The Reliance Electric 1SU41003 is a 3 HP variable frequency AC drive from the SP500 Series, designed to provide precise motor control and energy-efficient operation in industrial applications. It features a 3-phase input at 380–460 VAC and is housed in a NEMA 1 enclosure.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Reliance Electric |
| Category |
Drives
|
| Part Number | 1SU41003 |
| Series |
SP500
|
| Drive Type | AC Variable Frequency Drive (VFD) |
| Motor Rating | 3 HP |
| Input Voltage | 380–460 VAC (3-Phase) |
| Frequency | 50/60 Hz |
| Input Current | 6.4 A |
| Output Current | 5.3 A |
| Enclosure Rating | NEMA 1 |
| Enclosure Size | Enclosure B |
| Dimensions (H x W x D) | 301.7 mm x 222.3 mm x 160.1 mm (11.88 x 8.75 x 6.3 in) |
| Weight | 5.4 kg (12 lb) |
Information About 1SU41003
The 1SU41003 from the SP500 Series is a compact and reliable AC drive designed to control three-phase induction motors. With a rated input voltage of 380–460 VAC at 50/60 Hz, it delivers 5.3 amps output from a 6.4 amps input, offering effective torque and speed regulation across various applications. The unit supports standard industrial automation requirements and includes basic V/Hz control. It is enclosed in a NEMA 1-rated housing (Enclosure B), suitable for general-purpose indoor installations.
Key Features:
- Motor Power Rating: Supports 3 HP three-phase motors for industrial use.
- Input Specifications: Operates on 3-phase 380–460 VAC input at 50/60 Hz frequency.
- Output Current: Provides 5.3 A output from a 6.4 A input, ensuring energy-efficient control.
- Control Type: Basic V/Hz variable frequency drive (VFD) for speed and torque control.
- Enclosure Type: NEMA 1 housing offers indoor protection against dust and incidental contact.
- Mounting Format: Compact Enclosure B size enables easy integration into electrical panels.
The 1SU41003 offers robust performance and flexible control, ideal for pump, fan, and conveyor applications in industrial environments.
