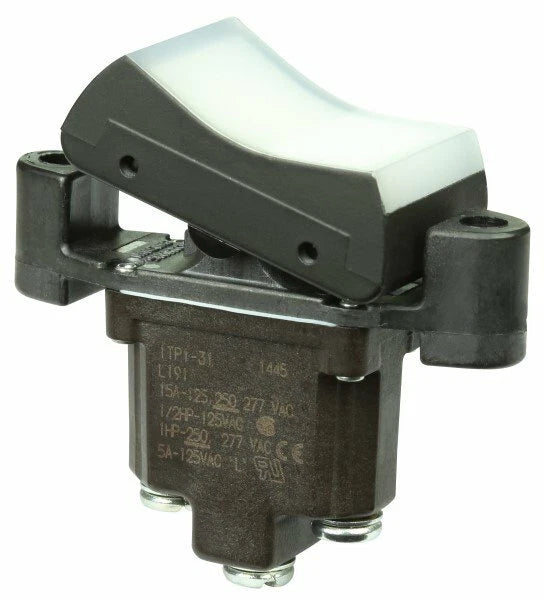

1TP1-31 | Honeywell TP Series SPDT 3-Position Rocker Switch 15A 277VAC
- Regular price
- $432.25
- Sale price
- $432.25
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1TP1-31
Description
The Honeywell 1TP1-31 is a TP Series panel mount rocker switch designed for high-current industrial and commercial control applications. This SPDT three-position switch features an ON-NONE-ON configuration and is rated up to 15A at 277 VAC. Its flush panel mounting design and screw terminal connections provide secure installation and reliable electrical performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Electromechanical Components |
| Part Number | 1TP1-31 |
| Subcategory | Rocker Switches |
| Series | TP Series |
| Contact Form | SPDT |
| Switch Configuration | ON - NONE - ON |
| Current Rating | 15 A |
| Voltage Rating AC | 277 VAC |
| Termination Style | Screw |
| Mounting Style | Flush Panel Mount |
| Actuator Type | Rocker |
| Contact Plating | Silver Cadmium Oxide |
| Body Orientation | Straight |
| Height | 44.45 mm |
| Length | 55.12 mm |
| Width | 22 mm |
| RoHS Compliant | Yes |
| Weight | 1.6 oz |
Information About 1TP1-31
The 1TP1-31 is part of Honeywell’s TP Series rocker switches, engineered for heavy-duty switching in equipment panels and power control systems. It incorporates a single pole double throw (SPDT) contact arrangement with a maintained three-position ON-NONE-ON switching function. The switch is designed for flush panel mounting and utilizes screw terminals for secure field wiring. Built with silver cadmium oxide contacts and a robust housing, it supports demanding electrical loads in industrial and commercial environments.
Key Features:
- SPDT Three-Position Configuration: Provides ON-NONE-ON switching for dual circuit control.
- 15A Current Rating: Supports high-load applications up to 277 VAC.
- Flush Panel Mount Design: Ensures stable and clean installation in equipment panels.
- Screw Terminal Connections: Allows secure and serviceable wiring termination.
- Silver Cadmium Oxide Contacts: Enhances durability and arc resistance under load.
- Non-Illuminated Rocker Actuator: Designed for straightforward manual control.
- Straight Body Orientation: Facilitates alignment in standardized panel layouts.
- TP Series Construction: Suitable for industrial, appliance, and commercial equipment use.
The 1TP1-31 delivers the reliability and precision required for industrial power switching and equipment control applications.
