20-750-1132C-2R | Allen-Bradley PowerFlex 750 24V I/O Module: 1AI, 1AO, 3DI, 2RO
- Regular price
- $432.00
- Sale price
- $432.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 20-750-1132C-2R
Description

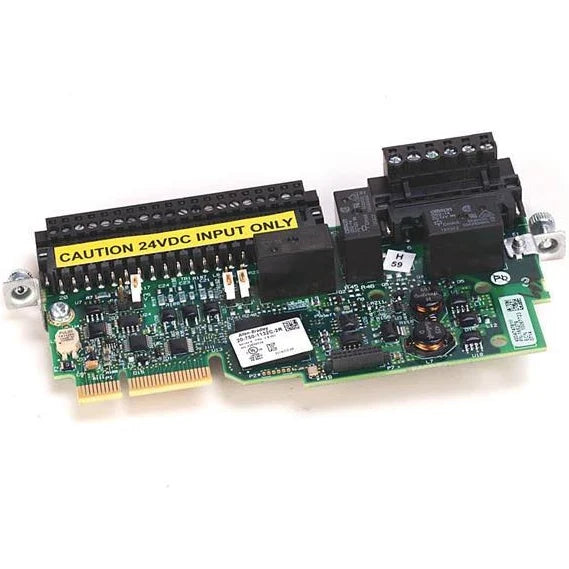

The Allen-Bradley 20-750-1132C-2R is an I/O option module from the PowerFlex 750 series. It operates on 24V DC and provides one analog input, one analog output, three digital inputs, and two relay outputs for flexible drive applications.
Technical Specifications
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Applications | Use with PowerFlex 750 Series For ATEX Atmospheres |
| Standard | CCC,KC |
| Type | I/O Option Kit |
| Voltage | 24 VDC |
| Used With | PowerFlex 750 Series AC Drives |
| Series | A |
Information About 20-750-1132C-2R
The 20-750-1132C-2R is part of the Allen-Bradley PowerFlex 750 series of I/O option modules, developed to expand the control and monitoring capabilities of PowerFlex drives. Designed for ATEX-rated environments, it operates on a 24V DC supply and combines both analog and digital I/O in a single compact unit. The module features one analog input, one analog output, three digital inputs, and two relay outputs, offering versatility for system integration. Built to endure industrial conditions, it operates within a 0–50 °C temperature range, withstands storage from -40 to 70 °C, and tolerates 5–95% non-condensing humidity. With resilience to 15 G shock in 11 ms and weighing just 0.49 lb (0.22 kg), it ensures reliable operation even in demanding installations. Certified to ABS, EAC, RINA, KCC, RCM, Semi F47, c-UL-us, and CE standards, the 20-750-1132C-2R provides global compliance for safety and performance.
Key Features:
- Supply voltage: Operates at 24V DC for stable integration with PowerFlex 750 drives.
- I/O configuration: Includes 1 analog input, 1 analog output, 3 digital inputs, and 2 relay outputs for versatile applications.
- Environmental limits: Operating range of 0–50 °C; storage range of -40 to 70 °C.
- Humidity tolerance: Designed for 5–95% non-condensing environments to ensure reliability.
- Shock resistance: Handles up to 15 G operational shock for rugged performance.
- Weight & design: Compact construction weighing only 0.49 lb (0.22 kg) for easy installation.
- Compatibility: Specifically designed for PowerFlex 750 series drives, including ATEX-rated environments.
- Compliance: Certified to ABS, EAC, RINA, KCC, RCM, Semi F47, c-UL-us, and CE standards.
- Application: Extends control flexibility in industrial automation systems with mixed analog and digital signal handling.
- Safety & reliability: Built to deliver consistent performance in demanding operating conditions.
The 20-750-1132C-2R delivers the reliability and precision required for extending PowerFlex 750 drive functionality in diverse industrial automation applications.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
