Product Description P/N: 20-750-APS
Description

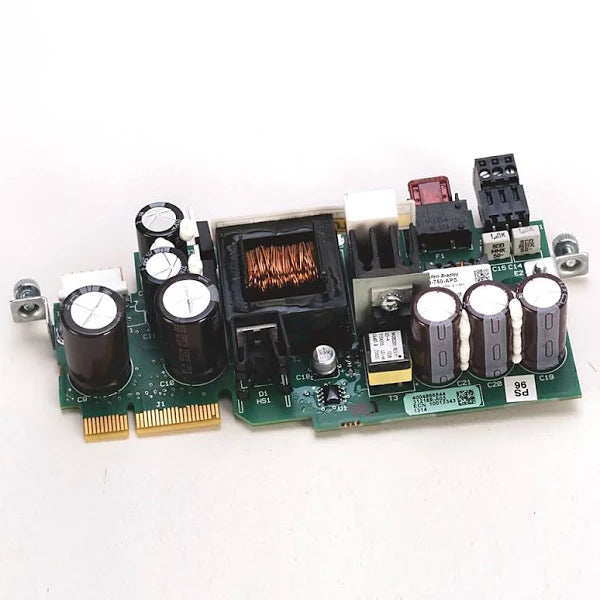

The Allen-Bradley 20-750-APS is an auxiliary power supply module designed for the PowerFlex 750 series drives. It provides a regulated 24-volt power source to support control circuits and is compatible with PowerFlex 753 drives of all frame sizes and PowerFlex 755 frame 1 drives.
Technical Specifications
| Brand | Allen-Bradley |
| Series | PowerFlex 750 |
| Part Number | 20-750-APS |
| Type of Component | Auxiliary Power Supply |
| Voltage Rating | 24 Volts |
| Frame Size Compatibility | 1 to 7 |
| Terminals | AP+, AP-, Sh |
| PowerFlex 753 Compatibility | All Frames |
| PowerFlex 755 Compatibility | Frame 1 |
| Installation Port | Any Option Port (Port 8 Recommended) |
| Connector Cable | Yes (for Frame 1 PowerFlex 755 Drives) |
| Installation | Backplane (Upper Control Pod Brackets) |
| Standards | Low Voltage Directive (LVD), EMC Directive (EMC), Machinery Directive (MD), EN 61800-5-1:2007 |
Information About 20-750-APS
The 20-750-APS is part of the Allen-Bradley PowerFlex 750 series, developed as an auxiliary power supply solution for industrial drives. It delivers 20 watts of continuous, regulated 28 VDC power with a voltage rating of 24 volts and a current rating of 30 amps. The module operates from an AC input range of 90 to 264 volts at 50/60 Hz, supporting both single-phase and three-phase sources. It integrates into PowerFlex 753 drives (all frames) and PowerFlex 755 frame 1 drives, installing through any available option port, with Port 8 recommended for optimal performance. With clear terminal markings (AP+, AP-, Sh), built-in status LEDs, and compliance with EMC, LVD, and MD standards, the 20-750-APS ensures safe and reliable operation in industrial environments.
Key Features:
- Voltage Rating: 24 VDC regulated output with 20 W continuous power for stable drive operation.
- Input Range: Accepts 90–264 VAC single-phase or three-phase at 50/60 Hz for installation flexibility.
- Current Rating: Provides up to 30 A to support control and auxiliary functions.
- Compatibility: Works with PowerFlex 753 drives (all frames) and PowerFlex 755 frame 1 drives.
- Installation: Mounts on backplane upper control pod brackets and can be used in any option port (Port 8 recommended).
- Terminals: Clearly labeled AP+, AP-, and Sh connections for safe wiring.
- Indicators: Equipped with dual LEDs to show power and module operating status.
- Compliance: Meets EMC, LVD, and MD industrial directives for safe use in automation environments.
The 20-750-APS delivers the reliability and precision required for powering Allen-Bradley PowerFlex 750 series drives in industrial automation.
