Part #: 20-750-ENC-1 Manufactured by: Allen-Bradley

20-750-ENC-1 | Allen-Bradley PowerFlex 750 Incremental Encoder Module

Regular price
$445.00
Sale price
$445.00
Regular price
Never Used Surplus
36 in Stock
Shipping calculated at checkout.
Product Overview
Allen-Bradley 20-750-ENC-1 Incremental Encoder Card by Allen-Bradley is used with the Allen-Bradley Powerflex 755 series. ...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 20-750-ENC-1
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
20-750-ENC-1 | Allen-Bradley PowerFlex 750 Incremental Encoder Module
20-750-ENC-1 | Allen-Bradley PowerFlex 750 Incremental Encoder Module
    20-750-ENC-1 | Allen-Bradley PowerFlex 750 Incremental Encoder Module
    20-750-ENC-1 | Allen-Bradley PowerFlex 750 Incremental Encoder Module
20-750-ENC-1 | Allen-Bradley PowerFlex 750 Incremental Encoder Module
20-750-ENC-1 | Allen-Bradley PowerFlex 750 Incremental Encoder Module
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 20-750-ENC-1

Description / Specifications

Description

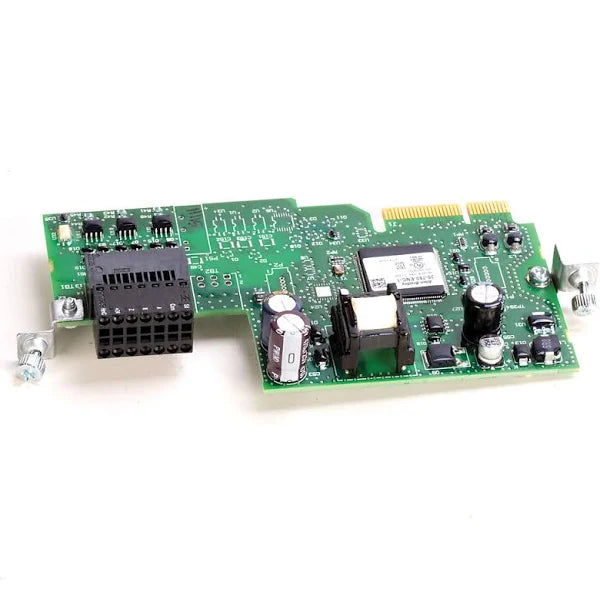

The 20-750-ENC-1 is an incremental encoder module. This module is used with the PowerFlex 753, PowerFlex 755, PowerFlex 755TL and PowerFlex 755TR. It supports single ended or differential operation and constant current sink operation. It has a maximum input operating voltage of 5V DC min to 15V DC, sourcing, 10 mA.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 20-750-ENC-1
Compatible Drives PowerFlex 753, PowerFlex 755, PowerFlex 755TL, PowerFlex 755TR
Operating mode Single-channel mode; Dual channel mode
Maximum Input Frequency 250 kHz
Maximum cable length @ 12VDC 183 m (600 ft)
Maximum cable length @ 5VDC 30 m (100 ft)
External power supported
Current consumption 250 mA
Maximum high-state voltage 0.4 VDC
Minimum high state voltage 3.5 VDC
Input voltage 5-15VDC
Product Family PowerFlex 750
Description Incremental encoder module
Product Type Incremental Encoder Card
Used with Powerflex 755
Power 24V DC
Series PowerFlex 750





Information About 20-750-ENC-1

The Allen-Bradley 20-750-ENC-1 is an incremental encoder module that is used in compatibility with The PowerFlex 753, PowerFlex 755, PowerFlex 755TL and PowerFlex 755TR adjustable frequency AC drives. This encoder module provides the capability of implementing loop positioning control which is one of the supported control capability of the PowerFlex 700 class drives.

This encoder module is specifically compatible for use with installation in PowerFlex 753 Port 4 and 5 for Frame A drives; and Ports 4, 5 and 6 for Frame 2 and higher drives. It may also be used with PowerFlex 755 drives and installed to ports 4 and 5 for Frame 1 drive and ports 4,5,6 and 7 for PowerFlex Frame 2 drives and higher. If used with PowerFlex 755T, it may be installed in ports 4,5,6,7 and 8 of Frame 5-15 drives.

The 20-750-ENC-1 supports Single-Ended or differential operation. It has a constant current sink operation with approximate consumption of 10 mA. The modules operates as an input voltage range of 5VDC - 15VDC with sourcing current consumption of 10 mA. The encoder’s channel has a minimum high state voltage of 3.5VDC while the maximum low state voltage is 0.4 VDC. Wire connection to the encoder module must not be more than 30 m (100 ft) at 5V, 183 m (600 ft) at 12V. It is compatible with input devices that has a switching frequency of 250 kHz. This encoder module supports Powered by Drive and Separately Powered Encoder supply configuration. It has a TB1 terminal that is composed of 14-pins for wiring of signal and supply voltage.

The 20-750-ENC-1 module is a single incremental encoder feedback option module. It can be used with PowerFlex 753 and PowerFlex 755 drives in the Allen-Bradley PowerFlex 750 series. The specifications for the module input include the use of differential or single-ended operation or constant current sink operation at approximately 10 milliamps. The 20-750-ENC-1 module supports a minimum of 5 Volts DC to a maximum of 15 Volts DC sourcing voltage at 10 milliamps. The minimum high-state voltage is 3.5 Volts DC and the maximum low-state voltage is 0.4 Volts DC. The maximum cable lengths supported are 30 meters at 5 Volts DC and 183 meters at 12 Volts DC. The maximum input frequency can be 250 kilohertz. When not in use, the 20-750-ENC-1 should be kept in an environment where the ambient temperature range is between -40 and 70 degrees Celsius. To prevent damage, the module should not be installed in a drive which is installed in a corrosive environment. The recommended range for the relative non-condensing humidity around the module is from 5 to 95%. The module is rated by the CE, ABS, SEMI F47, KCC, EAC, RCM, and RINA standards.


Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The 20-750-ENC-1 is an incremental encoder module. This module is used with the PowerFlex 753, PowerFlex 755, PowerFlex 755TL and PowerFlex 755TR. It supports single ended or differential operation and constant current sink operation. It has a maximum input operating voltage of 5V DC min to 15V DC, sourcing, 10 mA.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 20-750-ENC-1
Compatible Drives PowerFlex 753, PowerFlex 755, PowerFlex 755TL, PowerFlex 755TR
Operating mode Single-channel mode; Dual channel mode
Maximum Input Frequency 250 kHz
Maximum cable length @ 12VDC 183 m (600 ft)
Maximum cable length @ 5VDC 30 m (100 ft)
External power supported
Current consumption 250 mA
Maximum high-state voltage 0.4 VDC
Minimum high state voltage 3.5 VDC
Input voltage 5-15VDC
Product Family PowerFlex 750
Description Incremental encoder module
Product Type Incremental Encoder Card
Used with Powerflex 755
Power 24V DC
Series PowerFlex 750





Information About 20-750-ENC-1

The Allen-Bradley 20-750-ENC-1 is an incremental encoder module that is used in compatibility with The PowerFlex 753, PowerFlex 755, PowerFlex 755TL and PowerFlex 755TR adjustable frequency AC drives. This encoder module provides the capability of implementing loop positioning control which is one of the supported control capability of the PowerFlex 700 class drives.

This encoder module is specifically compatible for use with installation in PowerFlex 753 Port 4 and 5 for Frame A drives; and Ports 4, 5 and 6 for Frame 2 and higher drives. It may also be used with PowerFlex 755 drives and installed to ports 4 and 5 for Frame 1 drive and ports 4,5,6 and 7 for PowerFlex Frame 2 drives and higher. If used with PowerFlex 755T, it may be installed in ports 4,5,6,7 and 8 of Frame 5-15 drives.

The 20-750-ENC-1 supports Single-Ended or differential operation. It has a constant current sink operation with approximate consumption of 10 mA. The modules operates as an input voltage range of 5VDC - 15VDC with sourcing current consumption of 10 mA. The encoder’s channel has a minimum high state voltage of 3.5VDC while the maximum low state voltage is 0.4 VDC. Wire connection to the encoder module must not be more than 30 m (100 ft) at 5V, 183 m (600 ft) at 12V. It is compatible with input devices that has a switching frequency of 250 kHz. This encoder module supports Powered by Drive and Separately Powered Encoder supply configuration. It has a TB1 terminal that is composed of 14-pins for wiring of signal and supply voltage.

The 20-750-ENC-1 module is a single incremental encoder feedback option module. It can be used with PowerFlex 753 and PowerFlex 755 drives in the Allen-Bradley PowerFlex 750 series. The specifications for the module input include the use of differential or single-ended operation or constant current sink operation at approximately 10 milliamps. The 20-750-ENC-1 module supports a minimum of 5 Volts DC to a maximum of 15 Volts DC sourcing voltage at 10 milliamps. The minimum high-state voltage is 3.5 Volts DC and the maximum low-state voltage is 0.4 Volts DC. The maximum cable lengths supported are 30 meters at 5 Volts DC and 183 meters at 12 Volts DC. The maximum input frequency can be 250 kilohertz. When not in use, the 20-750-ENC-1 should be kept in an environment where the ambient temperature range is between -40 and 70 degrees Celsius. To prevent damage, the module should not be installed in a drive which is installed in a corrosive environment. The recommended range for the relative non-condensing humidity around the module is from 5 to 95%. The module is rated by the CE, ABS, SEMI F47, KCC, EAC, RCM, and RINA standards.


Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.
