20-750-ENETR | Allen-Bradley PowerFlex 750 Dual-port EtherNet/IP Module

Description

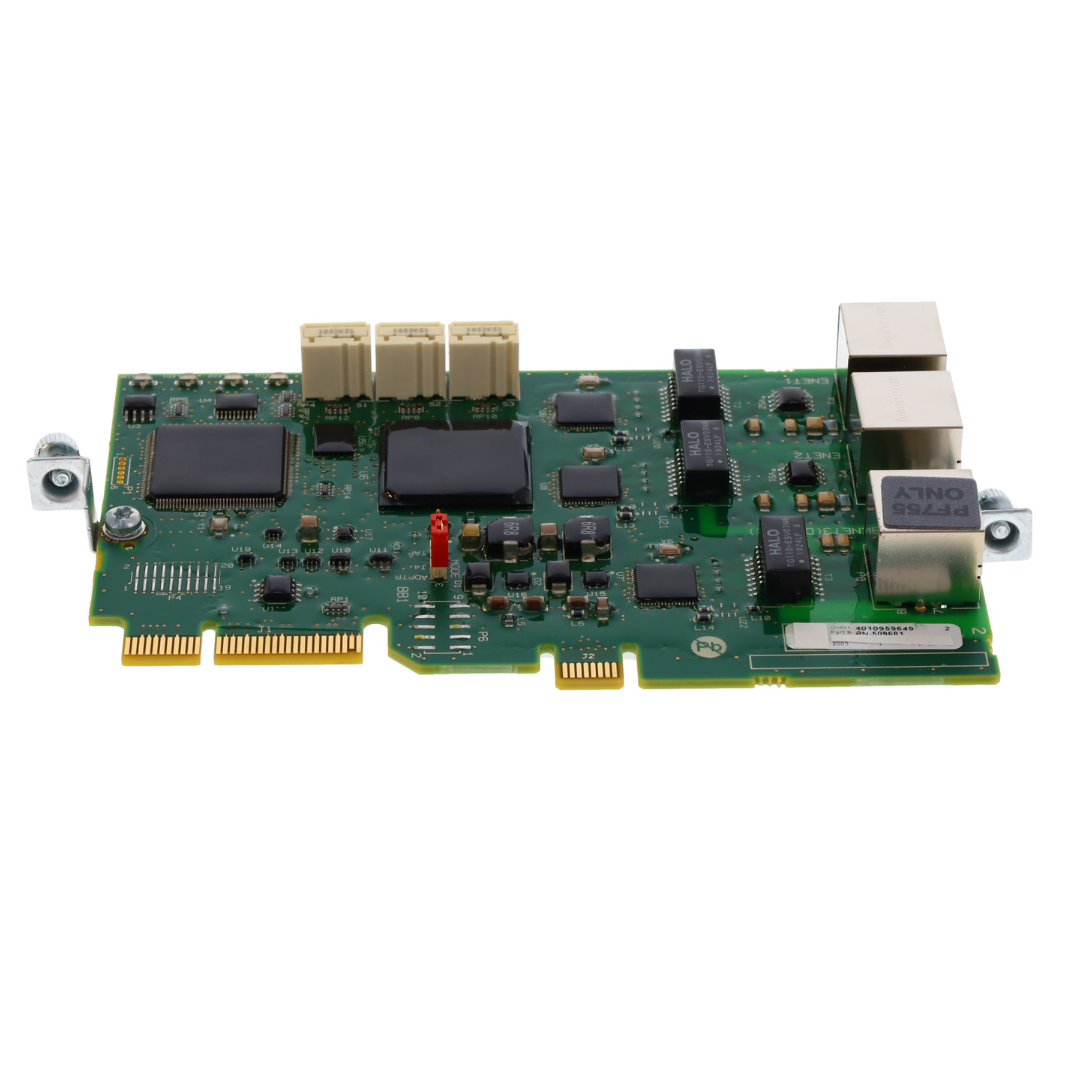

The Allen-Bradley 20-750-ENETR is a PowerFlex 750 Dual Port Ethernet /IP Option module. This module has Two (2) Ethernet I/P ports, supporting 10 Mbps Full-duplex, 10 Mbps Half-duplex, 100 Mbps Full-duplex, or 100 Mbps Half-duplex communication rate. This module is capable of operating Tap or Adapter mode.

Technical Specifications

Information About 20-750-ENETR

The 20-750-ENETR is A PowerFlex component. This module is a Dual Ethernet/IP option adapter that directly installs to the PowerFlex drive. It supports Adapter and Tap mode, both capable of 10 Mbps Full-duplex, 10 Mbps Half-duplex, 100 Mbps Full-duplex, or 100 Mbps Half Duplex communication rates.

Up to Thirty (30) Ethernet connections can be made with this option adapter module. Both modes support 16 simultaneous MSG instruction connections. In adapter mode, one exclusive owner I/O connection is included.

The 20-750-ENETR supports system protocol which is Drive DPI protocol with data rate of 500 Kbps. This adapter may be connected in a variety of topologies such as star, linear, or device-level ring (DLR) network topologies.

The 20-750-ENETR also supports Integrated motion over Ethernet for the PowerFlexDrive series and the option adapter is configured in Tap mode.

The 20-750-ENETR has embedded Electronic Data Sheets (EDS). This means, EDS files are automatically loaded and the option adapter module may be easily recognized in the Ethernet I/P network.This option adapter module has embedded switches for setting the IP addresses. It is also compatible with the stand-alone tool BOOTP-DHCP. Status indicators are also provided for monitoring the module’s operation.

The 20-750-ENETR environmental specifications include an operating temperature of -10…+50 °C (14…122 °F). If this module is intended to serve as backup, thus a spare module, storage temperature requirement is -40…+85 °C (-40…+185 °F). Both environments shall have 5…95% noncondensing.

The Allen-Bradley 20-750-ENETR module and the entire series of PowerFlex 755 modules come preinstalled with predictive diagnostics and DeviceLogix control technology. Other features of these drives include an Ethernet port that is designed for communication. The PowerFlex 755 drives are designed to be used to control permanent magnet motors. However, they also require proper configuration so that they can offer adequate protection against operations that are not stable by using CM or Power jumpers to help select between solid and non-solid grounds. It has four status indicators which show the mode of operation and network communication.

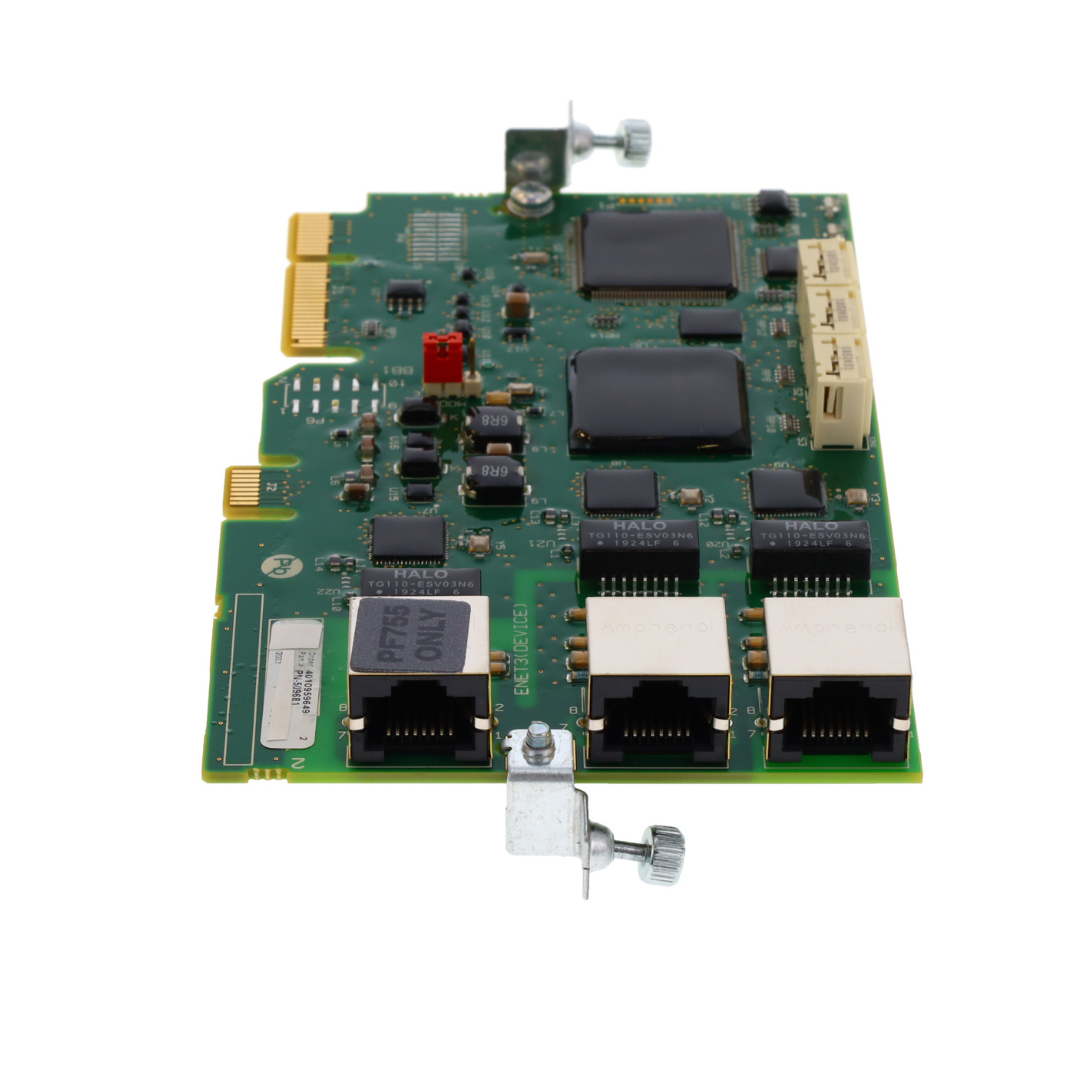

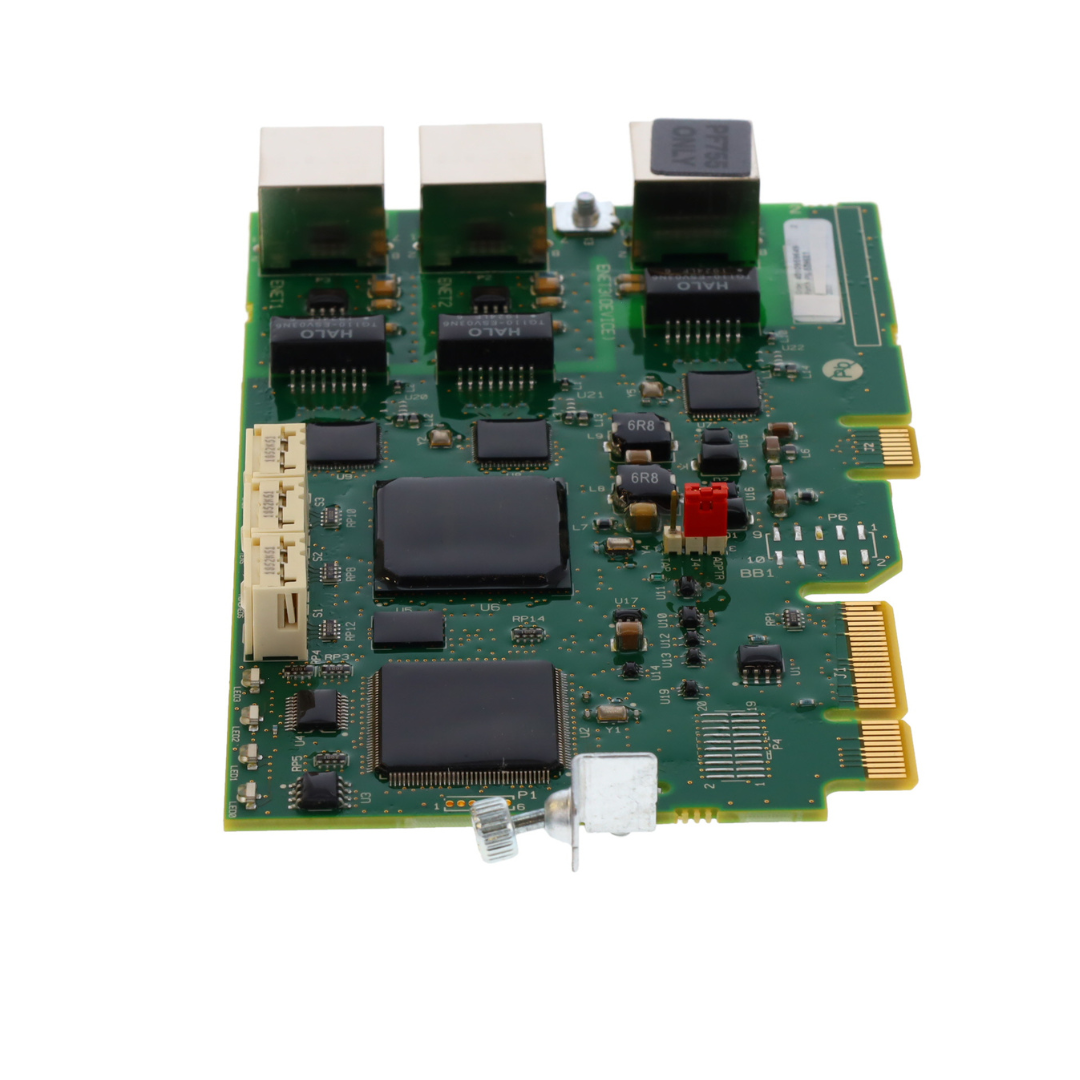

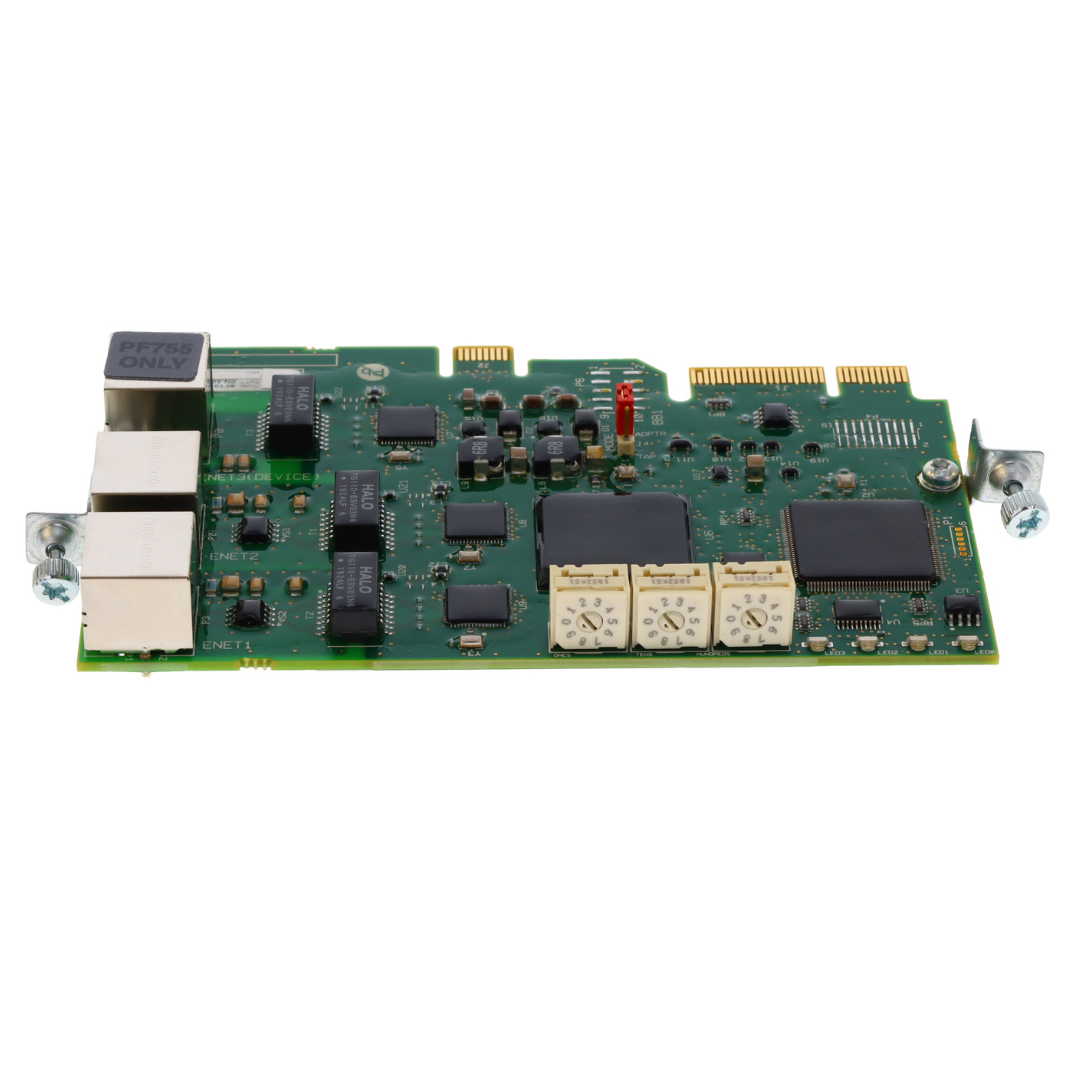

The 20-750-ENETR module also has Node address switches that set the network node address of the option module. Additional features of the 20-750-ENETR module include an operating mode jumper that selects the mode of operation for the module as well as the ENET1 and ENET2 network ports which help with the transfer of data on the 100Base-TX Ethernet connections.
