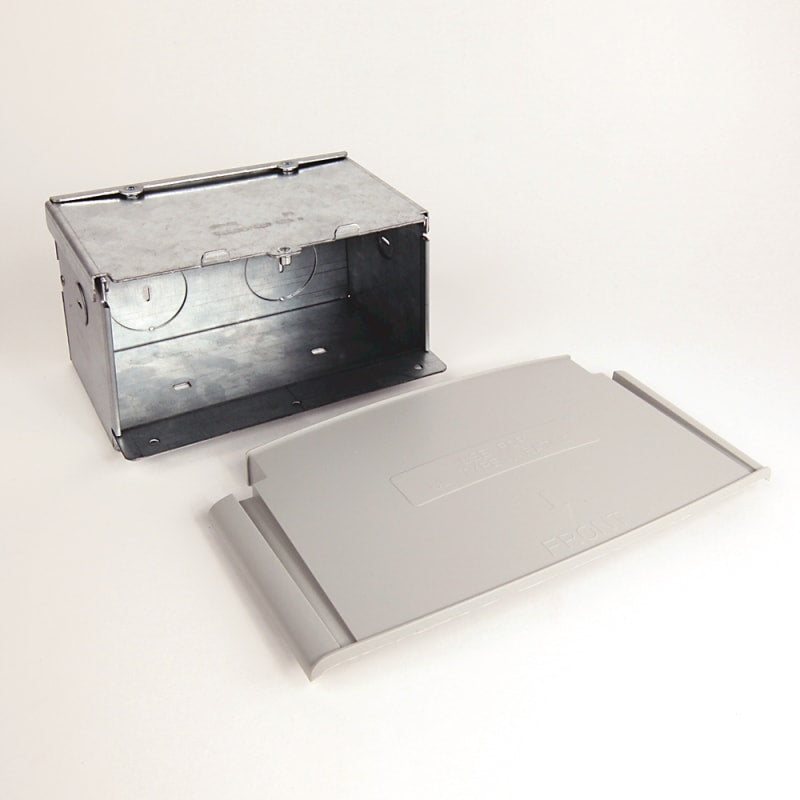

20-750-NEMA1-F5 | Allen-Bradley Conduit Box Kit
- Regular price
- $524.00
- Sale price
- $524.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 20-750-NEMA1-F5
Description
The Allen-Bradley 20-750-NEMA1-F5 is a conduit box kit designed for PowerFlex 750-Series drives (Frame 5), enabling conversion from open-type to a NEMA Type 1 enclosure for indoor use.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Panel Accessories
|
| Part Number | 20-750-NEMA1-F5 |
| Subcategory |
Enclosure Accessory/Kit
|
| Frame | Frame 5 |
| Standard |
GOST,KC
|
|
Mounting Type
|
Floor Mount |
|
Weight
|
3.09 lbs |
Information About 20-750-NEMA1-F5
The Allen-Bradley 20-750-NEMA1-F5 is a conduit box kit designed specifically for Frame 5 PowerFlex 750-Series AC drives, including the PowerFlex 753 and 755 models. This kit facilitates the conversion of standard open-type drives into NEMA Type 1-rated enclosures, making them suitable for indoor installations where protection against dust and incidental contact is essential. It ensures compliance with UL and NEC wiring practices and supports safer, cleaner drive cabinet installations in industrial environments.
Key Features:
Enclosure Conversion:
-
Converts open-style PowerFlex 750-Series drives to NEMA Type 1-rated enclosures
-
Ensures the drive meets requirements for indoor electrical cabinet mounting
-
Provides secure conduit entry for both power and control wiring
Compatibility:
-
Designed for Frame Size 5 of the PowerFlex 750-Series drives
-
Compatible with PowerFlex 753 and PowerFlex 755 drive models in the same frame class
Mechanical Design:
-
Rugged metal housing ensures long-term durability and proper mechanical fit
-
Includes necessary mounting hardware and gaskets for easy, reliable installation
-
Ensures clean separation and strain relief for power and signal wiring
Protection and Compliance:
-
Delivers NEMA Type 1 protection: guards against dust, falling dirt, and incidental contact
-
Helps meet UL, CSA, and NEC wiring and installation standards
Installation Benefits:
-
Panel-mount compatible
-
Speeds up field installations and retrofits by simplifying enclosure upgrades
-
Clean, professional finish for industrial control panels
The Allen-Bradley 20-750-NEMA1-F5 conduit box kit provides a reliable and compliant solution for converting PowerFlex 750-Series Frame 5 drives to NEMA Type 1 enclosures. Designed for indoor, panel-mounted applications, it ensures safe conduit entry, environmental protection, and straightforward integration into industrial control cabinets. This kit is an essential accessory for drive installations requiring clean, enclosed, and code-compliant wiring access.
