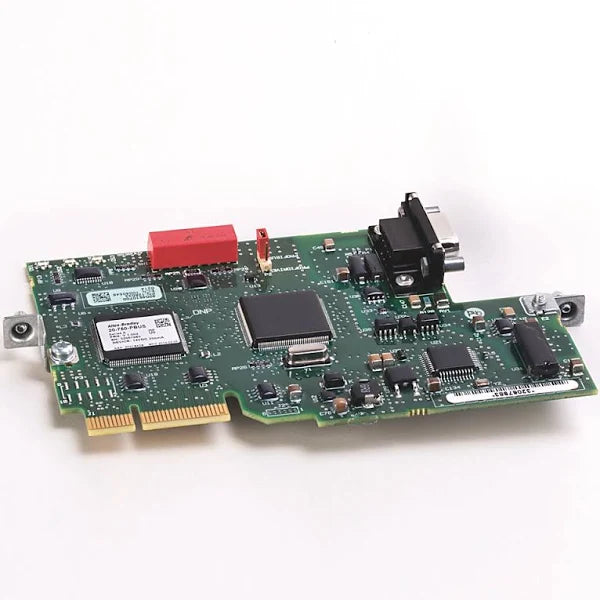

20-750-PBUS | Allen-Bradley PowerFlex 750 PROFIBUS DPV1 Communication Module
- Regular price
- $317.00
- Sale price
- $317.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 20-750-PBUS
Description
The Allen-Bradley 20-750-PBUS is a PROFIBUS DPV1 communication adapter for PowerFlex 750 series drives. It enables integration into PROFIBUS networks with support for acyclic messaging, master-slave hierarchy, and user-defined fault actions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Industrial Automation and Controls |
| Part Number | 20-750-PBUS |
| Subcategory | Communication Modules |
| Series | PowerFlex 750 |
| Type | PROFIBUS DPV1 Communication Module |
| Supported Protocol | PROFIBUS DPV1 |
| Suitable For | PowerFlex 753, PowerFlex 755, PowerFlex 755T Drives |
| Communication Functions | Acyclic messaging, master-slave hierarchy |
| Datalink Capability | Parameter-configured 32-bit Datalinks |
| Fault Handling | User-defined fault actions |
| Mounting Type | Internal drive mounting |
| Configuration Software | Connected Components Workbench, Studio 5000 Logix Designer |
| Dimensions | 130 mm (L) × 83 mm (W) × 16 mm (H) |
| Special Features | Single-node PROFIBUS support |
| Certifications | CE, UL, cUL, KC, CCC, C-TICK, GOST |
| Operating Voltage | Powered internally by host drive |
| Operating Temperature | 0°C to 55°C (typical drive environment) |
| Protection Rating | Installed inside drive chassis |
| Weight | Approx. 0.15 kg (0.33 lb) |
Information About 20-750-PBUS
The 20-750-PBUS is part of the Allen-Bradley PowerFlex 750 series communication option modules, designed to provide PROFIBUS DPV1 connectivity for PowerFlex 753, 755, and 755T drives. It allows seamless data exchange between drives and PROFIBUS-based control systems, supporting parameter-configured 32-bit Datalinks for flexible I/O mapping. The module is internally mounted in the drive and includes features such as acyclic messaging support for advanced diagnostics and process data handling. With configuration through Connected Components Workbench or Studio 5000 Logix Designer, it ensures straightforward setup and integration into industrial automation networks. Built for reliable communication, the 20-750-PBUS enhances drive connectivity and interoperability in PROFIBUS-controlled environments.
Key Features:
- Network Support: Provides PROFIBUS DPV1 communication for PowerFlex 750 series drives.
- Data Handling: Supports parameter-configured 32-bit Datalinks for flexible I/O mapping.
- Messaging: Acyclic messaging capability for advanced diagnostics and process monitoring.
- Operation Mode: Operates on a master-slave hierarchy to ensure reliable communication.
- Fault Management: Allows user-defined fault actions for improved system safety.
- Mounting: Internal mounting within the drive for secure installation.
- Configuration Tools: Compatible with Connected Components Workbench and Studio 5000 Logix Designer.
- Compatibility: Works with PowerFlex 753, PowerFlex 755, and PowerFlex 755T drive products.
The 20-750-PBUS delivers the reliability and precision required for PROFIBUS communication in advanced automation systems.
