Product Description P/N: 20-750-S4
Description

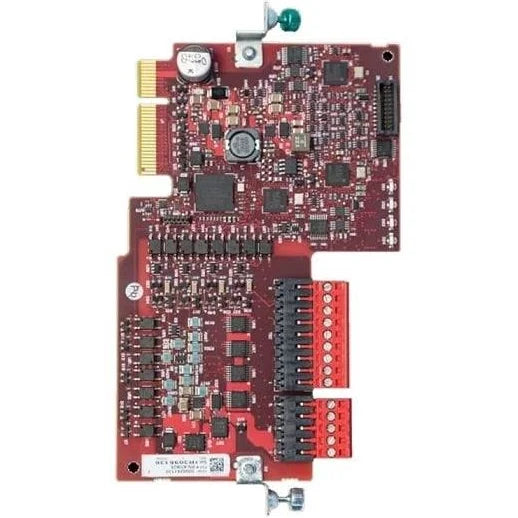

The Allen-Bradley 20-750-S4 is a PowerFlex 755/755T safety module designed to provide integrated safety functions. It supports Safe Torque Off (STO), SS1, and safe brake control, ensuring compliance with industrial safety standards.
Technical Specifications
| Brand | Allen-Bradley |
| Series | PowerFlex 755 |
| Part Number | 20-750-S4 |
| Product Type | Safety Module |
| Safety Feature | Safe Torque Off (STO), SS1 |
| Compatibility | PowerFlex 755/755T Drives |
| Input Type | Current Sinking Inputs |
| ON-state Voltage | 11 to 30 Volts DC |
| OFF-state Voltage | -3 to 5 Volts DC |
| Minimum OFF-state Current | 2 milliamps |
| Input Reaction Time | 10 milliseconds |
| Maximum OFF-state Current | 1.5 milliamps |
Information About 20-750-S4
The 20-750-S4 is part of the Allen-Bradley PowerFlex 755 family, offering advanced drive-based safety functions for critical motor control applications. It enables STO, timed SS1, monitored SS1, and safe brake control, with support for controller-based safety through GuardLogix 5580 and Compact GuardLogix 5380 controllers. Designed as a current sinking input module, it operates with on-state voltages between 11–30V DC, off-state voltages of -3 to 5V DC, and features a fast input reaction time of less than 10 ms. The module removes power from drive output devices to safely disconnect motor torque, providing compliance with IEC 61508 and SIL-rated safety requirements. While it ensures safety disconnection, it is not intended as a control option for frequent drive start/stop operations. Certified by UL, CE, TÜV, and C-Tick, the 20-750-S4 integrates seamlessly with PowerFlex 755/755T drives for reliable safety compliance in automation environments.
Key Features:
- Safety functions: Provides Safe Torque Off (STO), timed SS1, monitored SS1, and safe brake control for compliant motor safety.
- Compatibility: Designed for PowerFlex 755 and 755T drive platforms, with GuardLogix 5580 and Compact GuardLogix 5380 controller integration.
- Input type: Current sinking inputs with defined electrical ranges for stable safety performance.
- Electrical characteristics: Operates with on-state voltage of 11–30V DC, off-state range of -3 to 5V DC, minimum on-state current 2 mA, maximum off-state current 1.5 mA.
- Reaction speed: Input reaction time under 10 ms for rapid safety response.
- Standards compliance: Certified by UL, CE, TÜV, and C-Tick for global safety approvals.
- Application scope: Ensures safe motor torque removal in compliance with IEC 61508 and SIL standards.
- Operational precaution: Not recommended as a routine start/stop control method due to potential residual mechanical forces.
- Integration: Works seamlessly with other Allen-Bradley safety devices in automated systems.
The 20-750-S4 delivers the reliability and precision required for drive-based safety, ensuring compliance and protection in Allen-Bradley PowerFlex 755/755T systems.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
