Product Description P/N: 20-HIM-C3S

Description / Specifications

Description

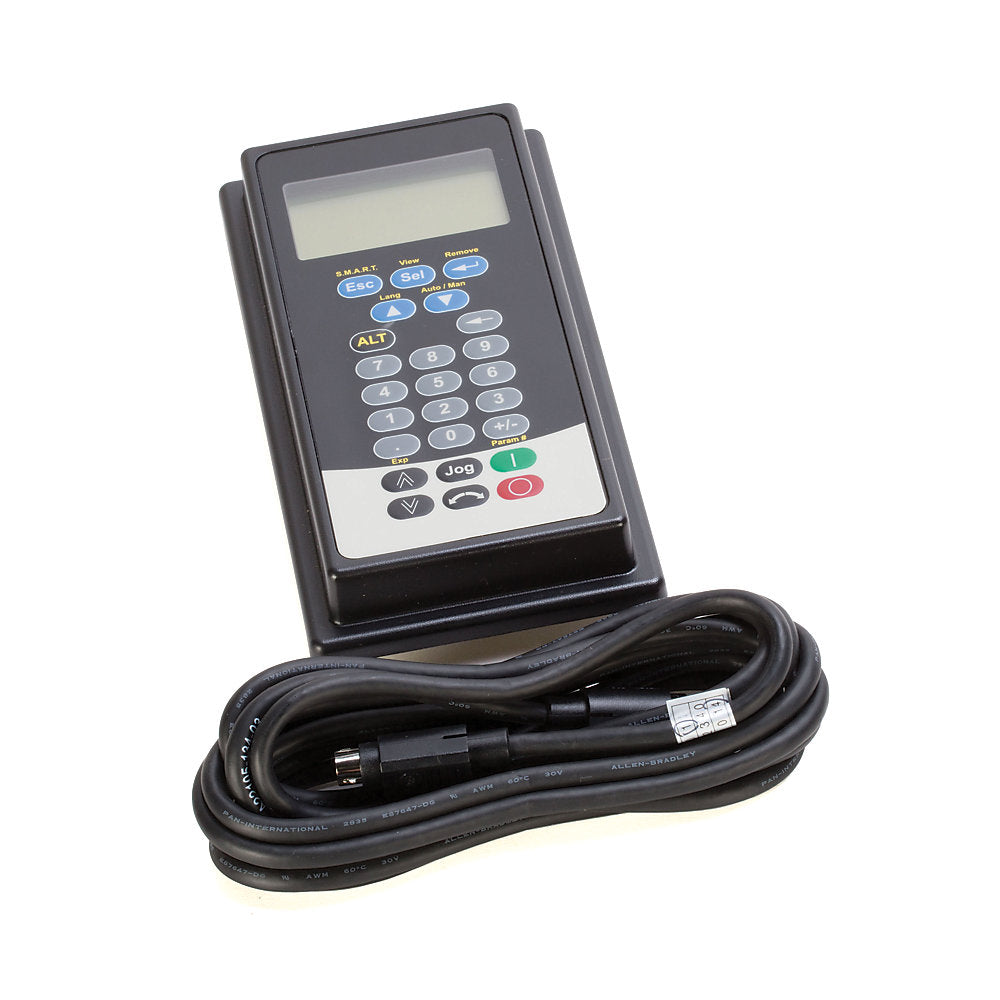

The Allen-Bradley 20-HIM-C3S is a Human Interface Module (HIM). This module is specifically a Remote-Panel mount LCD display HIM that is compatible for use with the PowerFlex 7 class drives. It has one (1) Drive Peripheral Interface (DPI) port that supports 125 Kbps or 500 Kbps transfer rate. It has a current draw of 140 milliamperes @ 12 Volts DC, supplied by the host drive.



Technical Specifications



Brand Allen-Bradley
Part Number/Catalog No. 20-HIM-C3S
Non-operating vibration 5 g @ 5 Hz…2 kHz
Operating Vibration 2.5 g @ 5 Hz…2 kHz
Non-operating Temperature -40…85 °C (-40…185 °F)
Operating Temperature 0…50 °C (32…122 °F)
Communication cable 1202-C03; 1202-C10; 1202-C30 and 1202-C90
Protection rating IP66 (NEMA 4X/12)
Communication rate 125 Kbps / 500 Kbps
Communication port Drive Peripheral Interface (DPI)
Backplane current draw 140 mA @ 12 VDC
Module Type Human Interface Module (HIM)
Manufacturer Rockwell Automation
Relative humidity 5…95% noncondensing
Series PowerFlex 700
Data Rates 125 Kbps or 500 Kbps
Protocol Drive Peripheral Interface
Ambient Operating Temperature 0 to 50 degrees Celsius
Ambient storage temperature -40 to 85 degrees Celsius
Vibration resistance (operating) 2.5 G at 5 Hertz
Vibration resistance (None operating) 5 G at 5 Hertz





Information About 20-HIM-C3S

The 20-HIM-C3S interface is a full numeric interface manufactured by Allen-Bradley. The 20-HIM-C3S interface features the Drive Peripheral Interface protocol and it comes with data rates 125 Kbps or 500 Kbps. The current consumption is rated as 140 milliamps at 12 Volts DC supplied by the host device. To ensure the proper functioning of the unit, provide the proper environmental conditions. These conditions include an ambient operating temperature range of 0 to 50 degrees Celsius and an unused device should be stored in an ambient storage temperature of -40 to 85 degrees Celsius. The 20-HIM-C3S interface features a relative humidity range of 5 to 95%, non-condensing. It is important to make sure that the 20-HIM-C3S interface is not installed in an area where the ambient atmosphere contains any volatile or corrosive gasses. If the component is going to be stored for a prolonged period, ensure that the storage environment is free from corrosion. During operation, the vibration resistance is 2.5 G at 5 Hertz while at rest, the vibration resistance is 5 G at 5 Hertz. The 20-HIM-C3S interface is a Category C2 product as per the IEC 61800-3 standards. Therefore, if it is used in a domestic environment, the component may experience radio interference and supplementary interference mitigation measures may be required. The 20-HIM-C3S interface features a full numeric keypad with fully-integrated navigation keys for easy configuration. The component features intuitive data access with new menu structures for increased operating efficiency. The 20-HIM-C3S interface supports customizable drive monitoring items that can be displayed as a list on the process screen or as individual screens. The unit comes with a 3-meter long cable that supports remote installation.

The Allen-Bradley 20-HIM-C3S is a PowerFlex 7 class drive accessory module. This module is an IP66 (NEMA 4X/12) Human Interface Module (HIM) that features a Liquid Crystal Display (LCD) screen that is designed for remote panel mounting. This module does not require an external power supply as power is supplied locally by the host drive.

The 20-HIM-C3S comes with a Drive Peripheral Interface (DPI) which supports transfer rates of 125 Kbps or 500 Kbps. Additionally, this drive comes with a 3-meter communication cable for connection to the host drive with catalog number 1202-C30. Additionally, this module supports accessory cables such as 1202-C03; 1202-C10; 1202-C90. Other accessories available to this module are the NEMA Type 1 Bezel Kit with catalog number 20-HIM-B1; DPI cable kit with connector, tools and 100 meter cable with catalog number 1202-CBL-KIT-100M; DPI Cable connector kit with catalog number 1202-TB-KIT-SET and DPI/SCANPORT one-to-two port splitter cable with catalog number 1203-S03.

The 20-HIM-C3S is specifically compatible for use with PowerFlex 70, PowerFlex 700, PowerFlex 700H, PowerFlex 700 S, and PowerFlex 700L. This Human Interface Module (HIM) comes with a set of keypad assembly which includes complete numerical keys, navigation and confirmation buttons.

The 20-HIM-C3S provides drive operators the capability of configuring, operating and troubleshooting of the drive locally. With a remote mounted type HIM such as the 20-HIM-C3S, users do not need to open the enclosure to access this module. In some applications, this design is practical as it enables the motor to be highly serviceable without much interference to the operation.
