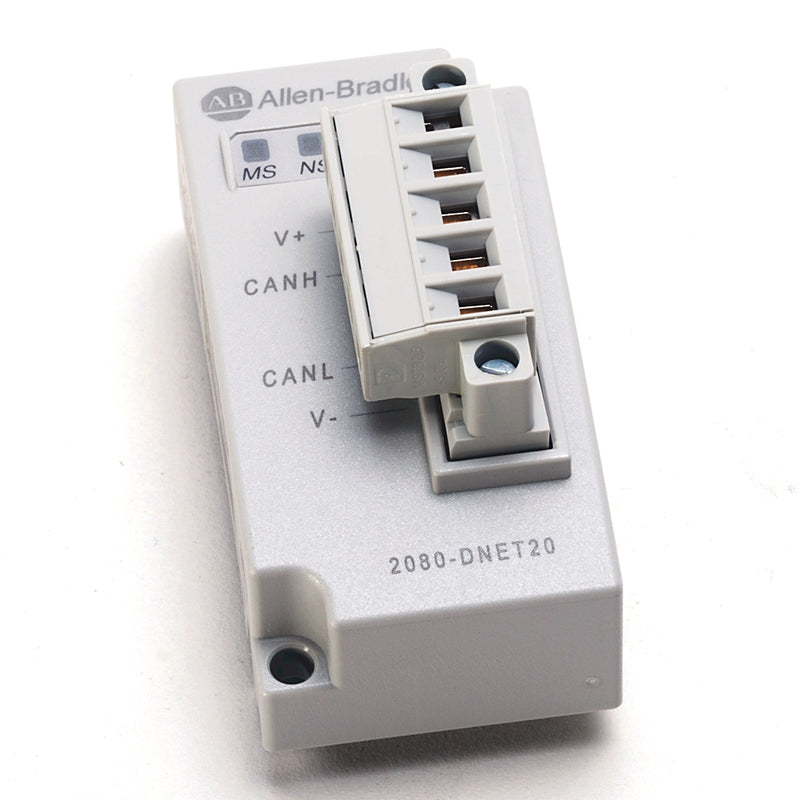

2080-DNET20 | Allen Bradley DeviceNet Communication Plug-In Module

Description

The Allen-Bradley 2080-DNET20 is a DeviceNet Communication Plug-In Module designed for use with Micro800 controllers. It enables seamless communication with DeviceNet networks, providing efficient connectivity and data exchange in industrial automation systems.

Technical Specifications

Information About 2080-DNET20

The Allen-Bradley 2080-DNET20 is a DeviceNet Communication Plug-In Module designed to enable communication between Micro800 controllers and DeviceNet networks. It provides a compact and cost-effective solution for integrating Micro800 controllers into DeviceNet-based systems, allowing them to communicate with other industrial devices like sensors, actuators, and drives.

Key Features and Specifications:

• Model: 2080-DNET20
• Type: DeviceNet Communication Plug-In Module
• Compatibility:
  • Designed for use with Micro800 controllers (e.g., Micro830, Micro850)
  • Extends communication capabilities of Micro800 controllers to DeviceNet networks
• DeviceNet Network Support:
  • Supports DeviceNet protocols for data exchange with field devices
  • Enables efficient control and monitoring of devices within the network
• Baud Rates: Supports standard DeviceNet baud rates of 125 kbps, 250 kbps, and 500 kbps
• Connections:
  • Provides one 5-pin DeviceNet connector for network connection
  • Facilitates easy integration into DeviceNet systems
• Node Addressing: Configurable DeviceNet node address for flexible network integration
• Diagnostics:
  • Diagnostic LEDs for quick troubleshooting of communication status and network activity
  • Monitors and displays network errors, connection status, and more
• Power Supply:
  • Draws power from the Micro800 controller backplane, eliminating the need for an external power source
• Mounting:
  • Plugs directly into the Micro800 controller expansion slot
  • Compact design minimizes space requirements
• Operating Environment:
  • Temperature Range: -20°C to 65°C (-4°F to 149°F)
  • Built for industrial environments with robust performance in harsh conditions
• Certifications:
  • Meets relevant industry standards for communication modules, including UL, CE, and C-Tick

Applications:

• Industrial Automation: Enables Micro800 controllers to communicate with other devices in DeviceNet networks for coordinated control and data sharing
• DeviceNet Systems: Ideal for applications requiring DeviceNet connectivity, such as material handling, packaging, and process control systems
• Distributed Control: Supports decentralized control architectures by integrating Micro800 controllers into larger DeviceNet networks

Benefits:

• Seamless Integration: Simplifies connectivity between Micro800 controllers and DeviceNet networks, enabling efficient communication and control
• Cost-Effective: Provides an affordable solution for adding DeviceNet communication capabilities to Micro800 controllers
• Compact Design: Saves space while offering powerful communication features
• Ease of Use: Diagnostic LEDs and simple plug-in installation make it user-friendly and easy to maintain
• Flexible Configuration: Adjustable baud rates and node addresses allow integration into diverse DeviceNet systems

The Allen-Bradley 2080-DNET20 DeviceNet Communication Plug-In Module is an essential accessory for expanding the communication capabilities of Micro800 controllers, ensuring reliable and efficient integration into DeviceNet-based automation systems.
