Part #: 2080-LC20-20QBB Manufactured by: Allen-Bradley
Regular price
$377.00
Sale price
$377.00
Regular price
8 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
Allen-Bradley 2080-LC20-20QBB Controller, 12 24VDC Inputs, 4 configurable analog input withthermistor voltage reference ou...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 2080-LC20-20QBB
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 2080-LC20-20QBB

Description / Specifications

Description

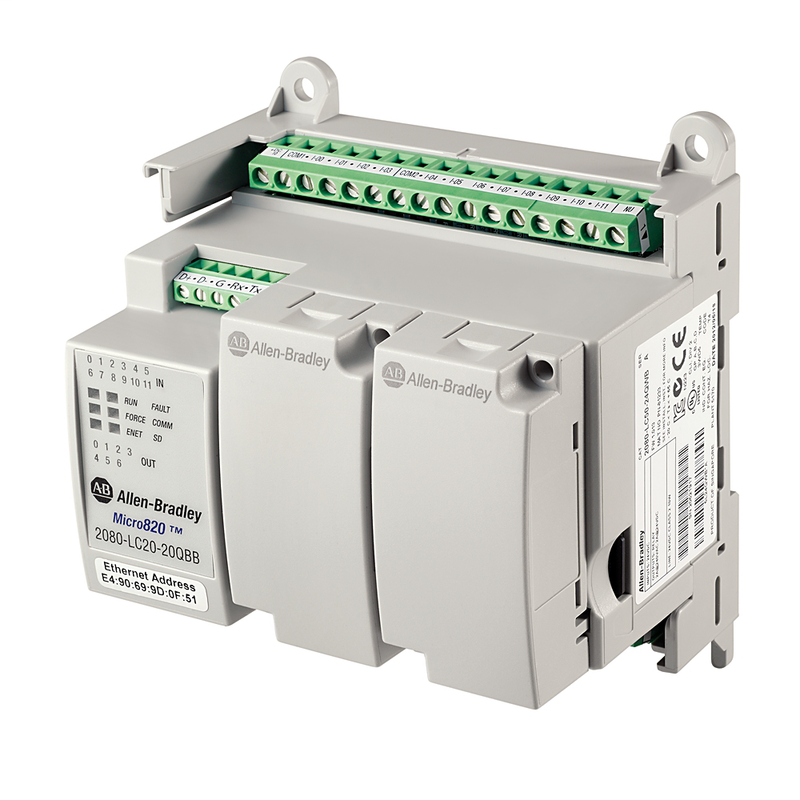

This Micro 820 Controller’s specifications include 12 24V DC Inputs, 4 configurable analog input with thermistor voltage reference out, 7 24V DC Source Output, 1 Analog Output, Embedded Ethernet Port and RS-232/485 non-isolated Serial port, Embedded RTC, MicroSD Card support and 2 Plug-In slots.



Technical Specifications



Condition New / Never Used Surplus
Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 2080-LC20-20QBB
Product Type Programmable Controller
Inputs 12(24V DC)
Outputs 7(24V DC Source); 1(Analog Out)
Dimensions HxWxD 3.54 x 4.09 x 2.95 in.
Power Input 24V DC
Power Dissipation 6 W
Power Supply Voltage Range 20.4-26.4V DC, Class 2
Enclosure Meets IP20
Non-Isolated DC Input On-state Voltage Range 9.8-26.4V DC
DC Output User Supply Voltage 26.4V DC max.
Pilot Duty Rating C300, R150
Terminal Block Fixed
Series Micro820





Information About 2080-LC20-20QBB

The Allen-Bradley 2080-LC20-20QBB is part of the cost-effective and compact Micro820 20-Point Programmable Logic Controller series. This Bulletin 2080 module can be used as a Remote Terminal Unit for remote automation projects on machines with support for TCP and Modbus RTU. Its FAT32/16 microSD slot is used for program transfer and storing larger amounts of data that require datalog and recipe. It has built-in Real Time Clock that does not require batteries and embedded support for a maximum of 4 thermistor temperature inputs. This module can also function as a stand-alone direct digital controller for Building Management Systems.

The 2080-LC20-20QBB Logic Controller can accommodate up to twelve 24 Volts AC or DC inputs, four of which can be shared 0 to 10 Volt analog inputs. It supports seven 24 Volts DC SRC outputs, plus one 0 to 10 Volt analog output It has two plug-in slots and features 5 KHz PWM output for controlling valves and solenoids. And it has one Output Reference that supports up to four 10k thermistors. The base unit has a built-in 24 Volts DC Power Supply. For additional power requirement, an optional external 120 to 240 Volts AC with category number 2080-PS can be used.


Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

Frequently Asked Questions about 2080-LC20-20QBB
Question: What is the 2080-LC20-20QBB Allen-Bradley Micro820 Controller?
Date Update:27/05/2025
Answer:

The 2080-LC20-20QBB is a programmable logic controller (PLC) designed for small to medium automation tasks. It offers 12 digital inputs and 8 digital outputs, all powered by DC voltage. This controller is ideal for applications where space is limited, and it includes features like built-in Ethernet connectivity, a microSD card slot for data storage, and support for various communication protocols.

Question: How do I program the 2080-LC20-20QBB Micro820 Controller?
Date Update:27/05/2025
Answer:

The 2080-LC20-20QBB can be programmed using Connected Components Workbench (CCW) software, which is free to download from Rockwell Automation's website. CCW allows for easy drag-and-drop programming, configuring I/O, setting up communication, and troubleshooting. It supports ladder logic and function block diagrams for flexible programming.

Question: Can I expand the I/O on the 2080-LC20-20QBB?
Date Update:27/05/2025
Answer:

Yes, the 2080-LC20-20QBB supports expansion modules. You can add additional I/O, communication, and control modules depending on your application needs. These expansion modules connect to the controller via the available ports and can be configured within the CCW software.

Question: What is the power requirement for the 2080-LC20-20QBB?
Date Update:27/05/2025
Answer:

The 2080-LC20-20QBB operates on a 24V DC power supply. It is important to ensure that your power supply can meet the voltage and current requirements of the controller and any connected expansion modules.

Question: How do I connect the 2080-LC20-20QBB to a network?
Date Update:27/05/2025
Answer:

The controller comes with an Ethernet port for network connectivity. You can connect it to your local area network (LAN) using a standard Ethernet cable. Once connected, you can use the Ethernet/IP or Modbus TCP protocols to communicate with other devices on the network. Additionally, the controller can be accessed and configured remotely through a web browser or through the Connected Components Workbench software.
