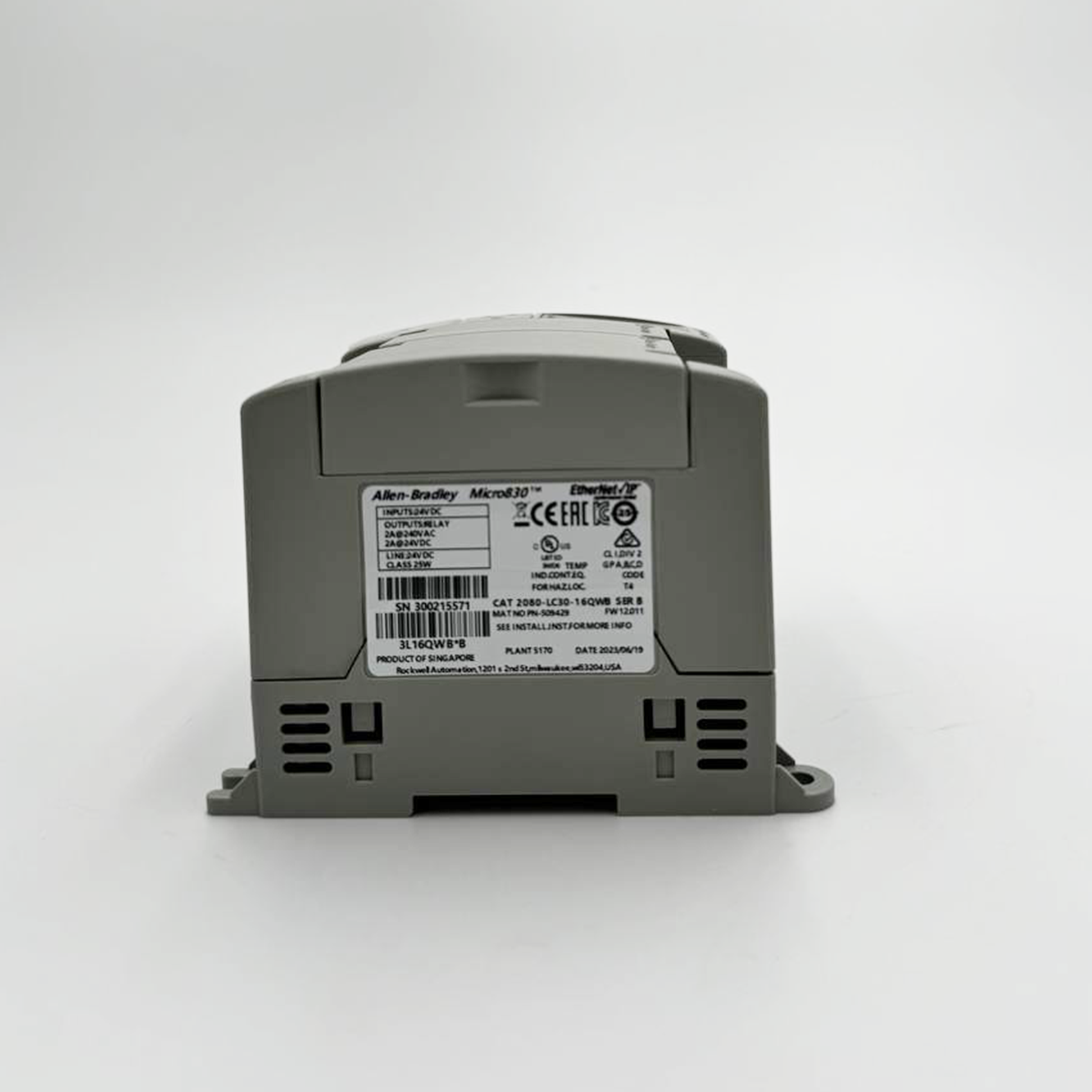

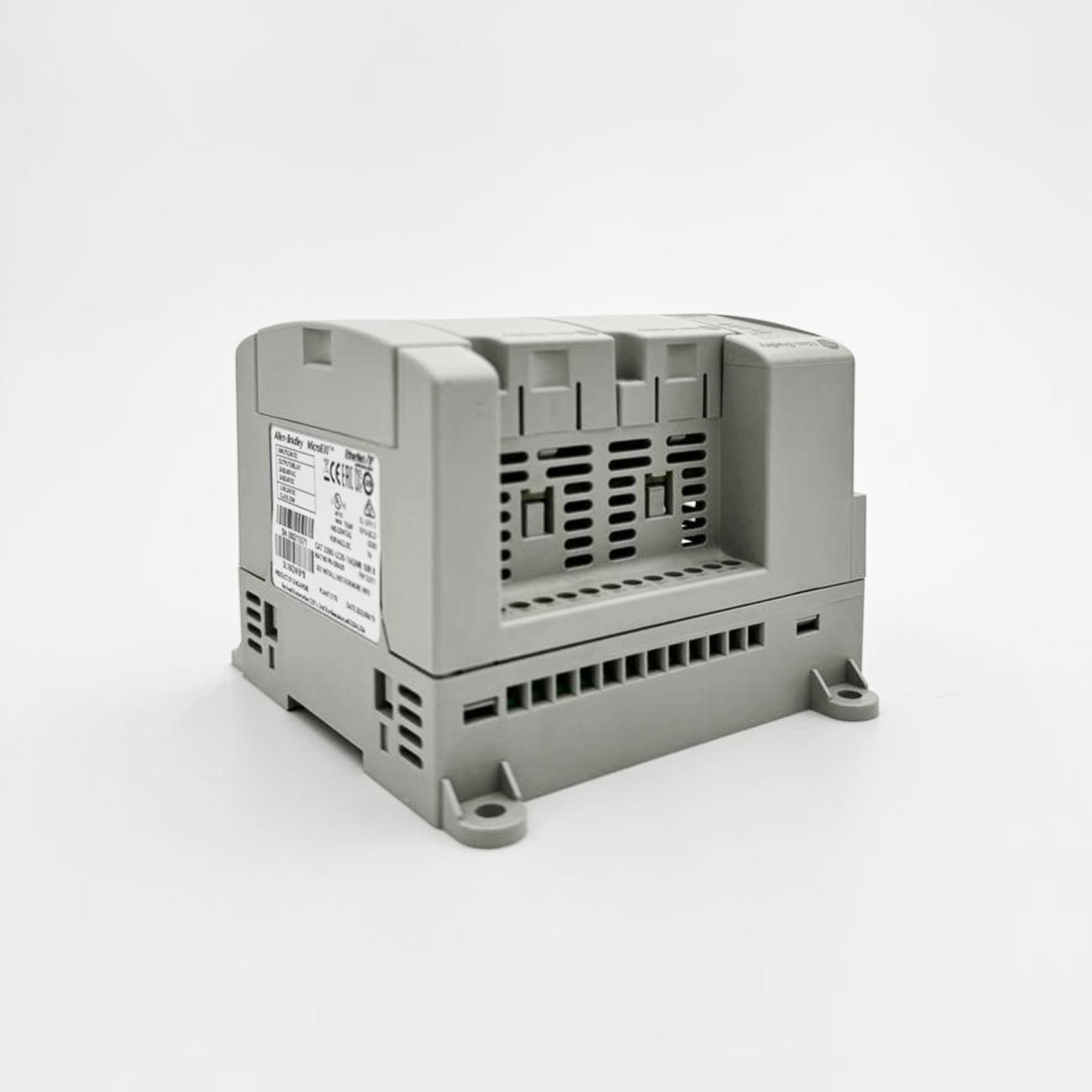

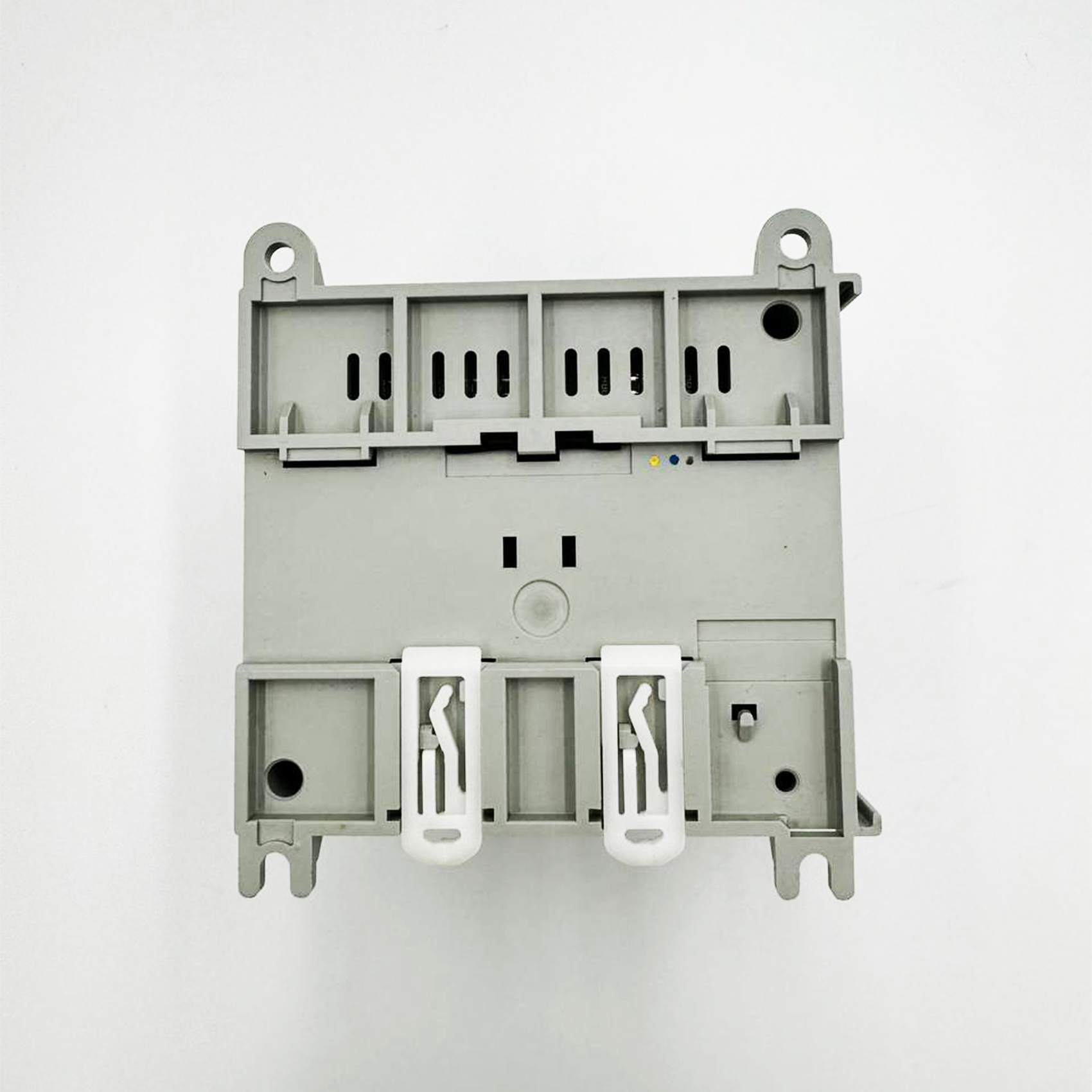

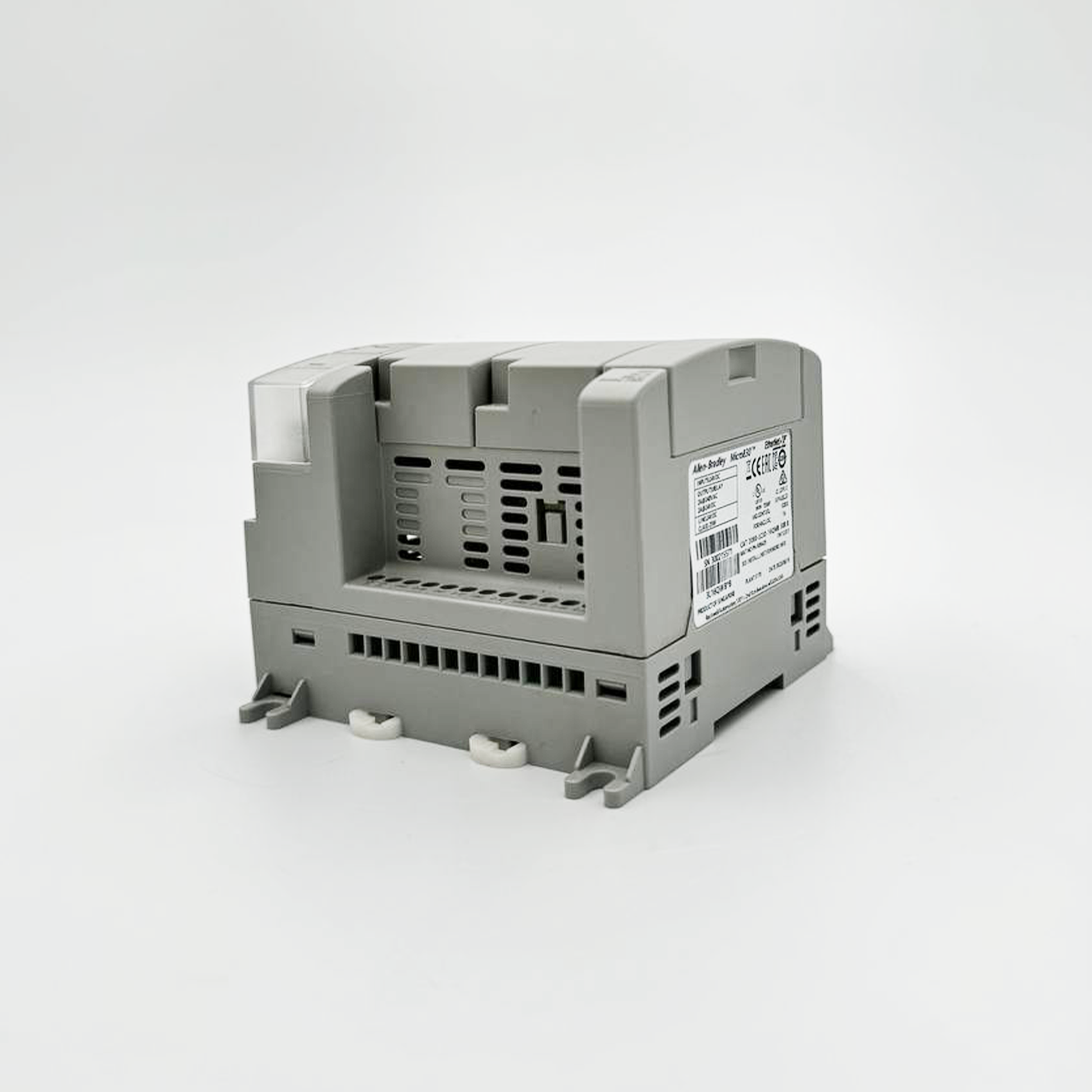

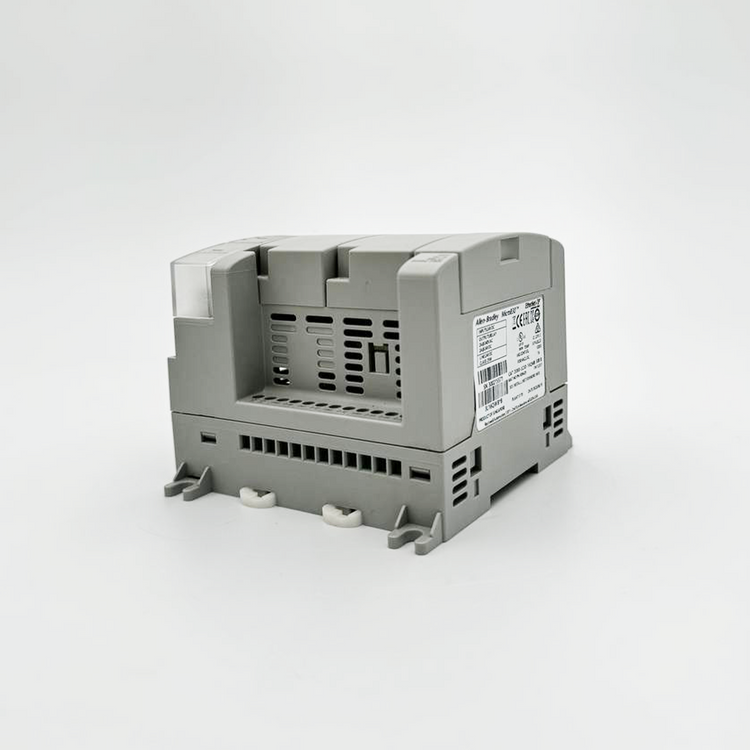

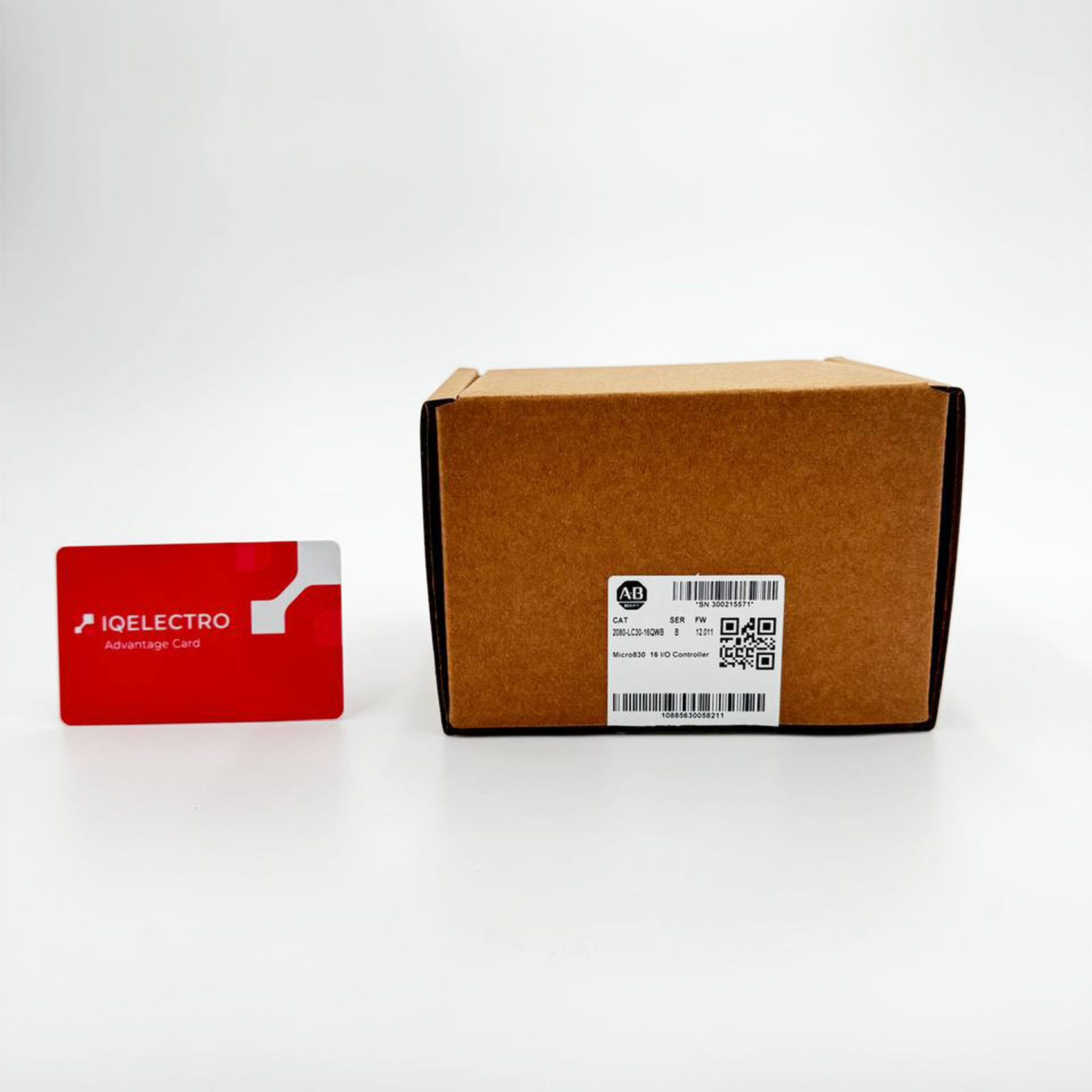

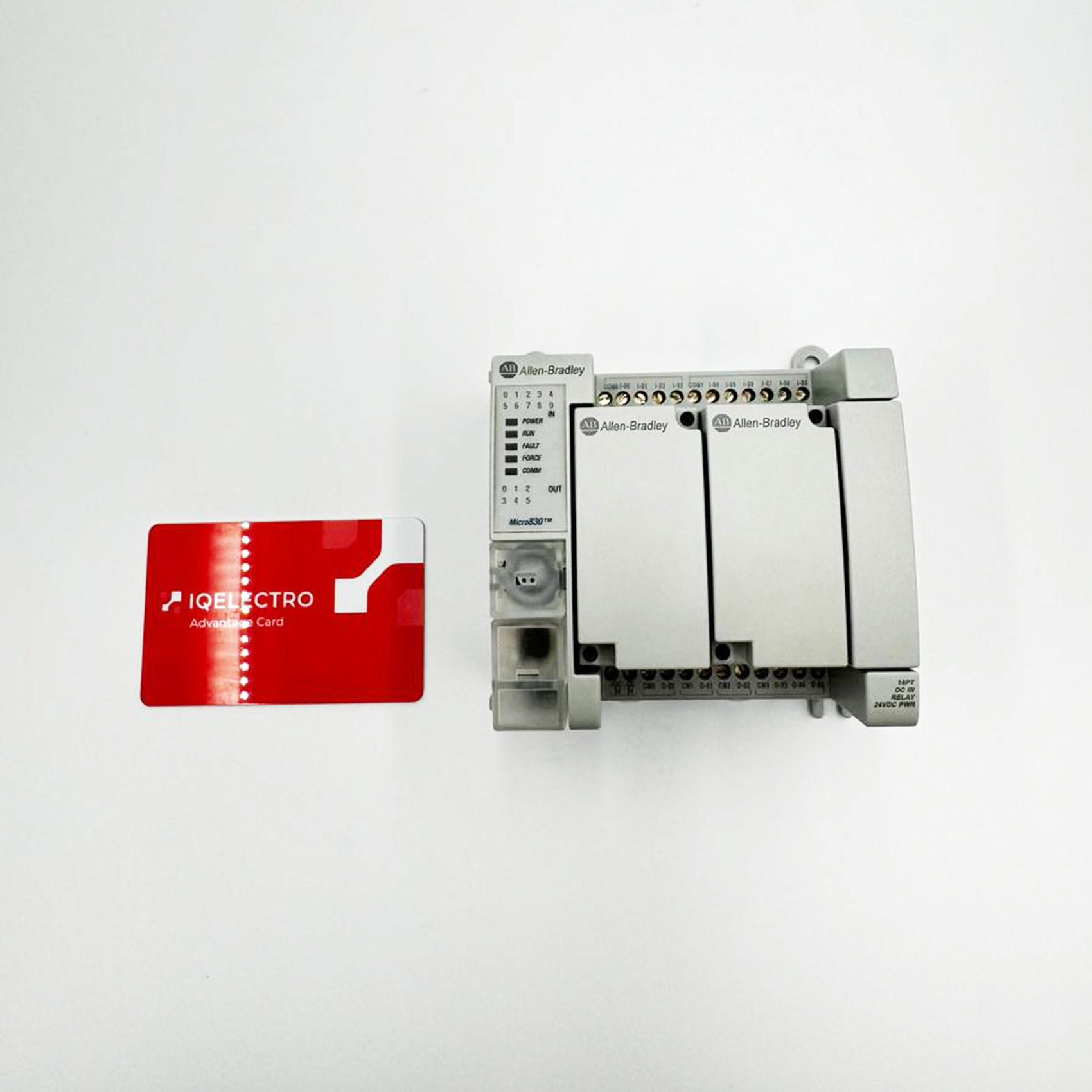

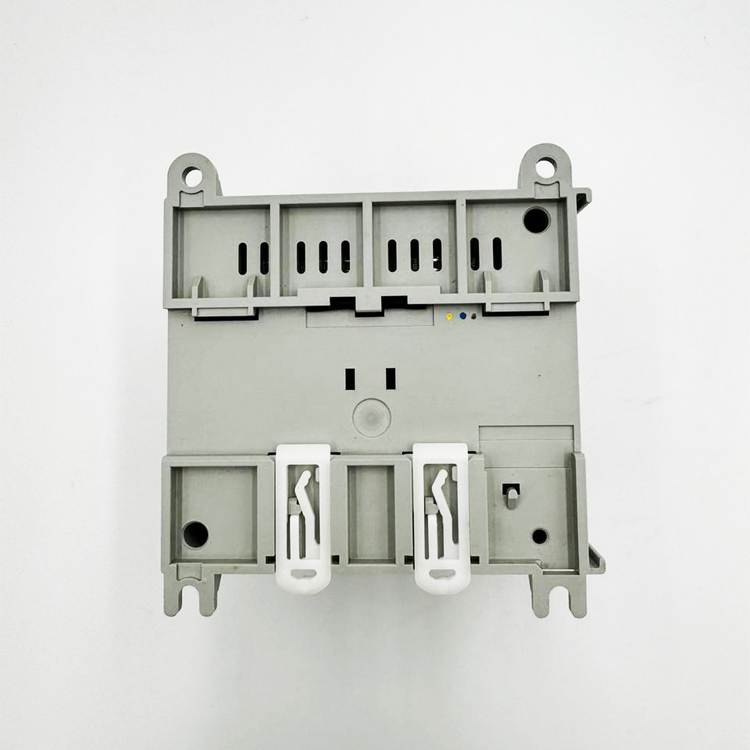

2080-LC30-16QWB | Allen-Bradley Micro830 Controller, 10 In, 6 Relay Out
- Regular price
- $259.00
- Sale price
- $259.00
- Regular price
-
Do you need help?
Product Description P/N: 2080-LC30-16QWB
Description
The 2080-LC30-16QWB is a Micro 830 Programmable Logic Controller (PLC). This controller is part of the Micro 800 series that is manufactured by Allen-Bradley. This controller is designed for use in micro or small automation requirements, featuring One (1) USB 2.0 configuration and programming port One (1) RS232 / 485 combo port. This controller has built-in Ten (10) 24 VDC / VAC discrete inputs and Six (6) Normally Open (N.O.) relay outputs. It supports the installation of Two (2) expansion modules.
Technical Specifications
Brand | Allen-Bradley |
Part Number/Catalog No. | 2080-LC30-16QWB |
Manufacturer | Rockwell Automation |
Product Type | Programmable Logic Controller |
Inputs | 10 |
Product Family | Micro 830 |
Input Type | 24V DC/AC |
Product Description | Programmable Logic Controller (PLC) |
Integrated discrete inputs | Sixteen (16) 24 VDC / VAC |
Outputs | 6 |
Output Type | Relay |
HSC | 2 HSC |
Max. Digital I/O | 32 |
Plug-In Slots | 2 |
Built-in communication interfaces | One (1) USB 2.0; One (1) RS232 / RS485 combo port |
Base Serial Port | RS-232/485 non-Isolated |
Supported Protocols | Modbus RTU Master/Slave, ASCII, CIP |
Dimensions HxWxD | 90x100x80 mm |
Maximum number of steps | 4K Steps |
Maximum data size | 8K bytes |
Floating Point Math | Supported |
PID control | Supported |
User defined blocks | Supported |
Series | Micro830 |
Information About 2080-LC30-16QWB
The 2080-LC30-16QWB is a compact controller that is part of the Micro 830 controller series of Allen-Bradley. It specifically belongs to the larger group of Micro 800 product family, designed to implement automation of micro and small machines or industrial processes. This controller comes in a compact form and supports Din rail and panel mounting. The 2080-LC30-16QWB mainly features Ten (10) 24 VDC / VAC discrete inputs and Six (6) Normally Open (N.O.) relay outputs. Two (2) plug-in modules may be added to this controller to further enhance the controller capability. A multitude of plug-in modules is supported by this controller particularly Discrete I/O modules, Analog I/O modules, specialty and communication modules. This controller is wired to an external 120 VAC / 240 VAC power supply to operate the controller. It is also provided with an RS232 communication interface that can be configured for a variety of communication protocols such as Modbus RTU Master / Slave, ASCII, and Allen-Bradley Common Industrial Protocol (CIP). It also has a USB 2.0 programming port which may also be used as a programming port. Applicable programming language includes ladder Diagram (LD), Function Block Diagram (FBD), and Structured Text. Up to 4K steps or instructions can be downloaded to this controller. This controller has 8K bytes of memory and is capable of implementing floating-point math, PID loop control, and motion control. This controller carries certification from c-UL-us CL1DIV2, CE, C-Tick, KC and is operable at a temperature range of -20 to 65 Degree Celsius.
The 2080-LC30-16QWB is a 16-point form-factor base unit Controller, belonging to the Micro830 Programmable Logic Controllers family. It has 16 points of Digital I/O (10 to 24 Volt DC Sink/Source Inputs and 6 Relay Outputs) built into the module, and the whole module can be extended, without increasing the controller’s overall footprint, by adding supplementary Analog and Digital I/Os through 2 plug-in module slots. The Base Unit 2080-LC30-16QWB is powered by a 24 Volt DC power supply. Using any standard printer cable, this module’s USB 2. The 2080-LC30-16QWB is suitable for small applications and OEM machine builders, as it provides a flexible control solution at a competitively low price. The 2080-LC30-16QWB base unit has an Embedded RS-232/485, non-isolated, Serial Port; and supports the Modbus Communication Protocol with multiple flavors and configurations like RTU Master/Slave, ASCII, and CIP for maximum integration with the machine mounted HMIs, remote SCADA, or even controller to controller communication. The 2080-LC30-16QWB can operate in a wide ambient temperatures range of -20 to 65 degrees Celsius, making it suitable for most situations. Its enclosure is rated as IP20.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
