2080-LC30-24QWB | Allen-Bradley Micro830 Controller 14-In 24V AC/DC, 10-Out Relay
- Regular price
- $319.00
- Sale price
- $319.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2080-LC30-24QWB
Description

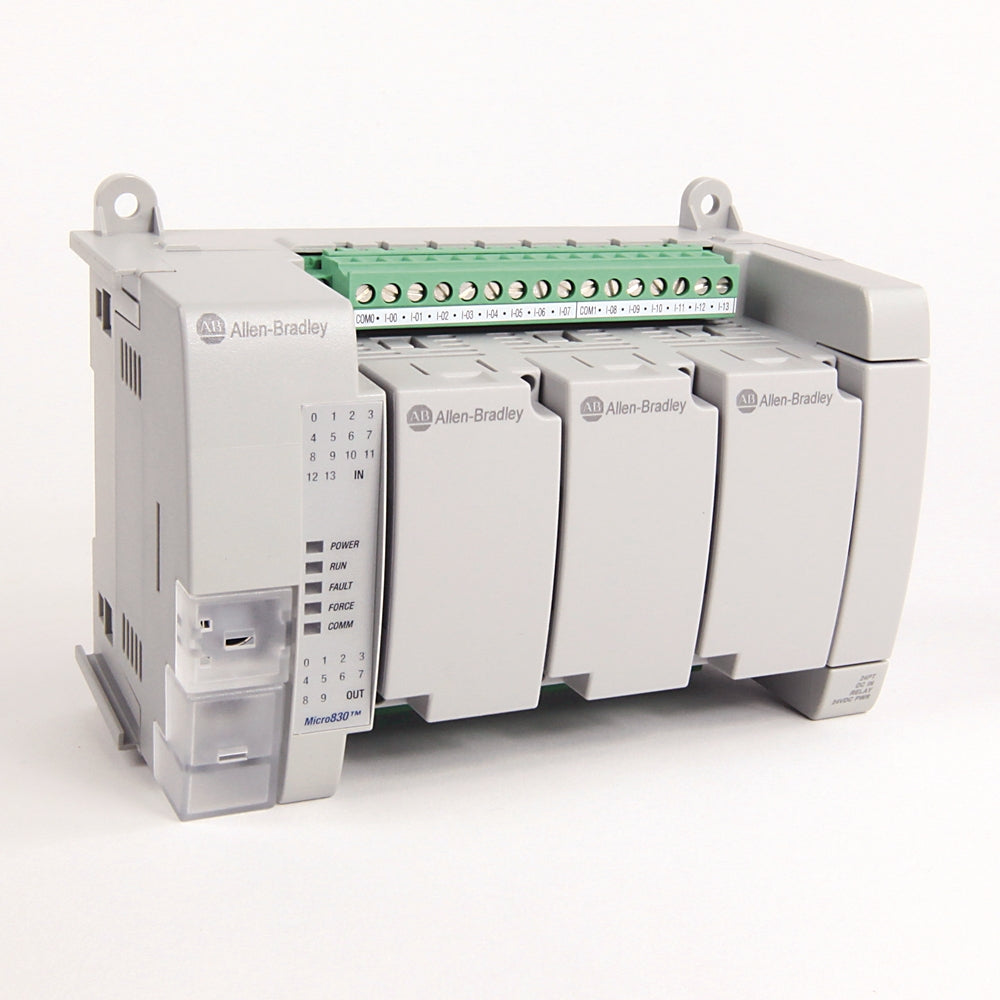

The 2080-LC30-24QWB is a Micro 830 Programmable Logic Controller (PLC). This controller is part of the Micro 800 series that is manufactured by Allen-Bradley. This controller is designed for use in micro or small automation requirements, featuring One (1) USB 2.0 configuration and programming port One (1) RS232 / 485 combo port. This controller has built-in Fourteen (14) 24 VDC / VAC discrete inputs and Ten (10) Normally Open (N.O.) relay outputs. It supports the installation of Three (3) expansion modules.
Technical Specifications
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 2080-LC30-24QWB |
| Manufacturer | Rockwell Automation |
| Product Type | Programmable Logic Controller |
| Inputs | 14 |
| Product Family | Micro 830 |
| Input Type | 24V DC/AC |
| Outputs | 10 |
| Output Type | Relay |
| HSC | 4 HSC |
| Max. Digital I/O | 48 |
| Plug-In Slots | 3 |
| Built-in communication interfaces | One (1) USB 2.0; One (1) RS232 / RS485 combo port |
| Base Serial Port | RS-232/485 non-Isolated |
| Supported Protocols | Modbus RTU Master/Slave, ASCII, CIP |
| Dimensions HxWxD | 90x145x80 mm |
| Maximum number of steps | 4K Steps |
| Maximum data size | 8K bytes |
| Floating Point Math | Supported |
| PID control | Supported |
| User defined blocks | Supported |
| Series | Micro830 |
Information About 2080-LC30-24QWB
The 2080-LC30-24QWB is an Allen-Bradley Programmable Logic Controller (PLC) from the Micro 800 series of compact controllers. This controller is by default a discrete controller, installed with discrete I/O channels specifically, Fourteen (14) 24 VDC / VAC discrete inputs and Ten (10) Normally Open (N.O.) relay outputs however, analog I/O is supported by this module with the installation of additional plug-in modules as this controller supports installation of up to Three (3) additional modules. The 2080-LC30-24QWB comes in a compact controller that is specially designed for micro and small processes. Compatible programming language to the 2080-LC30-24QWB includes Ladder Diagram (LD). Function Block Diagram (FBD) and Structured Text. The provided data memory to this controller amounts to 8Kbytes and supports up to 4K program steps. This controller is capable of being programmed with user-defined function blocks for program optimization. Proportional + Integral + Derivative (PID) algorithm and Floating-Point math is also supported by this controller. The built-in communication interface to this module is a circular mini-din RS232 connector that supports a variety of industrial protocols such as Modbus RTU Master/Slave, ASCII, Common Industrial Protocol. In addition, this controller also has a USB 2.0 port that functions as a programming port. This controller has an embedded 24 VDC Power supply that requires an external 120 VAC / 240 VAC supply Voltage. Recommended external power supply is the 2080-PS120-240VAC.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
