2080-LC50-24AWB | Allen-Bradley Micro850 Controller, 14 AC In, 10 Relay Out
- Regular price
- $625.00
- Sale price
- $625.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2080-LC50-24AWB
Description
The 2080-LC50-24AWB controller is a programmable logic controller that has been designed and manufactured by Allen-Bradley. It has been designed as part of the Allen-Bradley Micro 850 controller series. Its 24 I/O points are 10 relay outputs and 14 AC inputs. The 2080-LC50-24AWB programmable logic controller has an on-state voltage range of 79 to 132 Volts AC and an on-state current range of 5 to 16 milliamps.
Technical Specifications
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number/Catalog No. | 2080-LC50-24AWB |
| Product Type | Programmable Logic Controller |
| Inputs | 14 |
| Input Type | 120V AC |
| Outputs | 10 |
| Output Type | Relay |
| Base Plug-in Slots | 3 |
| Base 100KHz HSC max. | 4 HSC |
| Dimensions HxWxD | 90x145x80 mm |
| Expansion I/O Modules | Upt to 4 Modules |
| Max. Digital I/O | 132 |
| Series | Micro850 |
Information About 2080-LC50-24AWB

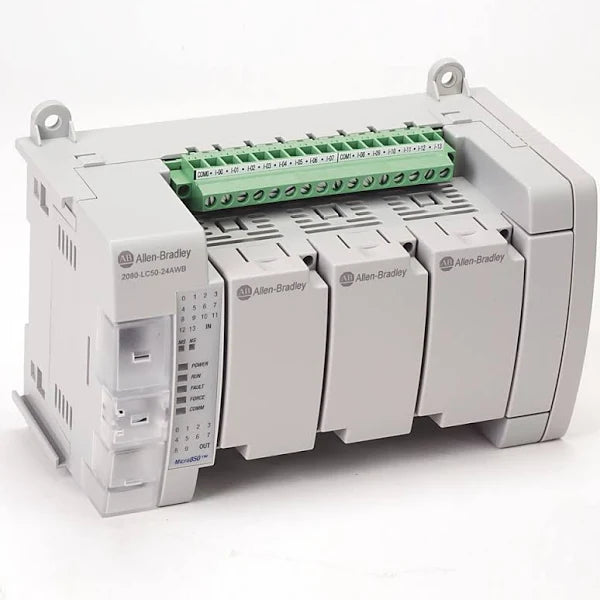

The 2080-LC50-24AWB Micro850 24 Point Controller is an expandable brick-designed controller by Allen-Bradley with 24 I/O and an IP20-rated enclosure used for a wide range of industrial applications. The controller has 14 (120V AC/16mA) AC inputs, with 132V AC of maximum ON-state voltage, with 16mA maximum ON-state current at 50-60Hz, and an OFF-state voltage of 20V AC with an OFF-state current of 2.5mA and an inrush delay time of 22ms. The controller has 10 relay outputs with 265V AC of maximum output voltage and a maximum load current of 2A and it has approximately 5A current per common and a maximum turn ON/OFF time of 10ms. It has 7.5A and 0.75A MAKE and BREAK Relay contact ratings and it has a maximum power dissipation of 28W. The 2080-LC50-24AWB uses either 0.2 x 2.5 mm2 (24-12 AWG) solid copper wire or 0.2 x 2.5 mm2 (24-12 AWG) stranded copper wire, with 7mm (0.28in) maximum insulation stripping length, and it offers 250V isolation voltage, tested for 60s at 3250V, between DC output to aux and network, inputs and outputs. The controller has an operating voltage range between -20 and 65 oC (-4 and 149 oF), at 5-95% non-condensing humidity level, and it is designed for storage at a -40-85 oC (-40-185 oF) temperature range. It is built to withstand an operational 2 g vibration at 10-500Hz and a 25G operational shock, and it is designated with the T4 (North America) Temperature Code. It weighs approximately 0.423kg (0.933lb), and it has net shipping dimensions of 90mm x 158mm x 80mm (3.54in x 6.22in x 3.15in).
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
