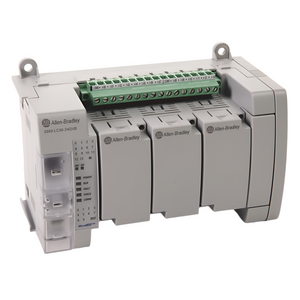

2080-LC50-24QVB | Allen-Bradley Programmable Logic Controller
- Regular price
- $492.00
- Sale price
- $492.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2080-LC50-24QVB
Description
The Allen-Bradley 2080-LC50-24QVB is a Micro850 Programmable Logic Controller (PLC) designed for flexible and scalable machine control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category | Relays |
| Part Number | 2080-LC50-24QVB |
| Subcategory | Relays & Sockets |
| Memory | 140 KB |
| Number of Channels | 14 Input, 10 Output |
| Output Signal | 24V DC Sink |
| Standard | C-TICK,CCC,CE,CUL,KC,UL |
| Type | Controller |
| Enclosure | IP20 |
| Mounting Type | DIN Rail, Panel |
| Operating Temperature | 149°F |
| Power Supply | 24 VDC |
| Temperature Rating | -20 to 65°C |
| Voltage | 24 VAC/VDC |
| Dimensions HxWxD | 90 x 145 x 80 millimeters |
| Weight | 0.44 kgs |
Information About 2080-LC50-24QVB
The Allen-Bradley 2080-LC50-24QVB is a Micro850 Programmable Logic Controller (PLC) designed for standalone machine control applications. It offers flexibility and scalability, making it suitable for various industrial automation tasks.
Key Features:
-
Integrated I/O:
-
Digital Inputs: 14 inputs supporting 24V DC/AC signals.
-
Digital Outputs: 10 sinking outputs rated at 24V DC.
-
-
Communication Ports:
-
Ethernet Port: Enables network connectivity for programming and communication with other devices.
-
USB Programming Port: Facilitates easy programming and configuration.
-
Non-Isolated RS232/485 Serial Port: Supports serial communication with peripheral devices.
-
-
Expansion Capabilities:
-
Equipped with three plug-in slots for additional modules, allowing customization based on application needs.
-
Supports up to four local expansion I/O modules, enhancing its adaptability to complex control tasks.
-
-
High-Speed Counter (HSC):
-
Provides up to four HSC channels, enabling precise counting and measurement functions.
-
-
Pulse Train Output (PTO)/Pulse Width Modulation (PWM):
-
Offers two PTO/PWM channels, useful for motion control applications requiring precise output signals.
-
-
Memory:
-
Features 10 KB of program memory and 20 KB of data memory, accommodating substantial control programs and data storage.
-
-
Environmental Ratings:
-
Operating temperature range: -20°C to 65°C (-4°F to 149°F).
-
Storage temperature range: -40°C to 85°C (-40°F to 185°F).
-
Relative humidity tolerance: up to 95% non-condensing.
-
Shock resistance: 30 g.
-
Vibration resistance: 2 m/s² at up to 500 Hz.
-
-
Certifications:
-
Complies with IP20 rating for protection against solid objects.
-
Certified for use in Pollution Degree 2 industrial environments and overvoltage Category II applications.
-
The Micro850 2080-LC50-24QVB PLC's combination of integrated features and expansion options makes it a versatile solution for diverse industrial automation applications.
