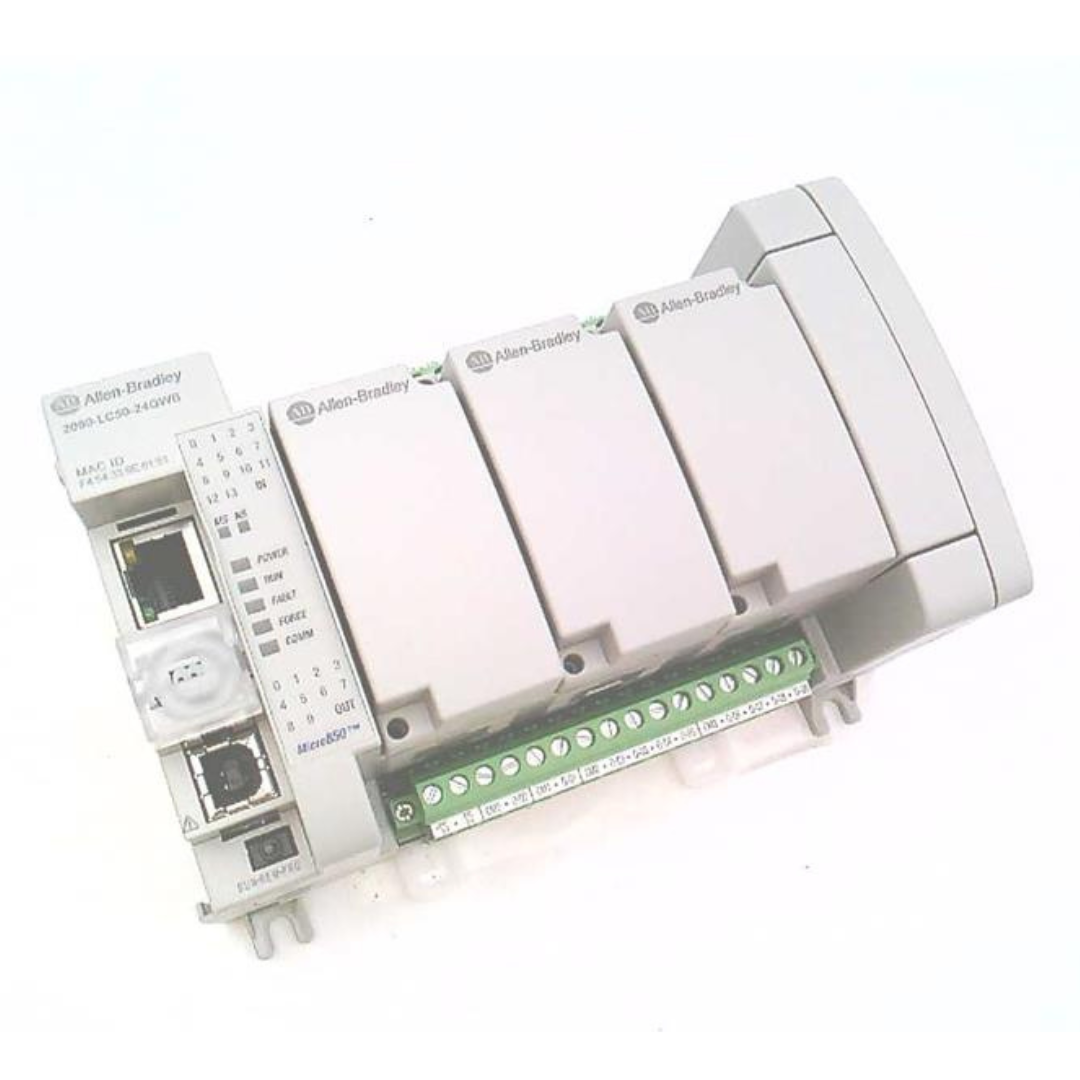

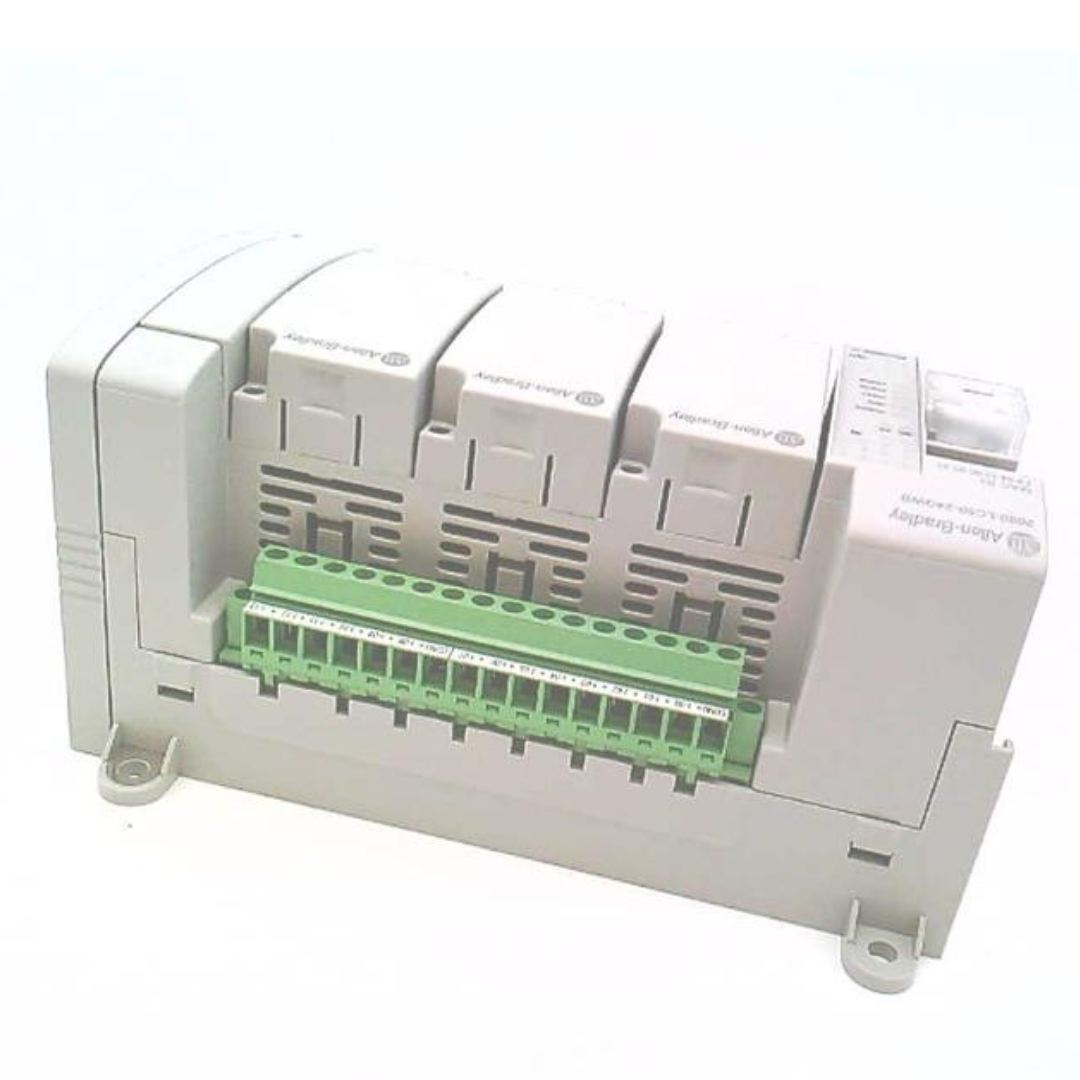

2080-LC50-24QWB | Allen-Bradley Micro850 Controller, 14 AC/DC In, 10 Relay Out

Description

The 2080-LC50-24QWB is a Micro 850 Programmable Logic Controller (PLC). This controller comes with embedded 24 Point I/O channels specifically, eight (8) high-speed 24 Volt and six (6) standard 24 Volt inputs, both input types supporting sink/source configuration and 24 Volt AC as well. It also has ten (10) relay outputs and four (4) high-speed counters. It has an embedded 24 Volt DC power supply and USB 2.0 non-isolated port and one (1) RJ-45 that supports Ethernet /IP Class 3, and Modbus TCP/IP at transmission rates of 10/100 Mbps.

Technical Specifications

Information About 2080-LC50-24QWB

The 2080-LC50-24QWB Micro850 24 Point Controller by Allen-Bradley is an expandable brick modeled controller with 14 embedded inputs and 10 embedded outputs, up to 3 plugin modules, and it is designed specifically for low-budget, stand-alone machines. It has 14, 24V sink/source (high-speed) input circuits, with 10 relay outputs, and a Class 2 input voltage range of 20.4-26.4V DC, with 28W maximum power consumption. The controller provides 250V AC isolation voltage between outputs to Aux, and between network inputs to output, tested at 3250V DC for 60s, using the reinforced insulation type. It has C300, and R150 pilot duty rating, with 7mm (0.28in) insulation strip length, and it is enclosed in an IP20-rated enclosure. The controller has six 24V sink/source standard DC inputs (input 8 and higher), with an ON-state voltage range of 10-30V DC, at 3.74kOhms nominal input impedance, and it has 50V DC working voltage isolation, from input group to backplane, tested at 720V DC for 2s, using IEC Class 2 rated reinforced insulation type. The 2080-LC50-24QWB has 8 isolated AC inputs, with 12/24V AC ON state voltage at 50-60Hz, and an OFF-state voltage of 4V AC at 50-60Hz operating frequency. It has 10 relay outputs with 125V DC maximum output voltage and a maximum load current of 2A. Its relay outputs also have a 5A maximum current per common with a maximum Turn ON/OFF time of 10ms, and it has a maximum MAKE/BREAK amperage of 0.22A, and a MAKE/BREAK real power rating of 28VA. It has an IEC-tested operational temperature range between -4 and 149 oF at 5-95% non-condensing relative humidity, and it is stored between -40 and 185 oF. It can withstand an operational shock of 25G, with a 2G vibration at 10-500Hz, and it is designated with the T4 (North America) temperature code. It weighs 0.423kg (0.933lb), and it is shipped with net dimensions of 90mm x 158mm x 80mm (3.54in x 6.22in x 3.15in).

The Allen-Bradley 2080-LC50-24QWB is a Micro 850 Programmable Logic Controller (PLC). This controller is part of the modern PLC product range of Allen-Bradley that is ideally used in micro or small applications. This PLC is especially popular with Original Equipment Manufacturers (OEM) due to its small, scalable hardware yet advanced features and highly cost-effective.

The 2080-LC50-24QWB is a compact PLC that comes with a complete set of components such as Power Supply, Processor, I/O and communication interfaces. The built-in power supply to this PLC is a 24 Volt DC power supply. The embedded I/O interfaces includes fourteen (14) inputs, ten (10) relay outputs and four (4) 100 kHz high-speed counter inputs. This controller supports expansion of up to 3 modules.

It supports up to 10K program steps or instructions and is capable of handling up to 20K bytes of data. This controller may be programmed using the IEC 61131-3 defined standard languages such as Ladder Diagram (LD), Function Block Diagram (FBD) and Structure Text (ST). This controller supports creation of user-defined blocks and also capable of using motion instruction for motion and position control. 32-bit and 64-bit floating point match operation is supported by this controller and able to implement Proportional + Integral + Derivative (PID) control. This controller supports direct panel or DIN rail mounting.
