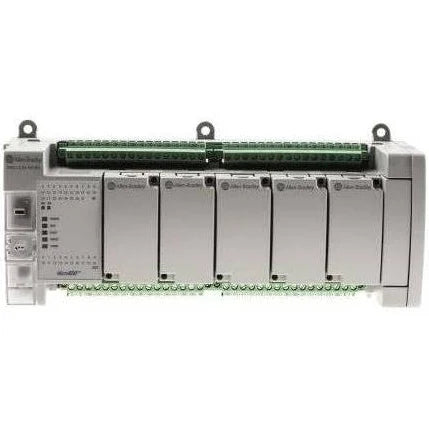

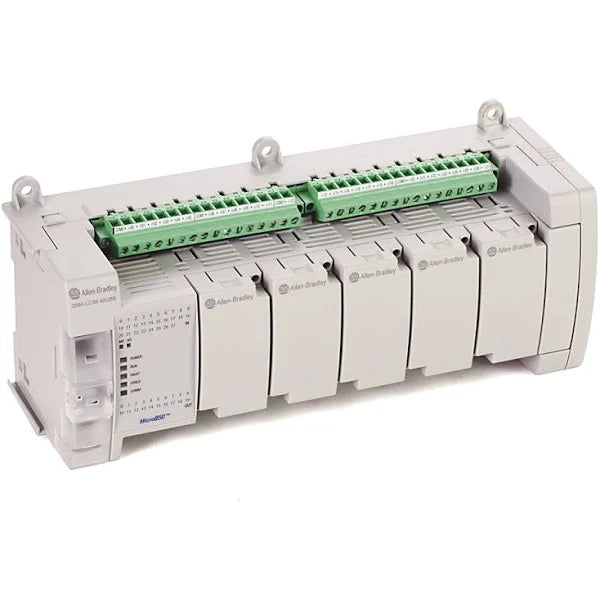

2080-LC50-48QBB | Allen-Bradley Micro850 Controller, 28 AC/DC In, 20 Relay Out

Description

The Allen-Bradley 2080-LC50-48QBB is a Micro 850 Programmable Logic Controller (PLC) series. This controller features One (1) USB 2.0 configuration and programming port; One (1) Ethernet class 3 port supporting 10/10 Mbps Modbus communication. This controller has embedded Twenty-Eight (28) 12/24 VDC discrete inputs; twenty (20) 24 VDC Sourcing outputs; Three (3) Pulse Train outputs and Six (6) High-Speed Counter (HSC) inputs.

Technical Specifications

Information About 2080-LC50-48QBB

The 2080-LC50-48QBB is a Programmable Logic Controller (PLC) from Allen-Bradley. This controller is part of the Micro850 series of compact, packaged, or commonly referred to as shoebox-type controllers. This controller is designed for use in small and less complex applications as it comes with embedded features and slightly modular hardware. The 2080-LC50-48QBB comes with embedded input and output channels specifically, Twenty-Eight (28) 12/24 VDC discrete inputs; twenty (20) 24 VDC Sourcing outputs; Three (3) Pulse Train outputs, and Six (6) High-Speed Counter (HSC) inputs. It is also provided with one (1) USB 2.0 programming port and One (1) 10/100 Mbps ethernet Modbus communication interface. The 2080-LC50-48QBB has a user memory that can accommodate up to 10K program steps and up to 20Kbytes of program data. It supports the creation of user-defined function blocks as well as integrated support for motion instructions, Floating-Point 32-bit or 64-bit math, and PID control. Aside from Modbus protocol, this controller also supports ASCII and Common Industrial Protocol (CIP). The 2080-LC50-48QBB accepts the installation of up to Four (4) expansion modules. The embedded High-Speed Counter (HSC) inputs are compatible with signals operating at a maximum switching frequency of 100 kHz. To operate and energize this controller, it requires wiring to an external power supply that delivers 24 VDC supply voltage with an acceptable input voltage range of 21.4 - 26. 4 VDC.

The Allen-Bradley 2080-LC50-48QBB is a safety certified programmable controller that supports the SIL 2 and SIL 3 application requirements. This programmable controller system is tailored to meet any application’s most demanding prerequisites.

This unit provides a modular architecture and a wide range of I/O and network alternatives. It is a powerful control solution that delivers topnotch capabilities from the processes of safety to motion. Designed for distribution or supervisory control application, the 2080-LC50-48QBB offers reliability and performance.

The 2080-LC50-48QBB is also the best solution for any mid-range application since it provides the features and flexibility that may be required without the overhead of larger programmable systems. In addition, the 2080-LC50-48QBB is a standard and safety certified programmable controllers in packaged and modular design. A typical application of The Allen-Bradley 2080-LC50-48QBB comprises automation building, batch processing, and complex machine control.

The 2080-LC50-48QBB programmable controller is most often used in large stand-alone machine control applications that need flexible communication and higher I/O capabilities. Some of its features include a 24-point and 48-point controller system, a high-speed counter (HSC) of 100kHz speed inputs on 24Vdc versions only, embedded communication through a USB programming port and an RS-232/485, communication through server mode only (EtherNet/IP), embedded motion capabilities through offering support to up to three axes with pulse train outputs (PTO). It also has a number of available expansion I/O modules.

The Allen-Bradley 2080-LC50-48QBB programmable controller is the only system that uses a common control engine with a common development environment to offer world-class performance in a simple-to-use environment. Additionally, the standard and safety control can be performed in the same chassis for an integrated system. Use the programmable controller system to help you leverage the high-accessibility and extreme environment capabilities to meet your application requirements.

The 2080-LC50-48QBB is also designed to offer increased performance, capacity, productivity and security that will help meet the ever-rising demands of smart machines and equipment for manufacturing. This controller is perfect for applications that require high-performance communications, I/O, and motion for up to 256 axes, and offers an increased capacity of up to 45%.

The 2080-LC50-48QBB is accessible in standard conditions, extreme temperatures, and on machine models that are suitable for process, motion, discrete and high-accessibility applications. As part of their integrated architecture systems, the 2080-LC50-48QBB uses EtherNet/IP and common network protocols for high-speed motion applications. Additionally, these are high-performance control systems that offer a common control engine with a common development environment for all control applications.

The 2080-LC50-48QBB comes with chassis-based modules that offer a range of digital, diagnostic digital, analog, motion control, specialty I/O and compute modules to meet all your application requirements.

Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
