Part #: 2080-LC70-24QWB Manufactured by: Allen-Bradley
Regular price
$656.00
Sale price
$656.00
Regular price
5 in Stock

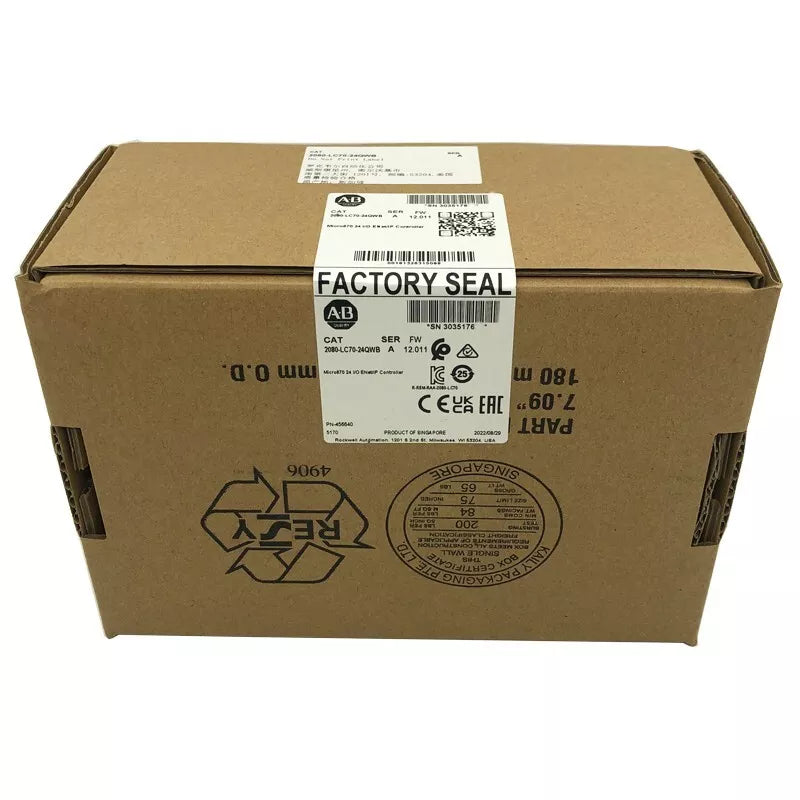

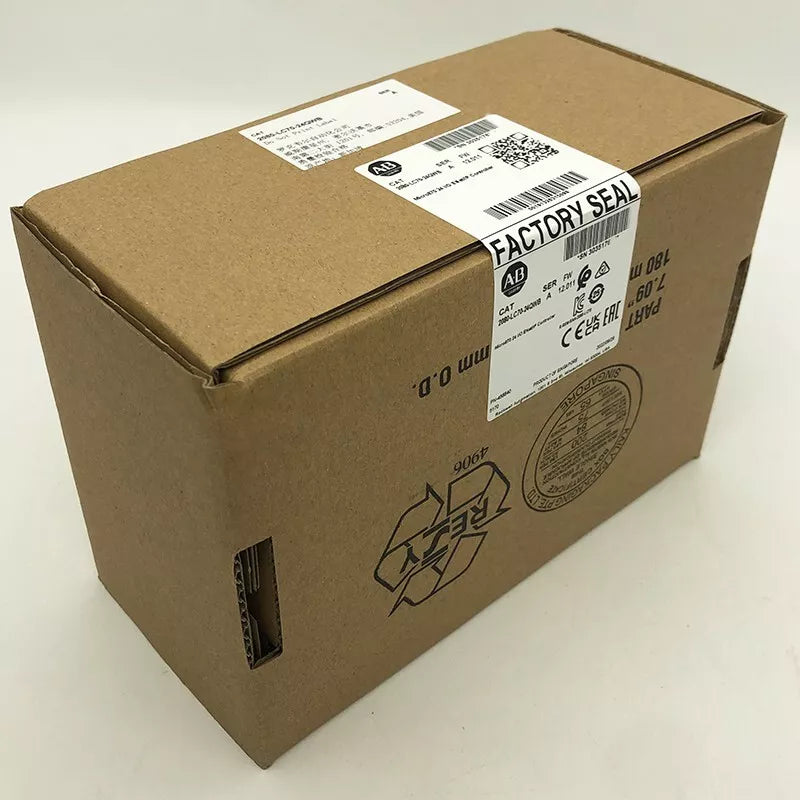

Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
Allen-Bradley 2080-LC70-24QWB Micro870 EtherNet/IP Controller, 14 24 VDC/VAC Inputs, 10 Relay Output, 24 DC Input Power, U...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 2080-LC70-24QWB
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 2080-LC70-24QWB

Description / Specifications

Description

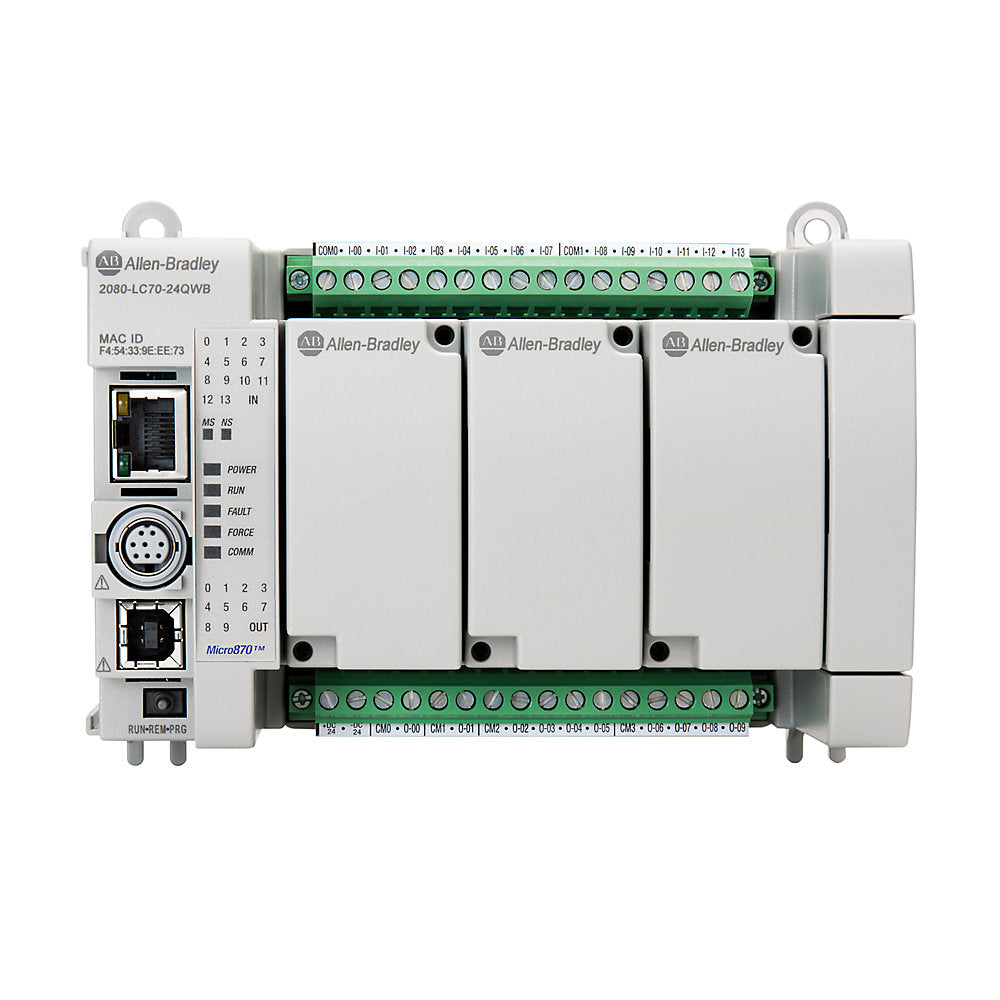

The Allen-Bradley 2080-LC70-24QWB controller is an Ethernet/IP controller manufactured as part of the Micro 870 product line. It comes with 24 I/O points which include 14 inputs and 10 outputs.



Technical Specifications



Brand Allen-Bradley
Series Micro870
Part Number 2080-LC70-24QWB
Product type Ethernet/IP controller
Product line Micro 870
I/O points 24
Inputs 14
Outputs 10
Memory space 128 KB
Input voltage 12/24 Volts
Output type Relay
Dimensions 90 x 145 x 80 mm
Operating temperature -20 to 65 degrees Celsius
Bulletin 2080
Communication ports RS485/RS232
Features Modbus RTU master/slave port





Information About 2080-LC70-24QWB

The 2080-LC70-24QWB Ethernet/IP controller is a product of Allen-Bradley-Rockwell Automation. It is manufactured as a member of the Micro870 product family and it has 24 I/O points, including 14 inputs and 10 outputs. The controller has an input voltage of 12/24 Volts with a relay output type, and it has a program capacity of 128 KB with a human-machine interface for programming. Some of the communication port types include the ASCII, CIP, and RS485/RS232 communication ports, and the Modbus RTU master/slave port. The 2080-LC70-24QWB Ethernet/IP controller uses the function block, structured text, and ladder diagram programming languages, and it has approximate dimensions of 90 x 145 x 80 millimeters. Other specifications include an operating temperature of -20 degrees Celsius minimum and 65 degrees Celsius maximum.

The Allen-Bradley 2080-LC70-24QWB Ethernet/IP controller meets several industrial operational requirements through its scaling machine. It supports up to 8 expansion input and output modules and 304 digital input and output points. This controller is intended to help program devices and to easily connect to a human-machine interface through the Ethernet/IP control drives. Additionally, it communicates to various controllers quickly by the use of symbolic addressing with client messaging. The controller also shortens the machine development time with up to 280 KB of memory and with support for a maximum of 20,000 programming steps. It reduces the wiring time by the use of removable terminal blocks. It provides controller programming, configuration of devices, and data sharing with the human-machine interface editor for the PanelView 800 graphic terminals.


Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

Frequently Asked Questions about 2080-LC70-24QWB
Question: What is the 2080-LC70-24QWB and what are its key features?
Date Update:27/05/2025
Answer:

The 2080-LC70-24QWB is a Micro870 programmable logic controller (PLC) from Rockwell Automation, designed for flexible and scalable control in compact industrial applications. Key features:

  • Controller Memory: 280 KB total (up to 128 KB user data, ~20,000 instructions)
  • Embedded I/O: 14 digital inputs (24V DC), 10 relay outputs (AC/DC)
  • Built-in Communication: 1 x USB programming port, 1 x non-isolated serial port (RS232/RS485), 1 x Ethernet port (supports EtherNet/IP™)
  • Expansion Support: Up to 8 2085 I/O modules, Up to 3 Micro800 plug-in modules
  • Real-time clock and data logging features included
Question: What programming environment and languages are used for the 2080-LC70-24QWB?
Date Update:27/05/2025
Answer:

The controller is programmed using Connected Components Workbench (CCW), a free software environment from Rockwell Automation.
Supported IEC 61131-3 programming languages:

  • Ladder Diagram (LD)
  • Function Block Diagram (FBD)
  • Structured Text (ST)

The controller also supports user-defined function blocks, variables, tasks, and event-triggered routines.

Question: What is the power supply requirement and electrical specification for this model?
Date Update:27/05/2025
Answer:
  • Input Voltage: 24V DC nominal (±10%)
  • Input type: 14 digital inputs – sink/source (configurable), 24V DC logic level
  • Relay Outputs: 10 Form A relays (SPST-NO), Maximum output rating: 2 A per point (max 8 A per common)
  • Relay outputs can be used for switching both AC (up to 250V) and DC (up to 30V) loads.
Question: What communication options does the 2080-LC70-24QWB provide for system integration?
Date Update:27/05/2025
Answer:

It supports the following built-in communication options:

  • EtherNet/IP™: For controller-to-controller, HMI, or SCADA communication
  • Serial Port: Configurable for RS232 or RS485 (Modbus RTU supported)
  • USB: For programming and firmware updates

The Ethernet port supports messaging, Class 3 CIP connections, and can function in both client and server roles.

Question: What are the main use cases and typical applications of 2080-LC70-24QWB?
Date Update:27/05/2025
Answer:

The 2080-LC70-24QWB is ideal for:

  • Standalone machine control
  • Material handling systems
  • HVAC and building automation
  • Small process control applications
  • Water/wastewater management systems

It provides the performance and flexibility of a modular PLC with the ease-of-use of a microcontroller — perfect for OEMs and system integrators needing low-cost, scalable control.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
