2080-MOT-HSC | Allen-Bradley | High Speed Counter Plug-In Module
- Regular price
- $182.00
- Sale price
- $182.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2080-MOT-HSC
Description

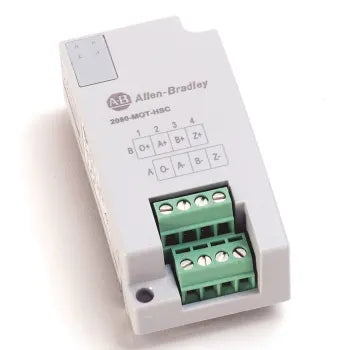

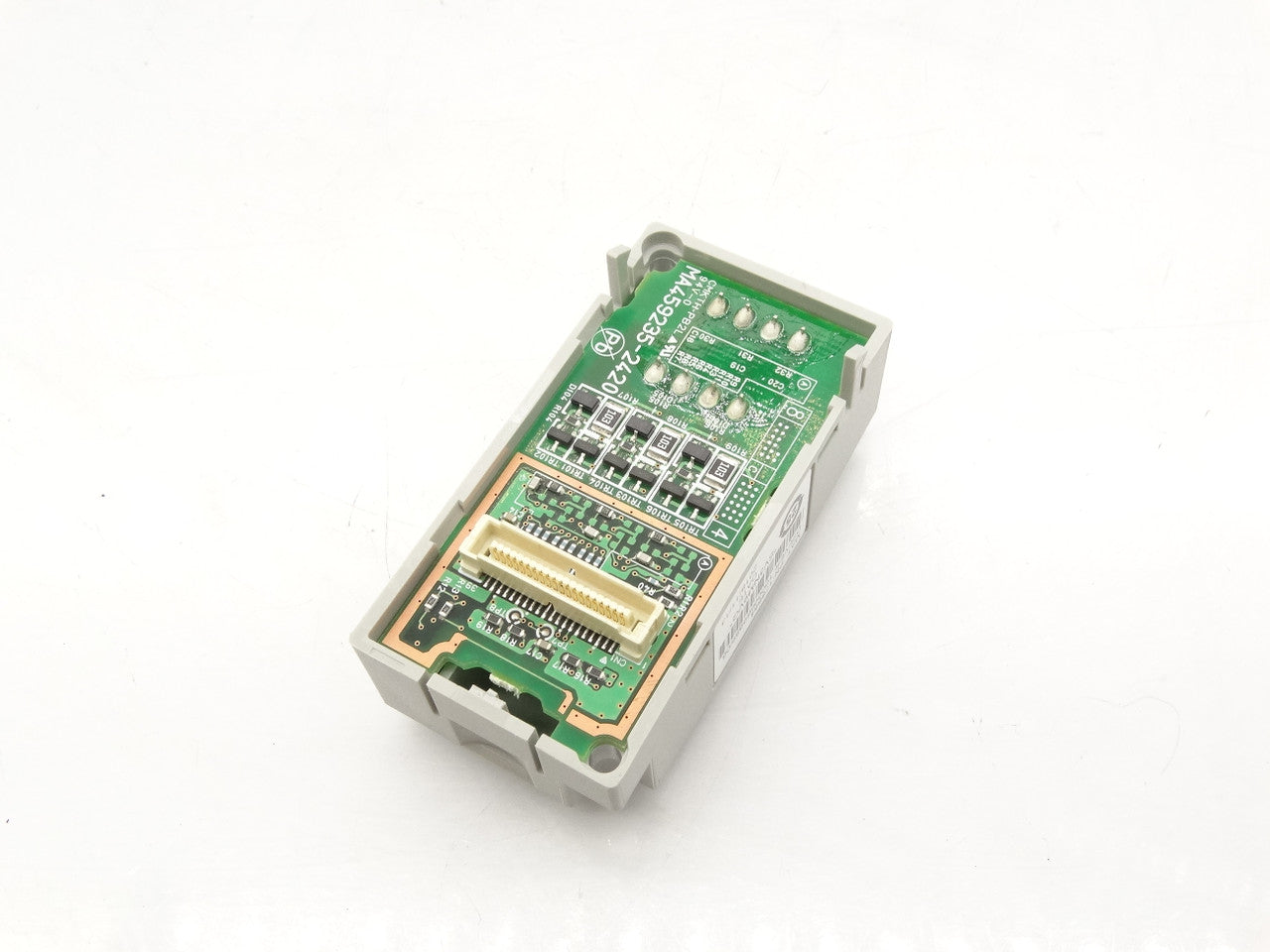

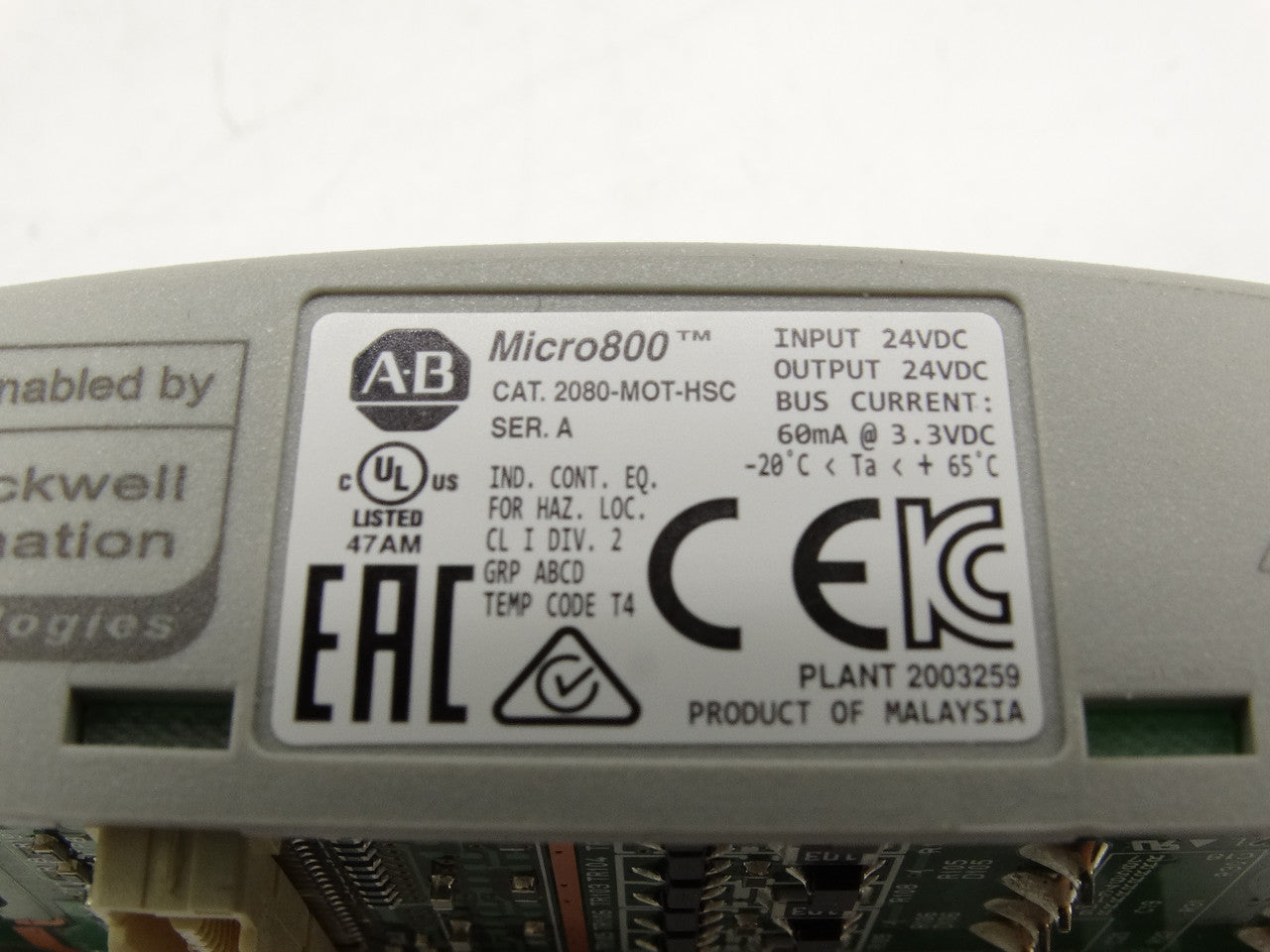

The 2080-MOT-HSC High-Speed Counter Plug-In Module is an Allen-Bradley plug-in module designed for high-speed counter applications. It features 4 inputs and is equipped with a line driver for enhanced performance. The module supports counting operations at a frequency of up to 250 kHz, making it suitable for applications requiring precise and rapid counting capabilities.
Technical Specifications
|
Part # |
2080-MOT-HSC |
|
Manufacturer |
ALLEN BRADLEY |
|
Category |
Controls & Indicators |
|
Subcategory |
Timer/Counter |
|
Time delay at signal exchange |
2 ms |
|
Suitable for safety functions |
Yes |
|
Digital inputs configurable |
Yes |
|
Digital outputs configurable |
Yes |
|
Type of voltage (input voltage) |
DC |
|
Type of output voltage |
DC |
|
Type of digital output |
Other |
|
Type of electric connection |
Screw connection |
|
Wiring category |
2 - on signal ports |
|
Wire size |
Solid: 0.14 mm2 (26 AWG)...1.5 mm2 (16 AWG) @ Rated @ 90 °C (194 °F) insulation maximum, Stranded: 0.14 mm2 (26 AWG)...1.0 mm2 (18 AWG) @ Rated @ 90 °C (194 °F) insulation maximum |
|
Isolation voltage |
Input module: 50V (continuous), Basic Insulation Type, Inputs/Outputs to Backplane. Type tested for 60s @ 720V DC, Inputs/Outputs to Backplane |
|
Redundancy |
No |
|
Short-circuit protection, outputs available |
No |
|
Bus current draw |
60 mA @ 3.3V DC |
|
Width |
31.5 mm |
|
Height |
62 mm |
|
Depth |
20 mm |
|
Shock |
IEC 60068-2-27 (Test Ea, unpackaged shock): 25 g, nonoperating, 35 g (Panel Mount) nonoperating |
|
Vibration |
IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz |
|
Terminal screw torque |
0.22...0.25 Nm (1.95...2.21 lb-in) (using a 2.5 mm (0.10 in.) flat-blade screwdriver) |
|
Surrounding air temperature, max |
65 °C |
|
North American temperature code |
T4 |
|
Emissions |
CISPR 11 (IEC 61000-6-4): Class A |
|
ESD immunity |
IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges |
|
Relative humidity |
IEC 60068-2-30 (Test Db, unpackaged damp heat), 5...95% noncondensing |
|
Conducted RF immunity |
IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz |
|
EFT/B immunity |
IEC 61000-4-4: ±2 kV @ 5 kHz on signal ports |
|
Operating temperature |
-20...65 °C (-4...149 °F): IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock) |
|
On-state voltage drop, max |
0.5V DC |
|
Reverse polarity protection |
None |
|
Output on-state current |
0.5 A |
|
Number of outputs |
16 (1 physical output, 15 virtual) |
|
Output voltage range |
5...30V DC |
|
Off-state voltage, max |
1.0V DC |
|
On-state current, min |
2 mA |
|
Number of inputs |
1 Quadrature (ABZ) differential input |
|
Pulse width, min |
2 μs |
|
Input impedance, nom |
3580 Ohm |
|
Input frequency, max |
250 kHz (50% duty) |
|
Maximum count |
48 Bit |
|
Phase separation, min |
500 ns |
|
Input current range |
2 mA |
|
Input voltage range |
0...30V DC |
|
Off-state leakage current |
0.5 mA |
|
ON-state voltage range |
2.6...30V DC |
Information About 2080-MOT-HSC
The 2080-MOT-HSC is an Allen-Bradley plug-in module designed for high-speed counting applications. It features four inputs and is equipped with a line driver, ensuring reliable performance even in demanding industrial environments. The module is capable of counting at a frequency of up to 250 kHz, providing accurate and precise counting capabilities for various industrial automation tasks.
As a high-speed counter module, the 2080-MOT-HSC is suitable for applications that require rapid and accurate counting of input signals. It is commonly used in industries such as manufacturing, automotive, and logistics, where precise counting and tracking of events are essential for process control and monitoring.
The module is designed to be easily integrated into existing control systems, offering seamless compatibility with Allen-Bradley programmable logic controllers (PLCs) and other automation devices. Its plug-in design allows for quick and convenient installation on compatible backplane systems, reducing downtime and simplifying maintenance procedures.
With its line driver feature, the 2080-MOT-HSC ensures signal integrity and reliability over long distances, making it suitable for applications where signal transmission may be subject to interference or attenuation. The module's robust construction and high-quality components ensure long-term performance and durability in harsh industrial environments.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
Description

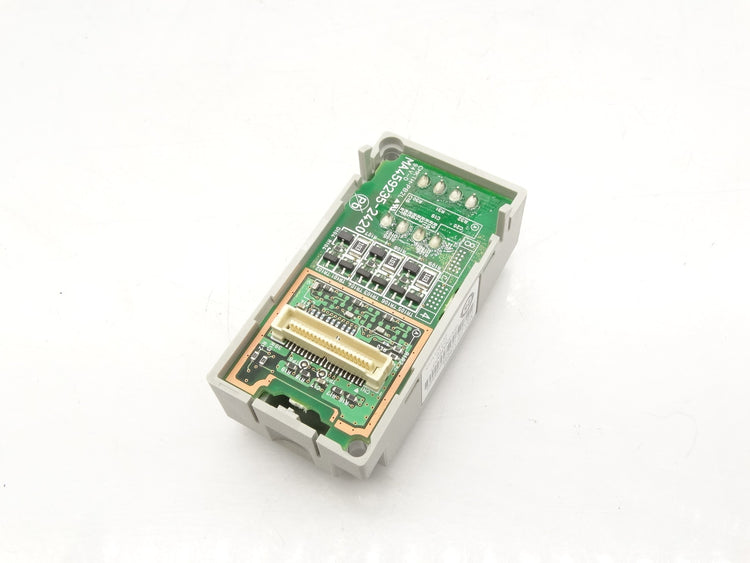

The 2080-MOT-HSC High-Speed Counter Plug-In Module is an Allen-Bradley plug-in module designed for high-speed counter applications. It features 4 inputs and is equipped with a line driver for enhanced performance. The module supports counting operations at a frequency of up to 250 kHz, making it suitable for applications requiring precise and rapid counting capabilities.
Technical Specifications
|
Part # |
2080-MOT-HSC |
|
Manufacturer |
ALLEN BRADLEY |
|
Category |
Controls & Indicators |
|
Subcategory |
Timer/Counter |
|
Time delay at signal exchange |
2 ms |
|
Suitable for safety functions |
Yes |
|
Digital inputs configurable |
Yes |
|
Digital outputs configurable |
Yes |
|
Type of voltage (input voltage) |
DC |
|
Type of output voltage |
DC |
|
Type of digital output |
Other |
|
Type of electric connection |
Screw connection |
|
Wiring category |
2 - on signal ports |
|
Wire size |
Solid: 0.14 mm2 (26 AWG)...1.5 mm2 (16 AWG) @ Rated @ 90 °C (194 °F) insulation maximum, Stranded: 0.14 mm2 (26 AWG)...1.0 mm2 (18 AWG) @ Rated @ 90 °C (194 °F) insulation maximum |
|
Isolation voltage |
Input module: 50V (continuous), Basic Insulation Type, Inputs/Outputs to Backplane. Type tested for 60s @ 720V DC, Inputs/Outputs to Backplane |
|
Redundancy |
No |
|
Short-circuit protection, outputs available |
No |
|
Bus current draw |
60 mA @ 3.3V DC |
|
Width |
31.5 mm |
|
Height |
62 mm |
|
Depth |
20 mm |
|
Shock |
IEC 60068-2-27 (Test Ea, unpackaged shock): 25 g, nonoperating, 35 g (Panel Mount) nonoperating |
|
Vibration |
IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz |
|
Terminal screw torque |
0.22...0.25 Nm (1.95...2.21 lb-in) (using a 2.5 mm (0.10 in.) flat-blade screwdriver) |
|
Surrounding air temperature, max |
65 °C |
|
North American temperature code |
T4 |
|
Emissions |
CISPR 11 (IEC 61000-6-4): Class A |
|
ESD immunity |
IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges |
|
Relative humidity |
IEC 60068-2-30 (Test Db, unpackaged damp heat), 5...95% noncondensing |
|
Conducted RF immunity |
IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz |
|
EFT/B immunity |
IEC 61000-4-4: ±2 kV @ 5 kHz on signal ports |
|
Operating temperature |
-20...65 °C (-4...149 °F): IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock) |
|
On-state voltage drop, max |
0.5V DC |
|
Reverse polarity protection |
None |
|
Output on-state current |
0.5 A |
|
Number of outputs |
16 (1 physical output, 15 virtual) |
|
Output voltage range |
5...30V DC |
|
Off-state voltage, max |
1.0V DC |
|
On-state current, min |
2 mA |
|
Number of inputs |
1 Quadrature (ABZ) differential input |
|
Pulse width, min |
2 μs |
|
Input impedance, nom |
3580 Ohm |
|
Input frequency, max |
250 kHz (50% duty) |
|
Maximum count |
48 Bit |
|
Phase separation, min |
500 ns |
|
Input current range |
2 mA |
|
Input voltage range |
0...30V DC |
|
Off-state leakage current |
0.5 mA |
|
ON-state voltage range |
2.6...30V DC |
Information About 2080-MOT-HSC
The 2080-MOT-HSC is an Allen-Bradley plug-in module designed for high-speed counting applications. It features four inputs and is equipped with a line driver, ensuring reliable performance even in demanding industrial environments. The module is capable of counting at a frequency of up to 250 kHz, providing accurate and precise counting capabilities for various industrial automation tasks.
As a high-speed counter module, the 2080-MOT-HSC is suitable for applications that require rapid and accurate counting of input signals. It is commonly used in industries such as manufacturing, automotive, and logistics, where precise counting and tracking of events are essential for process control and monitoring.
The module is designed to be easily integrated into existing control systems, offering seamless compatibility with Allen-Bradley programmable logic controllers (PLCs) and other automation devices. Its plug-in design allows for quick and convenient installation on compatible backplane systems, reducing downtime and simplifying maintenance procedures.
With its line driver feature, the 2080-MOT-HSC ensures signal integrity and reliability over long distances, making it suitable for applications where signal transmission may be subject to interference or attenuation. The module's robust construction and high-quality components ensure long-term performance and durability in harsh industrial environments.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
