2080-OF2 | Allen-Bradley | Output Module
- Regular price
- $149.00
- Sale price
- $149.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2080-OF2
Description

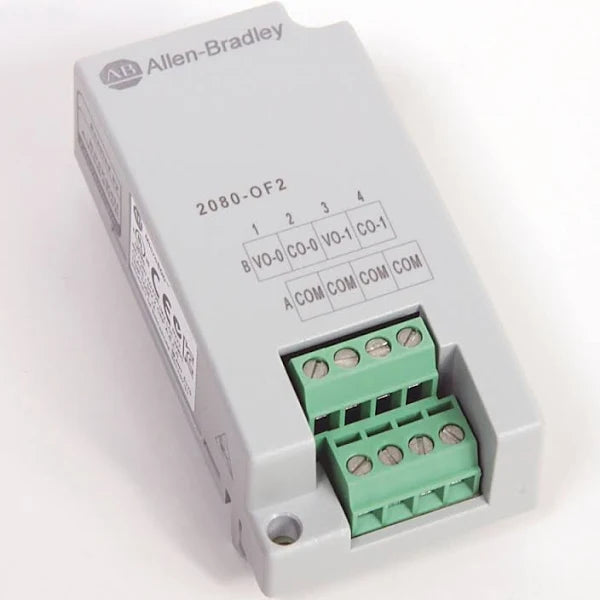

The Allen-Bradley 2080-OF2 is a Micro800 analog output module equipped with two channels. It supports both current and voltage output types, specifically designed for industrial applications. The module operates in a unipolar manner, offering output ranges of 0-10V and 0-20mA. It should be noted that this module is non-isolated, which may affect its compatibility and application in certain environments.
Technical Specifications
Specifications
|
Part # |
2080-OF2 |
|
Manufacturer |
ALLEN BRADLEY |
|
Category |
PLCs/Machine Control |
|
Subcategory |
PC Board PLC/Add-On Board |
|
Number of analogue outputs |
2 |
|
Resolution of the analogue outputs |
12 Bit |
|
Output, current |
Yes |
|
Output, voltage |
Yes |
|
Output signal configurable |
Yes |
|
Analogue outputs configurable |
Yes |
|
Type of electric connection |
Screw connection |
|
Channel to channel isolation |
Non-isolation |
|
Capacitive load, max |
0.1 μF @ voltage outputs |
|
Inductive load, max |
0.01 mH @ current outputs |
|
Input group to bus isolation |
Non-isolation |
|
Wire size |
Solid: 0.14 mm² (26 AWG)...1.5 mm² (16 AWG) @ Rated @ 90°C (194°F) insulation maximum, Stranded: 0.14 mm² (26 AWG)...1.0 mm² (18 AWG) @ Rated @ 90°C (194°F) insulation maximum |
|
SIL according to IEC 61508 |
None |
|
Step response to 63% |
5 ms |
|
Recommended maximum shielded cable length |
10 m |
|
Current load on voltage output, max |
10 mA |
|
D/A Conversion rate (all channels), max |
2.5 ms |
|
Open and short-circuit protection |
Yes |
|
Output overvoltage protection |
Yes |
|
Voltage ranges |
0 V |
|
Current range |
0 mA |
|
Output count range |
0 to 65535 |
|
Overall accuracy |
Voltage terminal: ±1% full scale @ 25°C, Current terminal: ±1% full scale @ 25°C |
|
Surrounding air temperature, max |
65°C |
|
North American temperature code |
T4 |
|
Power consumption |
<60 mA @ 24V |
|
Emissions |
CISPR 11 (IEC 61000-6-4): Class A |
|
ESD immunity |
IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges |
|
EFT/B immunity |
IEC 61000-4-4: ±2 kV @ 5 kHz on shielded ports |
|
Relative humidity |
IEC 60068-2-30 (Test Db, unpackaged damp heat), 5...95% noncondensing |
|
Conducted RF immunity |
IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz |
|
Surge transient immunity |
IEC 61000-4-5: ±2 kV line-earth(CM) on shielded ports |
|
Load range on voltage output |
> 1k Ω @ 10V DC |
|
Non-linearity |
±0.1% @ in percent full scale |
|
Resistive load on current output |
0...500 Ω (includes wire resistance) |
|
Vibration |
IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz |
|
Shock |
IEC 60068-2-27 (Test Ea, unpackaged shock): DIN rail mount: 25 g, nonoperating, Panel Mount: 35 g nonoperating |
|
Mounting torque |
0.2 Nm |
|
Terminal screw torque |
0.22...0.25 Nm (1.95...2.21 lb-in) (using a 2.5 mm (0.10 in.) flat-blade screwdriver) |
Information About 2080-OF2
The Allen-Bradley 2080-OF2 is a Micro800 2-Channel Analog Current/Voltage Output Module designed for industrial applications. This module facilitates analog signal processing by offering two output channels capable of generating current or voltage signals. It operates in a unipolar configuration with output ranges of 0-10V and 0-20mA.
The 2080-OF2 module is engineered to interface with various control systems and equipment, enabling precise control over external devices. It provides flexibility in signal output, allowing users to select between voltage or current output based on the application requirements.
With its two-channel configuration, the module offers versatility in system integration, supporting applications that demand multiple analog output signals simultaneously. The module's design and capabilities make it suitable for a wide range of industrial automation and control tasks.
It is important to note that the 2080-OF2 module operates in a non-isolated manner. Non-isolation implies that there is no electrical isolation between the output channels and other components of the system. Therefore, proper precautions should be taken to ensure system safety and integrity, especially in environments where electrical isolation is required.
The Allen-Bradley 2080-OF2 module adheres to stringent quality standards, ensuring reliability and performance consistency in industrial environments. Its design and construction prioritize durability and longevity, making it suitable for long-term operation in demanding industrial settings.
The module's compact form factor and efficient design make it suitable for integration into space-constrained control cabinets and enclosures. Its compatibility with the Micro800 platform ensures seamless integration and interoperability with other Allen-Bradley control and automation products.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
