2080-PS120-240VAC | Allen-Bradley Micro800 External AC Power Supply
- Regular price
- $119.00
- Sale price
- $119.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2080-PS120-240VAC
Description
The Allen-Bradley 2080-PS120-240VAC Micro 800 Programmable Logic Controller's specifications include 120/240VAC to 24VDC Power Supply for Controller and Exp I/O.
Technical Specifications
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number/Catalog No. | 2080-PS120-240VAC |
| Product Type | Programmable Controller External AC Power Supply |
| Dimensions HxWxD | 3.55 x 1.78 x 3.15 in. |
| Supply Voltage Range | 100V-120V AC, 1A ; 200-240V AC, 0.5A |
| Supply Frequency | 47-63 Hz |
| Supply Power | 24V DC, 1.6A |
| Inrush Current max. | 24A @ 132V for 10 ms; 40A @ 263V for 10 ms |
| Power Consumption | 38.4W @ 100V AC, 38.4W @ 240V AC |
| Power Dissipation | 45.1W @ 100V AC, 44W @ 240V AC |
| Output Ratings | 24V DC, 1.6A, 38.4W max. |
| Enclosure Type Rating | Meets IP20 |
| Series | Micro800 |
Information About 2080-PS120-240VAC

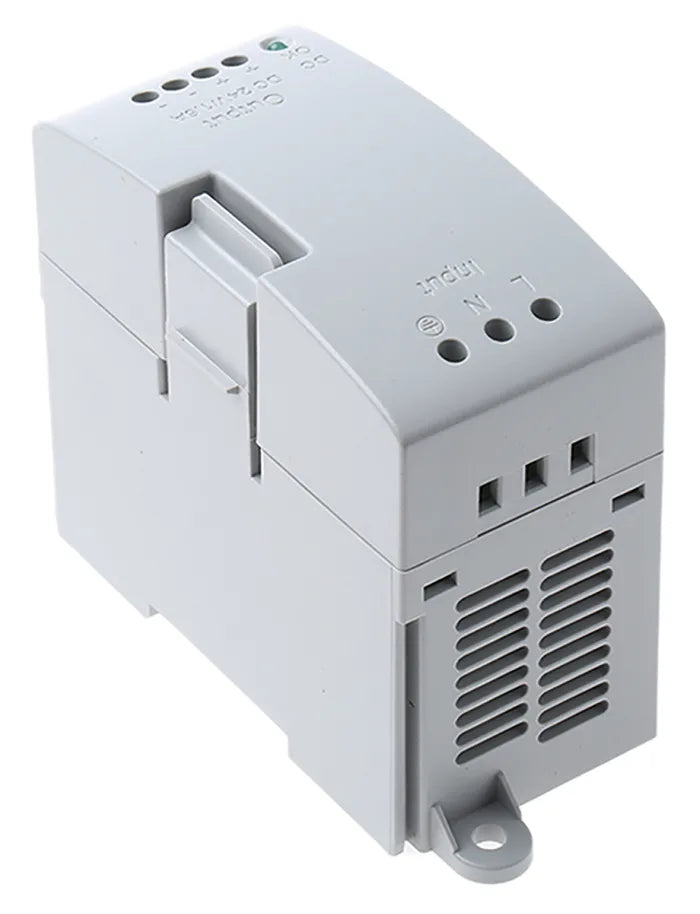

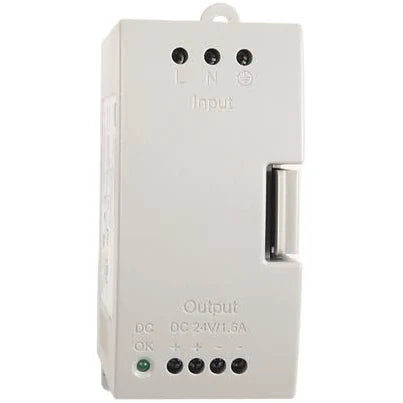

The Allen-Bradley 2080-PS120-240VAC is a Micro800 external AC optional power supply for the Micro800 series controllers. The supply voltage ranges of this power supply are 100-120V AC at 1 A and 200-240V AC at 0.5 A. Note that the fluctuation in the voltage source of this power supply must be within a range of 85-264V only. Its supply power is 24V DC at 1.6 A and its supply frequency is 47-63 Hz. The maximum inrush currents of this module are 24 A at 132V RMS and 40 A at 263V both for 10 ms. The power dissipations of the input power are 45.1 W at 100V AC and 44 W at 240V AC, while the power consumptions of the output power are both 38.4 W at 100V AC and 240V AC.
This power supply also has a continuous isolation voltage of 250 V that is a reinforced insulation type from primary to secondary. This isolation has been type-tested at 2300V AC from primary to secondary for 60 seconds and at 1480V AC from primary to earth ground. The enclosure rating of the 2080-PS120-240VAC power supply is the IP20 and it has maximum output ratings of 24V DC, 38.4 W, and 1.6 A. It has a wiring category of 2 on its power ports and the compatible wire sizes are the 22-14 AWG solid copper wire and the 22-16 stranded copper wire that is rated at a maximum insulation of 90 oC. Mounting of the 2080-PS120-240VAC power supply is done via DIN rail or panel mounting.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
