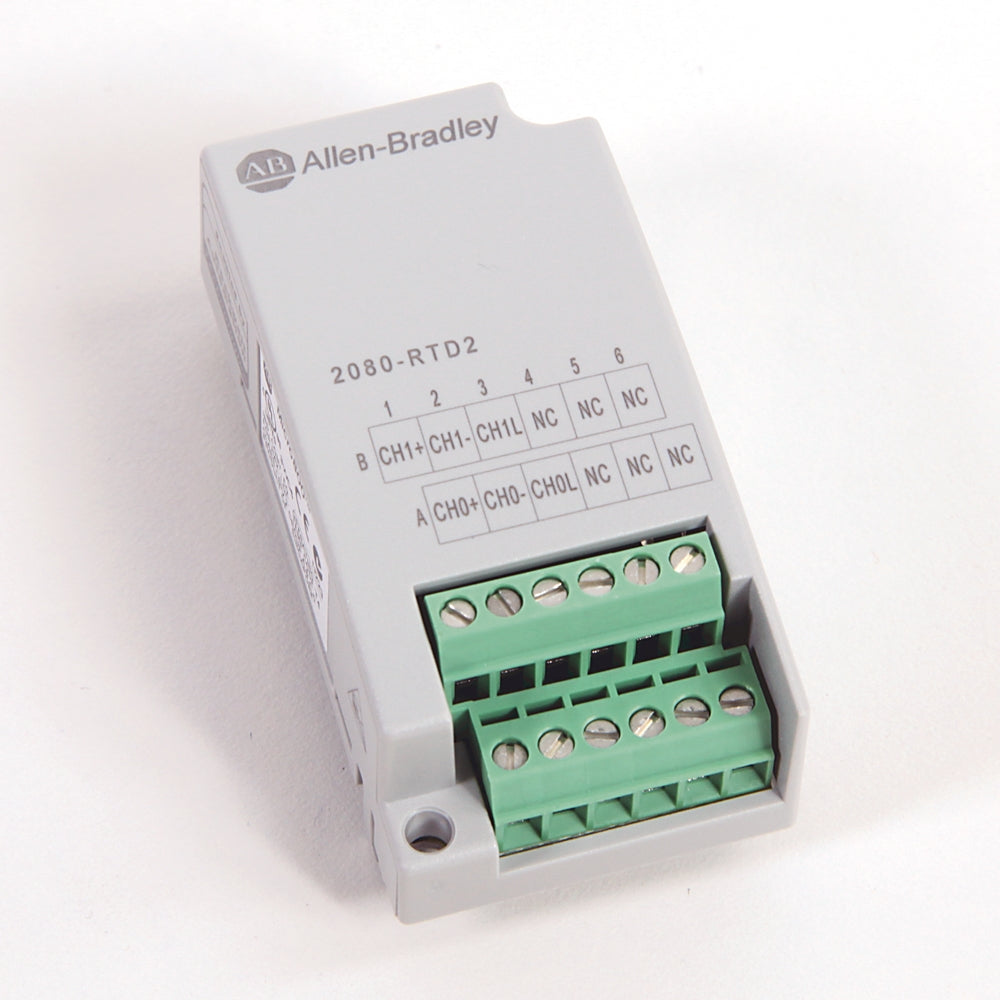

2080-RTD2 | Allen Bradley Resistance Thermometer Detector Input

Description

The Allen-Bradley 2080-RTD2 is a Resistance Temperature Detector (RTD) input module designed for Micro800 controllers. It supports two RTD input channels for precise temperature measurement in industrial applications. Compact and reliable, it provides accurate data for monitoring and control processes.

Technical Specifications

Information About 2080-RTD2

The Allen-Bradley 2080-RTD2 is a plug-in module designed for the Micro800 series programmable controllers, specifically the Micro820, Micro830, and Micro850 models. This module enables the controllers to interface with Resistance Temperature Detectors (RTDs), facilitating precise temperature measurements in industrial applications.

Key Features and Specifications

• Model: 2080-RTD2
• Type: Plug-in RTD Input Module
• Channels: 2 RTD input channels
• Input Impedance: >5 MΩ
• Accuracy: ±1.0 °C at 25 °C (77 °F)
• Operating Temperature Range: -20...65 °C (-4...149 °F)
• Power Consumption: 40 mA at 3.3V
• Mounting: Designed for plug-in installation into compatible Micro800 controllers
• Certifications:
  • North American Hazardous Location Approval: CL I, DIV 2, GP A, B, C, D
  • Emissions: CISPR 11 (IEC 61000-6-4): Class A
  • ESD Immunity: IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges
  • EFT/B Immunity: IEC 61000-4-4: ±2 kV at 5 kHz on shielded ports
  • Conducted RF Immunity: IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz to 80 MHz
  • Surge Transient Immunity: IEC 61000-4-5: ±2 kV line-earth (CM) on shielded ports
  • Radiated RF Immunity: IEC 61000-4-3: 10V/m with 1 kHz sine-wave 80% AM from 80 to 2000 MHz
  • Vibration: IEC 60068-2-6 (Test Fc, operating), 2 G at 10...500 Hz
  • Shock: IEC 60068-2-27 (Test Ea, unpackaged shock): DIN rail mount: 25 g, nonoperating; Panel mount: 35 g, nonoperating

Benefits

• Precise Temperature Measurement: Enables accurate monitoring of temperature-sensitive processes.
• Versatile RTD Support: Compatible with various RTD types, offering flexibility in sensor selection.
• Compact Design: Plug-in module format saves space and simplifies installation.
• Robust Performance: Built to withstand industrial environments with high immunity to electrical noise and transients.
• Hazardous Location Approval: Suitable for use in Class I Division 2 hazardous locations, enhancing safety in specific environments.

Applications

• Industrial Automation: Ideal for temperature monitoring in manufacturing processes.
• HVAC Systems: Used for precise temperature control in heating, ventilation, and air conditioning systems.
• Energy Management: Assists in monitoring and controlling temperature in energy production and distribution systems.
• Laboratory Equipment: Ensures accurate temperature measurements in scientific research and testing environments.

The 2080-RTD2 module enhances the functionality of Micro800 controllers by providing reliable and accurate temperature inputs, making it a valuable component in various industrial and commercial applications.
