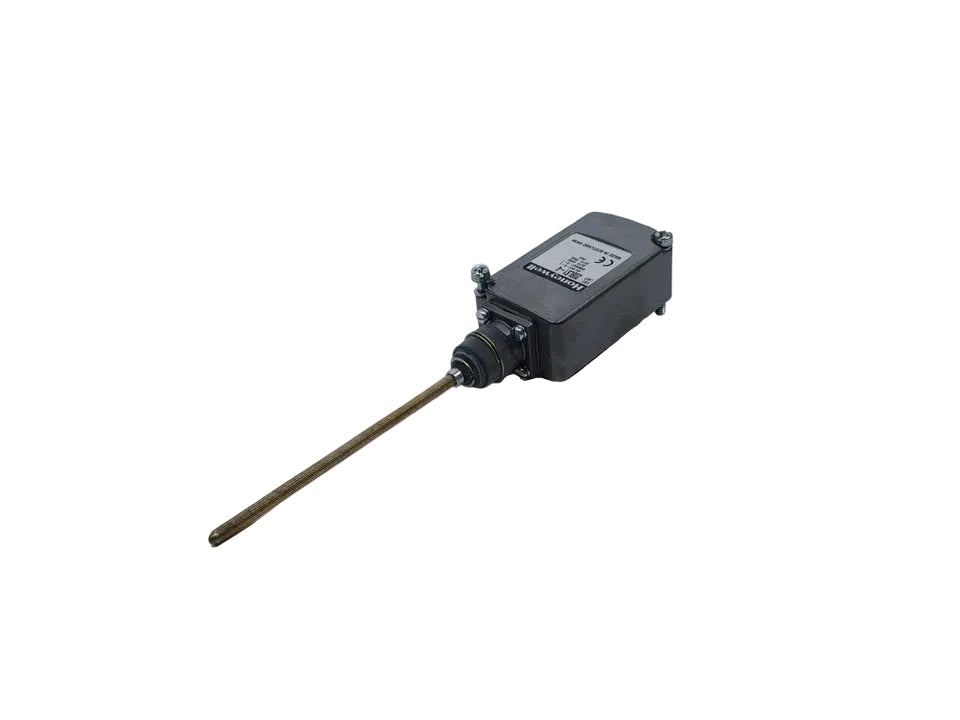

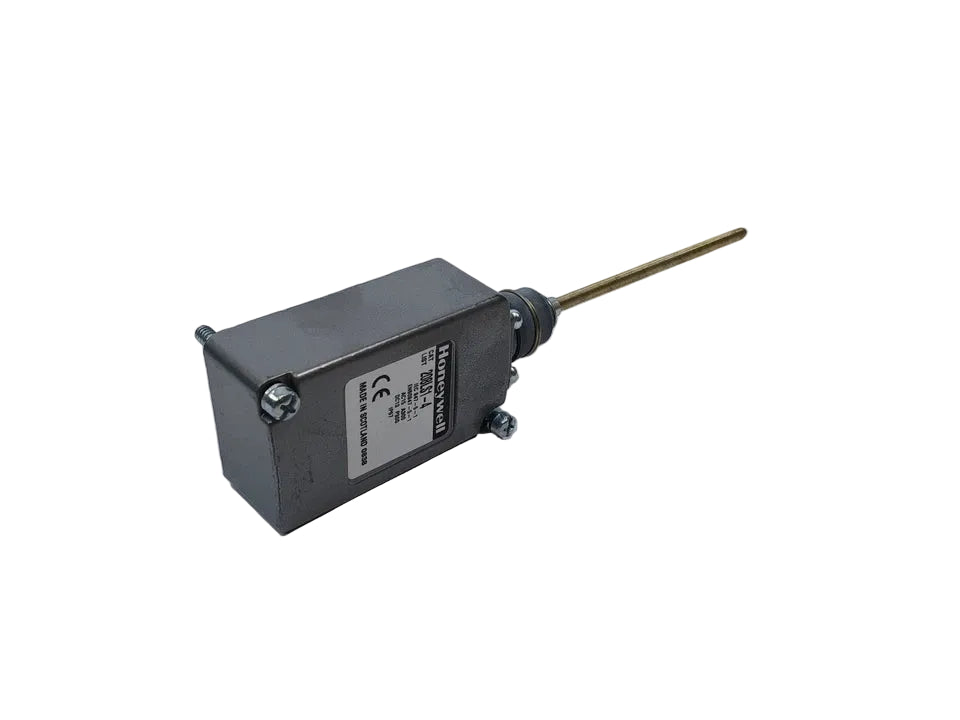

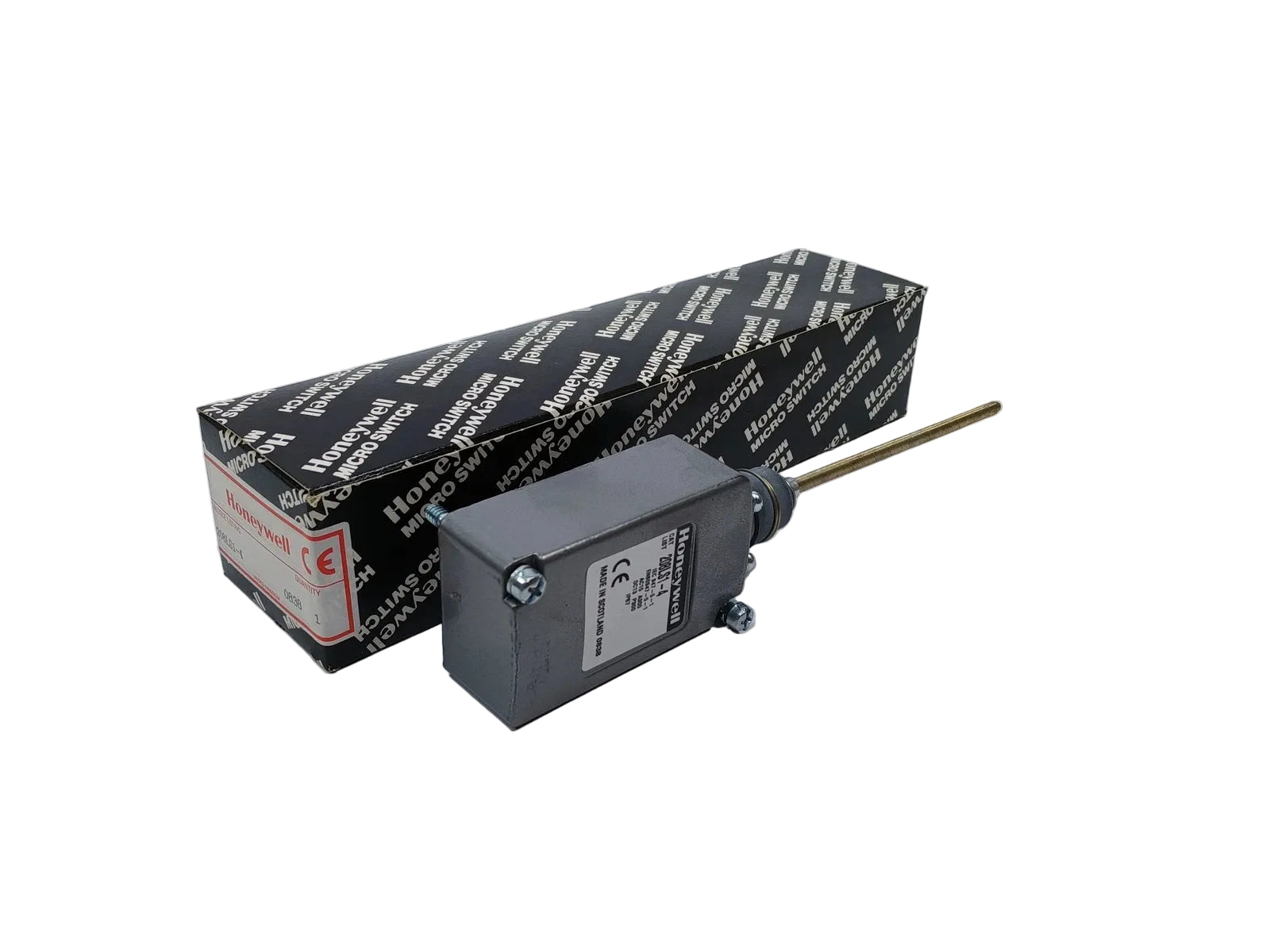

208LS1-4 | Honeywell LS Series SPDT Double-Break Limit Switch 10A
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 208LS1-4
Description
The Honeywell 208LS1-4 is a heavy-duty limit switch designed for industrial position sensing and machine control applications. It features a side rotary actuator with a fixed lever and steel roller, combined with an SPDT double-break contact mechanism rated at 10A. Its die-cast housing and multiple NEMA ratings provide dependable operation in demanding industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Electromechanical Components |
| Part Number | 208LS1-4 |
| Subcategory | Limit Switches |
| Series | LS Series |
| Contact Form | SPDT (Double Break) |
| Current Rating | 10 A |
| Actuator Type | Side Rotary, Fixed Lever with Steel Roller |
| Conduit Size | 1/2–14 NPT |
| Housing Material | Epoxy Coated Zinc or Aluminum Die Cast |
| NEMA Rating | 1, 3, 4, 6, 13 |
| Operating Temperature (Standard) | -29°C to +71°C |
| Operating Temperature (High Temp) | -29°C to +120°C |
| Mounting Style | Heavy-Duty Industrial Mount |
| Product Type | Industrial Limit Switch |
| Agency Approvals | UL File 12252, CSA File 57325 (–L suffix models) |
| Weight | 2.50 lb |
Information About 208LS1-4
The 208LS1-4 is part of Honeywell’s LS Series limit switches, engineered for rugged mechanical durability and reliable electrical switching. It incorporates a single pole double throw (SPDT) double-break contact design for enhanced circuit interruption and improved load handling. The side rotary head with fixed steel roller lever allows flexible actuation from cams or moving machine components. Constructed with an epoxy-coated die-cast housing and 1/2–14 NPT conduit entry, it is suitable for industrial applications requiring sealed protection and long service life.
Key Features:
- SPDT Double-Break Contacts: Provides improved electrical reliability and load interruption.
- 10A Electrical Rating: Supports industrial control circuits with stable performance.
- Side Rotary Fixed Lever with Steel Roller: Enables smooth and accurate mechanical actuation.
- Die-Cast Metal Housing: Epoxy-coated zinc or aluminum construction for durability.
- Multiple NEMA Ratings (1, 3, 4, 6, 13): Suitable for harsh and washdown environments.
- 1/2–14 NPT Conduit Entry: Allows secure and protected wiring installation.
- Wide Temperature Range: Operates from -29°C to +71°C (standard) or up to +120°C (high temp).
- Industrial LS Series Design: Built for heavy-duty automation and machinery control.
The 208LS1-4 delivers the reliability and precision required for industrial position detection and heavy-duty machine control systems.
