Part #: 2090-K2CK-D15M Manufactured by: Allen-Bradley
$169.00
$169.00
4 in Stock
Condition: New – Open box
Shipping calculated at checkout.
Product Overview

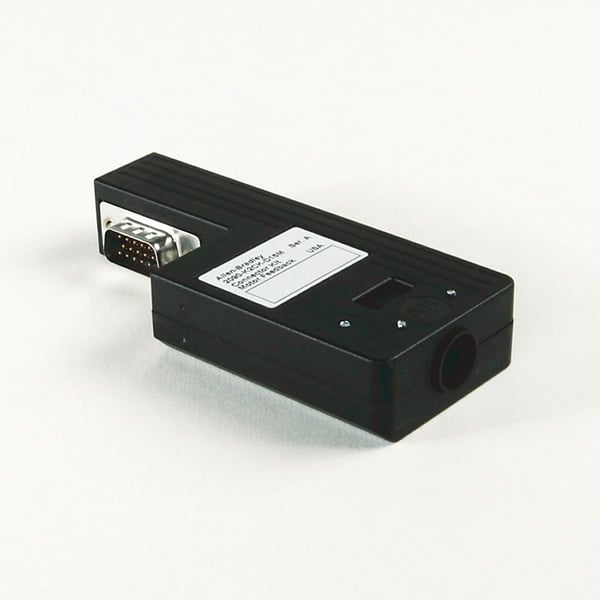

Allen-Bradley 2090-K2CK-D15M Low-profile Connector Kit, D-sub Connector for Motor Feedback, 15-Pin, Male
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Do you need help?

Call our Sales Manager
phone
+1 (828) 222-3490
Mon./Sat.: 7:00AM - 8:00PM
Write to us now
email
sales@iqelectro.com
Mon./Sat.: 7:00AM - 12:00PM
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 2090-K2CK-D15M
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 2090-K2CK-D15M

Description / Specifications

Description

The Allen-Bradley 2090-K2CK-D15M is a low-profile 15-pin male D-Sub connector designed for motor feedback applications in Kinetix servo drive systems. This part number supports reliable transmission of encoder and feedback signals required for precise motion control. Its industrial-grade construction ensures stable connectivity in demanding automation environments.





Technical Specifications

Condition New/Never Used Surplus
Brand Allen-Bradley
Category Motor Feedback Connector
Part Number 2090-K2CK-D15M
Subcategory D-Sub Feedback Connectors
Connector Type 15-pin, male, D-Sub
Type Low-profile feedback connector
Drive Family Compatibility Kinetix 2000, Kinetix 300/350
Standard KC
Application Motor feedback and encoder signal transmission
Mounting Style Panel or cable-mounted (depending on assembly)
Construction Industrial-grade connector housing




Information About 2090-K2CK-D15M

The 2090-K2CK-D15M is part of Allen-Bradley’s 2090-Series connectivity components, engineered to interface motor feedback devices with Kinetix 2000 and Kinetix 300/350 drives. The 15-pin D-Sub configuration provides a standardized platform for encoder signal routing, enhancing compatibility and simplifying installation. The connector’s low-profile design allows clean cable management within tight control enclosures or machinery frames. Typical applications include servo positioning systems, motor-driven automation equipment, and precision motion systems requiring consistent feedback communication.

Key Features:

  • 15-Pin D-Sub Interface: Supports comprehensive motor feedback and encoder signal routing.
  • Male Connector Design: Ensures secure mating with standard female D-Sub feedback ports.
  • Low-Profile Construction: Facilitates installation in compact or high-density control layouts.
  • Kinetix Drive Compatibility: Designed for use with Kinetix 2000 and Kinetix 300/350 drive families.
  • Durable Build Quality: Withstands industrial environments and vibration common in motion systems.
  • Standardized Connectivity: Industry-recognized D-Sub format simplifies wiring and replacement.

The 2090-K2CK-D15M delivers the reliability and precision required for stable feedback communication in servo and motion control applications.

Frequently Asked Questions about 2090-K2CK-D15M
Question: What is the 2090-K2CK-D15M used for?
Date Update:17/06/2025
Answer:

The 2090-K2CK-D15M is a male D-sub connector with 15 pins used for motor feedback in Allen-Bradley motion control systems. It transmits feedback signals such as encoder position, speed, and direction from the motor to the servo drive. This connector plays a critical role in closed-loop control, ensuring high-precision motor performance. It is commonly used in automation systems that demand accurate synchronization, including robotics, packaging, and high-speed material handling. Its D-sub format provides a standardized interface with secure and robust connectivity.

Question: How to connect the 2090-K2CK-D15M?
Date Update:17/06/2025
Answer:

To connect this feedback connector:

  • Align the male D-sub interface with a compatible 15-pin female port on the drive or interface module.
  • Gently insert and tighten the thumbscrews to secure the connection.
  • Ensure cable strain relief to avoid pressure on the terminals.
  • Verify signal integrity using standard motor diagnostic tools or drive feedback monitoring.
  • Only connect when power is off to avoid potential damage or signal interference.
Question: What drives are compatible with this connector?
Date Update:17/06/2025
Answer:

The 2090-K2CK-D15M is compatible with:

  • Kinetix 2000 drives
  • Kinetix 300 drives
  • Kinetix 350 drives

These platforms support high-speed feedback interfaces for precise motion control in integrated servo systems.

Question: Can this connector be used with encoders?
Date Update:17/06/2025
Answer:

Yes, this connector is specifically designed to handle encoder signals. It provides dedicated pinouts for differential encoder feedback such as A/B/Z channels, power supply lines, and shield connections. When connected properly, it ensures low-noise, high-resolution feedback, enabling accurate motor control. The D-sub configuration allows easy identification and troubleshooting in encoder-integrated systems.

Question: Is the 2090-K2CK-D15M still in production?
Date Update:17/06/2025
Answer:

No, the 2090-K2CK-D15M will be discontinued as of July 31, 2024, according to an official lifecycle notice from Rockwell Automation. After that date, it will no longer be available through standard distribution channels. Customers should review ongoing projects and replace this component in active BOMs to avoid supply interruptions.
