2090-UXPC-D0903 | Allen-Bradley Ultra Series Interface Cable
- Regular price
- $134.00
- Sale price
- $134.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2090-UXPC-D0903
Description

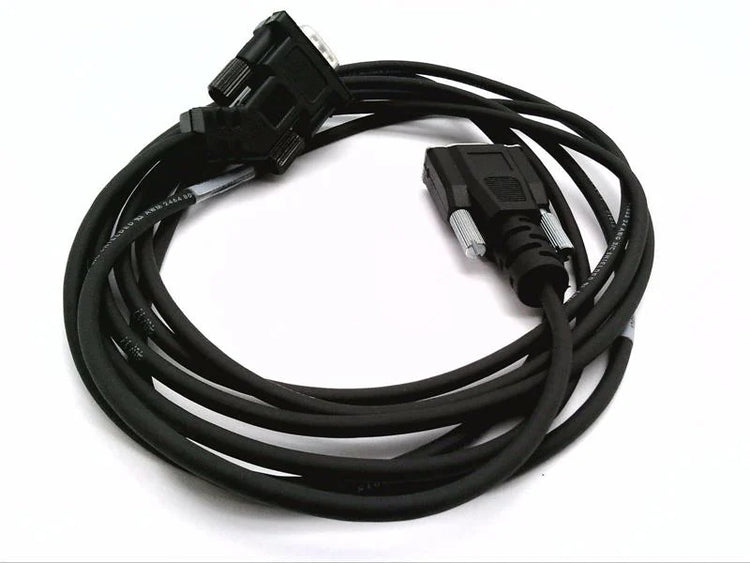

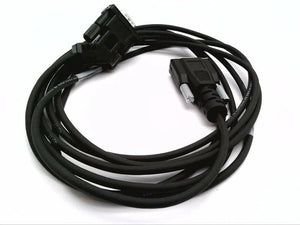

The Allen-Bradley 2090-UXPC-D0903 is a high-performance interface cable for the Ultra 3000 and Ultra 5000 servo drive series. Designed for reliable serial communication, it features a 9-pin D-shell connector and a 3-meter length, making it suitable for a variety of industrial servo control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Servo Products
|
| Part Number | 2090-UXPC-D0903 |
| Subcategory | Servo Cable and Accessory |
| Series | 2090 Ultra Series |
| Cable Type | Serial Communication Cable |
| Compatible Drives | Ultra 3000, Ultra 5000 |
| Connector Type | 9-Pin D-Shell (45° D / Straight D) |
| Positions | 9/9 |
| Cable Length | 3 meters (approx. 9.8 ft) |
| Voltage Rating | 30 Volts |
| Temperature Rating | 90°C |
| Color | Black |
| Mounting Type | Panel/Enclosure Mountable |
| Compliance | KC Certified |
| Weight | 0.3900 lb |
Information About 2090-UXPC-D0903
The 2090-UXPC-D0903 cable is part of the Allen-Bradley 2090 Ultra series cable family and is engineered specifically for Ultra 3000 and Ultra 5000 motion control systems. With 9/9-position D-sub connectors and a 45-degree D-shell to straight D-shell configuration, this cable ensures secure and flexible connection between controllers and drives. It supports serial communication and is constructed to withstand industrial conditions, including high temperatures up to 90°C. Its 3-meter length provides ample reach within control cabinets or between equipment. The cable is rated for 30V applications and complies with KC standards, ensuring safe operation in demanding environments.
Key Features:
- Designed for Ultra 3000/5000: Provides reliable interface connectivity specifically for Allen-Bradley Ultra-series servo drives.
- 9-Pin D-Shell Connectors: Ensures robust and widely compatible connection for RS-232/serial data exchange.
- Angled/Inline Configuration: Features one 45° angled and one straight D-shell connector for space-constrained routing.
- 3-Meter Cable Length: Offers extended reach for mounting flexibility within and between panels.
- 30V Voltage Rating: Built for low-voltage communication and control signal transmission.
- Durable Industrial Construction: Rated for up to 90°C for dependable performance in elevated temperature environments.
- Mountable and Secure: Locking D-sub connectors ensure tight connections even in vibration-prone installations.
- Black Insulated Jacket: Industrial-grade shielding and insulation help reduce signal interference.
- Standards Compliance: Meets KC certification standards for safety and quality in industrial use.
- Versatile Application: Ideal for motion control systems, servo tuning, drive configuration, and diagnostics.
The 2090-UXPC-D0903 delivers robust and flexible serial communication for Ultra servo systems, ensuring precise control and easy configuration in modern motion automation environments.
