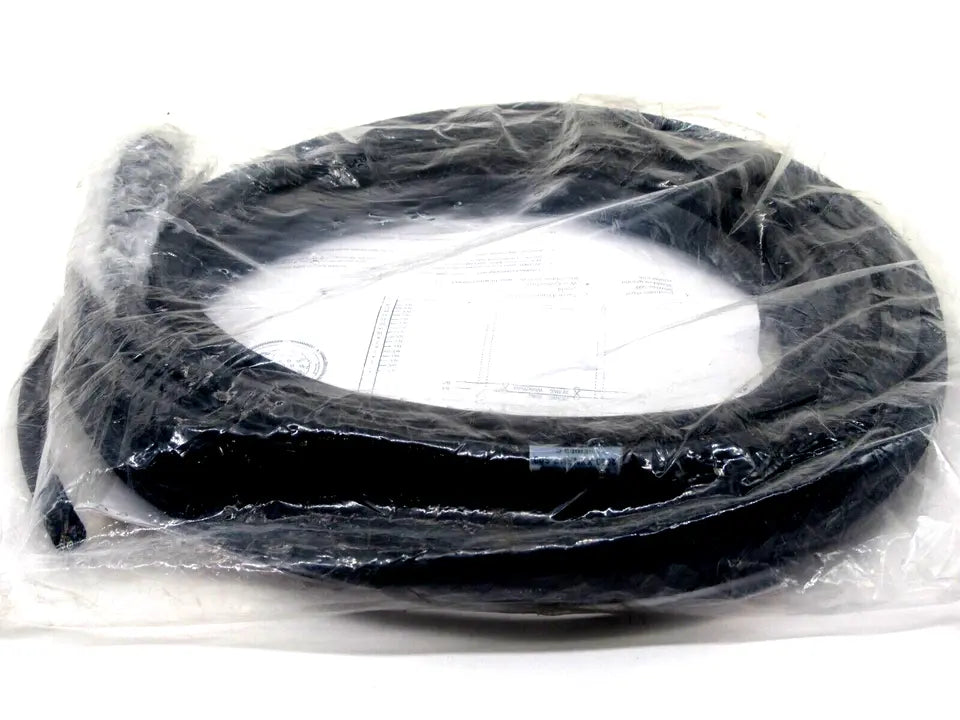

Part #: 2090-XXNFMP-S09 Manufactured by: Allen-Bradley
$234.00
$234.00
7 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 2090-XXNFMP-S09 is an integral component of the MP Series, specifically a 9-meter Feedback Cable. Design...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Do you need help?

Call our Sales Manager
phone
+1 (828) 222-3490
Mon./Sat.: 7:00AM - 8:00PM
Write to us now
email
sales@iqelectro.com
Mon./Sat.: 7:00AM - 12:00PM
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 2090-XXNFMP-S09
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 2090-XXNFMP-S09

Description / Specifications

Description

The Allen-Bradley 2090-XXNFMP-S09 is a motor feedback cable designed for use with Kinetix motion control systems. It provides secure transmission of feedback signals between servo motors and drives, ensuring precise motion control.





Technical Specifications

Manufacturer Allen-Bradley
Manufacturer Part Number 2090-XXNFMP-S09
Series MP Series
Cable Length 9 meters (29.5 feet)
Connector Type on One End Feedback Connector
Operating Temperature Range Standard industrial range
Material High-quality materials




Information About 2090-XXNFMP-S09

The 2090-XXNFMP-S09 is part of the Allen-Bradley 2090 series of motor/drive interconnect cables, developed for Kinetix servo systems. This feedback cable is designed to transmit encoder and resolver signals from the motor to the drive, enabling accurate position and speed control. It features a standard M23 connector and durable industrial-grade construction for reliable signal integrity. The cable is engineered to minimize electrical noise and support high-performance motion profiles. Compatible with Allen-Bradley Kinetix drives and servo motors, the 2090-XXNFMP-S09 plays a critical role in maintaining system precision and performance.

Key Features:

  • Design: Feedback cable for Kinetix motion control systems.
  • Connector: Equipped with M23-style connectors for secure connections.
  • Signal Integrity: Supports transmission of encoder and resolver feedback signals.
  • Compatibility: Designed for use with Allen-Bradley Kinetix drives and servo motors.
  • Performance: Ensures precise speed and position control in motion applications.
  • Durability: Industrial-grade construction to withstand demanding environments.
  • Noise Protection: Shielded design reduces electrical interference.
  • Application Range: Ideal for robotics, packaging, and material handling systems.

The 2090-XXNFMP-S09 delivers the reliability and precision required for advanced motion control in industrial automation.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

Frequently Asked Questions about 2090-XXNFMP-S09
Question: What is the 2090-XXNFMP-S09 and what are its main features?
Date Update:26/05/2025
Answer:

The 2090-XXNFMP-S09 is a high-quality feedback cable from Allen-Bradley’s MP Series, designed for use in industrial motion control systems. It features a 9-meter length, a bayonet-style connector on the motor end, and flying leads on the drive end for flexible integration. Key features include support for high-resolution and incremental encoder feedback, a 300V rating, a thermoplastic elastomer jacket for industrial durability, and UL AWM compliance for safety and reliability.

Question: How long is the 2090-XXNFMP-S09 cable?
Date Update:26/05/2025
Answer:

This cable has a length of 9 meters (29.5 feet), making it ideal for systems where components are spaced apart. The extended length provides flexibility in installation, especially in large machines or distributed layouts. It ensures uninterrupted feedback signal transmission over long distances.

Question: What type of connectors does the cable have?
Date Update:26/05/2025
Answer:

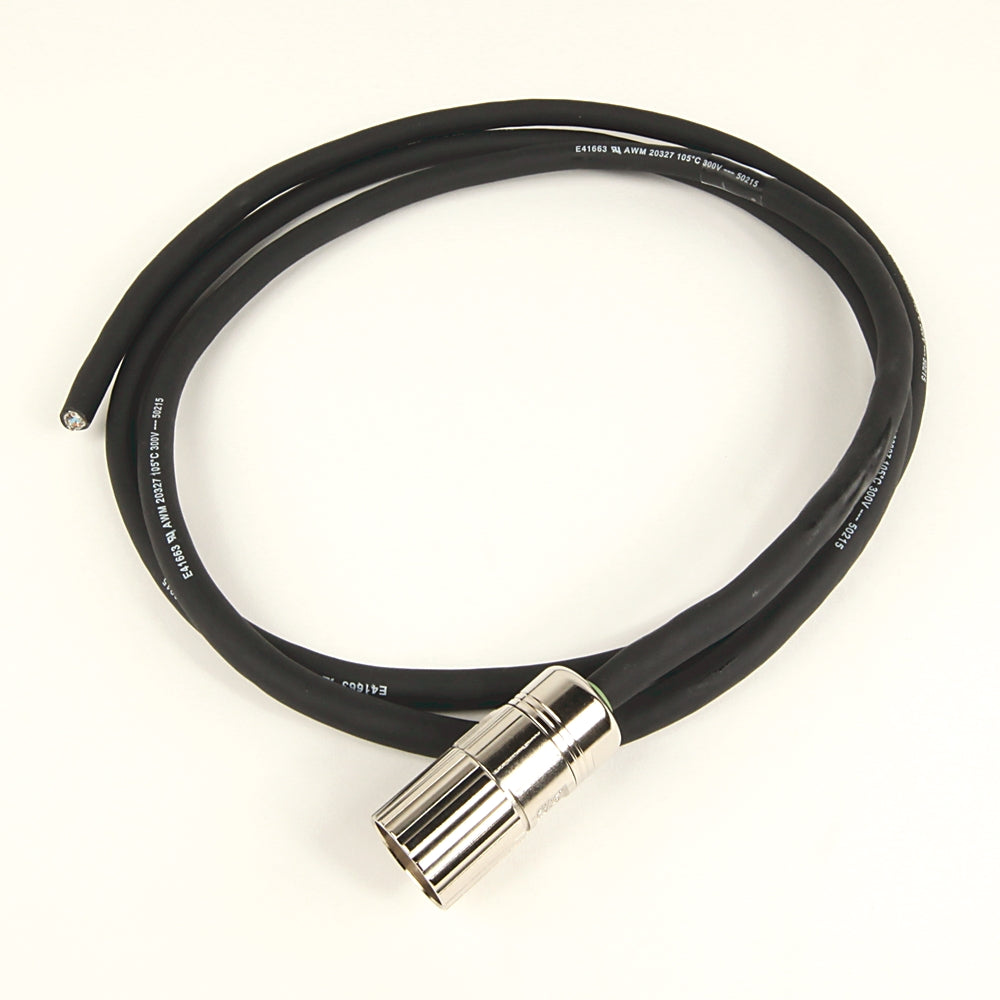

The 2090-XXNFMP-S09 features a bayonet-style motor-end connector and flying leads on the drive end. This configuration allows easy connection to MP-series motors and customizable termination at the drive end. The secure bayonet connection ensures vibration-resistant locking in demanding environments.

Question: Is the cable durable for industrial environments?
Date Update:26/05/2025
Answer:

Yes, the cable features a thermoplastic elastomer jacket designed for industrial-grade durability. It is resistant to oil, moisture, and physical abrasion, making it suitable for harsh production environments. The cable is also UL registered to AWM standards, confirming its safety and performance in industrial settings.

Question: Is the 2090-XXNFMP-S09 still in production?
Date Update:26/05/2025
Answer:

Yes, the Allen-Bradley 2090-XXNFMP-S09 feedback cable is still in production. It holds an “Active Mature” lifecycle status, which means it is currently available but may be nearing the later stages of its product lifecycle. Users can continue to source and use it in industrial applications, but should monitor for future migration guidance.
