Part #: 2093-AC05-MP5 Manufactured by: Allen-Bradley
Regular price
$5,199.00
Sale price
$5,199.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
2093-AC05-MP5: Allan Bradley 3Kilowatts Integrated Axis Module - 0.9 Kilowatts
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 2093-AC05-MP5
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

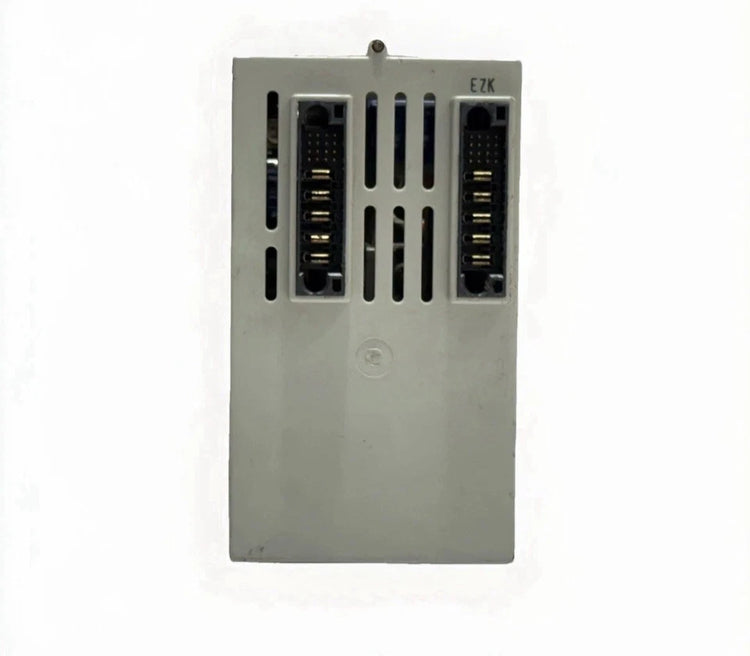

2093-AC05-MP5 | Allen-Bradley Kinetix 2000 230V/3kW Integrated Axis Module, 0.9kW

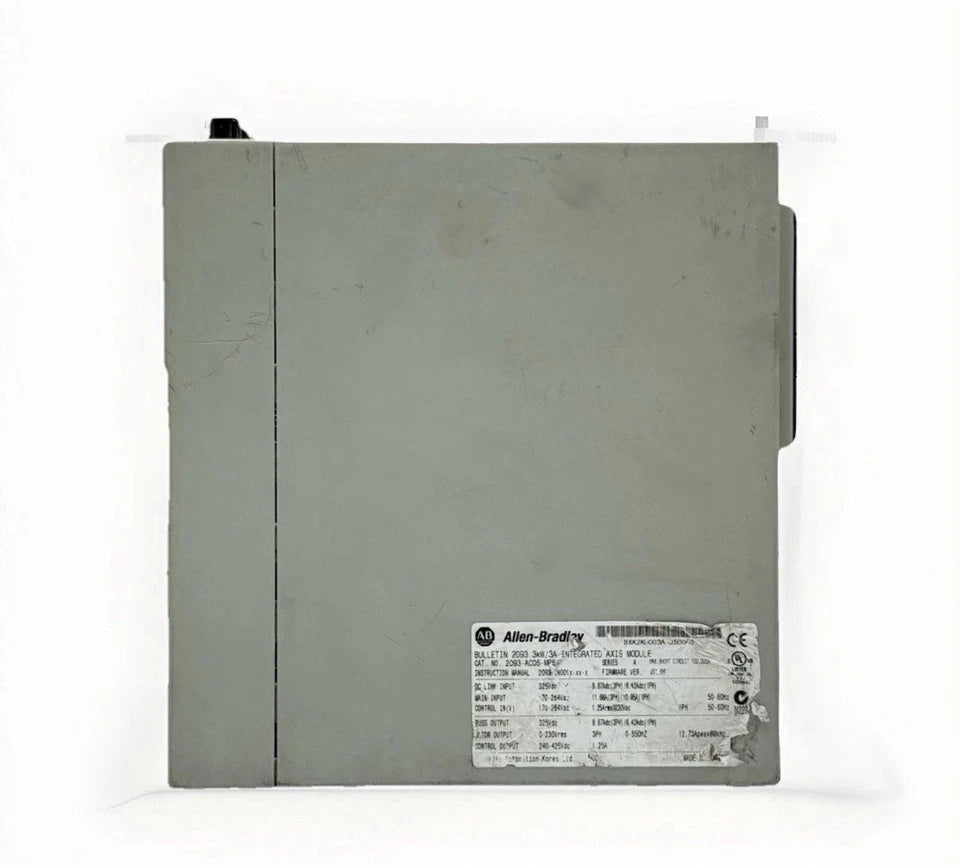

    2093-AC05-MP5 | Allen-Bradley Kinetix 2000 230V/3kW Integrated Axis Module, 0.9kW

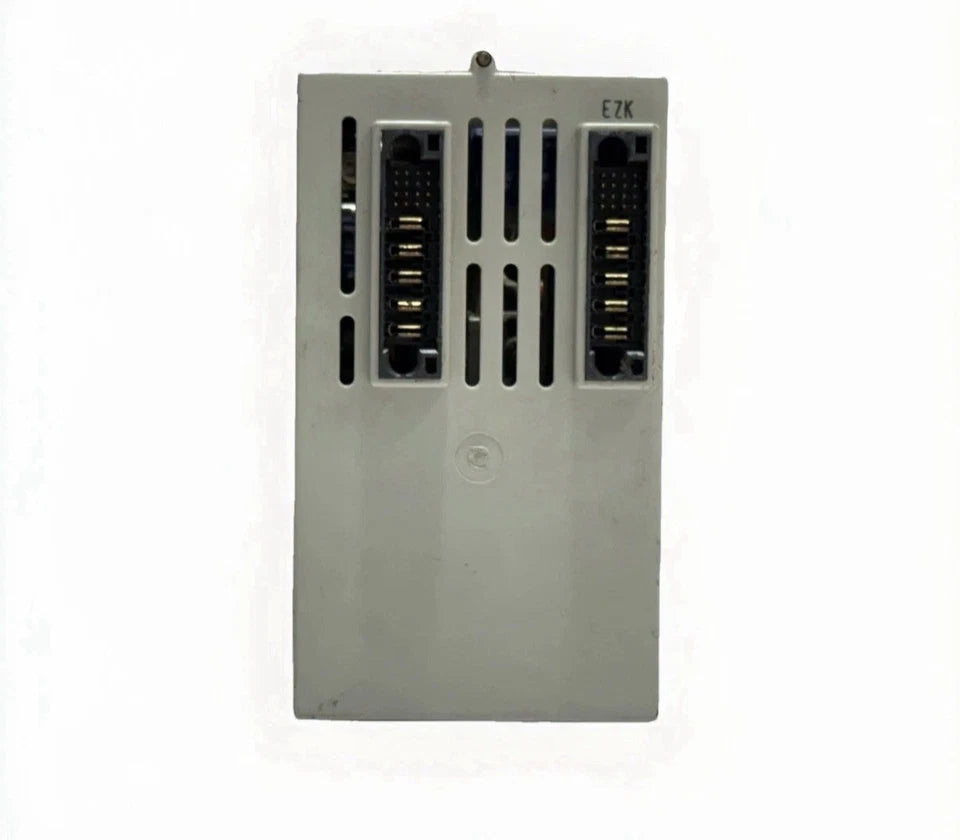

2093-AC05-MP5 | Allen-Bradley Kinetix 2000 230V/3kW Integrated Axis Module, 0.9kW

Product Description P/N: 2093-AC05-MP5

Description / Specifications

Description

The 2093-AC05-MP5 is a Kinetix 2000 Integrated Axis Module (IAM). This moduleis a 230VAC, 3-Phase rated IAM with input frequency range of 47-63 Hz. This module has a Bus output voltage of 325 VDC with continuous output power to bus of 3.0 kW; Peak output power to bus of 6.0 kW and Continuous output current to bus of 9.67 A. It supports velocity loop bandwidth of 500 Hz and Current loop bandwidth of 860 Hz and PWM frequency of 8 kHz.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 2093-AC05-MP5
Product Description Integrated Axis Module
AC input voltage range 170…264Vrms, 3-Phase
AC input voltage, nominal 230 VAC
DC Input voltage 240-375 VDC
Continuous power output to bus 3.0 kW
Continuous output current to bus 9.67 A
Peak power output 6.0 kW
Bus overvoltage 425V DC
Voltage Rating 230 VAC
Bus undervoltage 137.5V DC
Sub Brand Kinetix 2000
Type Servo Drive
Special Features Integrated Axis Module
Control Sercos Interface
Wattage 900 W
Installation Clearance 50.8 mm (2.0 in.)
Minimum Enclosure Depth 235 mm (9.25 in.)
Mounting location Power Rail





Information About 2093-AC05-MP5

The Allen-Bradley 2093-AC05-MP5 is a Kinetix 2000 Integrated Axis module (IAM). This module is a 200 V class module with input voltage range of 170-264 VAC, 3-phase along an input frequency of 47-63 Hz. It has an input current requirement of 11.66 (nominal) and maximum inrush current of 34.0 A.

Output characteristics of the 2093-AC05-MP5 Integrated Axis Module includes 325 VDC bus output voltage; 9.67 A continuous output current to bus; 19.34 A intermittent output current to bus; continuous output power to bus of 3.0 kW and Peak output power to bus of 6.0 kW. It has an efficiency of 95%. The 2093-AC05-MP5 detects bus overvoltage at 425 VDC while bus undervoltage @ 137.5 VDC.

The 2093-AC05-MP5 being an Integrated Axis Module (IAM) is installed at the left most of the power rail. Succeeding or adjacent modules must be such as the axis module, shunt module, slot filler and other modules are installed by determining the level of Power utilization or Current rating.

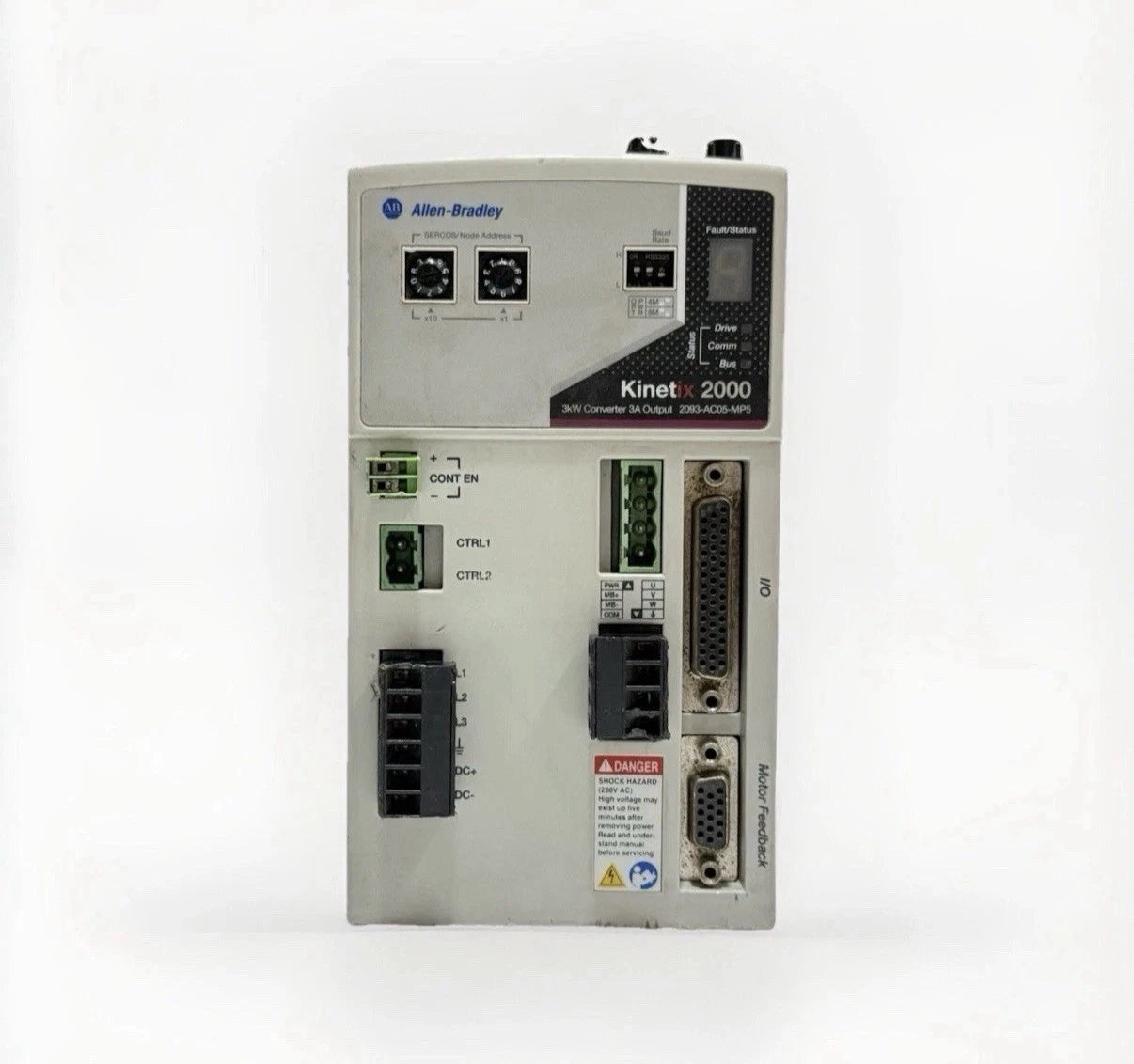

The 2093-AC05-MP5 front panel is installed with a variety of components. It has a variety of terminal strips such as Contactor Enable (CED) Connector; Control Power (CPD) Connector; Main Power (IPD) Connector; Motor Brake (BC) Connector; Motor Power (MP) Connector; I/O and Machine Feedback (IOD/AF) Connector and Motor Feedback (MF) Connector. It also has LED status indicators specifically, Drive Status LED, COMM Status LED and Bus Status LED along a Seven Segment Fault Status Display.

Serial Real-Time Communication System (SERCOS) connector is situated on top of the module. SERCOS Receive (Rx) Connector and SERCOS Transmit (Tx) Connector are sitting beside each other while SERCOS baud rate and optical power switches and SERCOS node switches are located beside the 7-segment display.

The 2093-AC05-MP5 is an integrated axis module with Input voltage range of 170- 264VAC rms, input Frequency range of 47-63 Hz, Input Voltage, dc (common bus follower) of 240V-375 VDC Input current, dc (common bus follower) of 6.42 A Three-phase power input, nominal Bus output voltage of 325Vdc with a Continuous Power Output to bus of 3.0KW, Peak power output of 6.0KW, Efficiency of 95%, and a Converter Capacitance of 540 NF. The 2093-AC05-MP5 comes with an IAM Inverter power, with a bandwidth velocity loop of 500Hz which is similar to most of the 2093 IAM series, and a Nominal Input Voltage of 325V dc, a Continuous Current (rms) of 3.0 A which is higher the MP1 and MP2, in the series. With a Peak current (rms of 6.0 A and Peak output current time, max of 3 s from 0% drive utilization (0% soak). It has an Efficiency of 98% like other products in the series and also the same Capacitance of 200 NF, and Capacitive Energy Absorption of 7.5 J like the rest of the MP series.

The 2093-AC05-MP5, like other MPs in the series like the 2093-AC05-MP1 and the 2093-AC05-MP2 comes with a unique Shunt Module (2093-ASP06), and unlike the rest in its series, the 2093-AC05-MP5 has an Auxillary Control Power of 0.90 A. The Main and Control Power Input for the 2093-AC05-MP5 is a 264V ac three-phase, and it also comes with a DC common bus fuse, with Contactor Rating of 264V ac three-phase. The Transformer Specification for the Control Power Input has an input volt-amperes of 500VA, an Input voltage of 230V ac, and Output voltage of 240V ac which is similar to other MPs in the series. The Power Dissipation specification for the 2093-AC05-MP5 Power Converter in percentage of rated power output (Watts) for the Three-phase are 20% (7.0), 40%(10.5), 60%(14.0), 80%(17.4), 100%(20.9) and for the single phase are 20%(5.8), 40%(8.0), 60%(10.3), 80%(12.6), 100%(14.8) respectively. The Power Dissipation for the 2093-AC05-MP5 Power Inverter in a percentage of rated power output (Watts) are 20% (31.6), 40%(33.6), 60%(35.6), 80%(37.6), 100%(39.6) respectively.

The 2093-AC05-MP5 also comes with the same Environmental Specifications for all members of the series, with an Ambient Temperature for operational (0 to 50 deg. C (32 to 22 deg. F)) and non-operational (-40 to 85 deg. C (-40 to 85 deg. F)) mode, and Relative Humidity for operational (5 to 95% noncondensing) and non-operational (5 to 95% noncondensing) mode. With a vibration of 5...55 Hz @ 0.35 mm (0.014 in.) double amplitude, continuous displacement; 55...500 Hz @ 2.0 g peak constant Acceleration, and Shock of 15 g, 11 ms half-sine pulse (3 pulses in each direction of 3 mutually perpendicular directions), and a B31: DSP and SERCOS pins, anti-dust and anti-humidity 1B73LSE: Power Rail connector pins, Converter, Inverter, Shunt, Power Rail, and Slot Filler PCB assemblies, clear UL creepage and clearance issue and Conformal Coating. It also has a Weight of 1.32 (2.9) Kg/Ibs, and also a Line Filter (2090-XXLF-TC316 (Tesch NF310-16)) of 4 mm2 (10 AWG) Recommended Wire Size.
