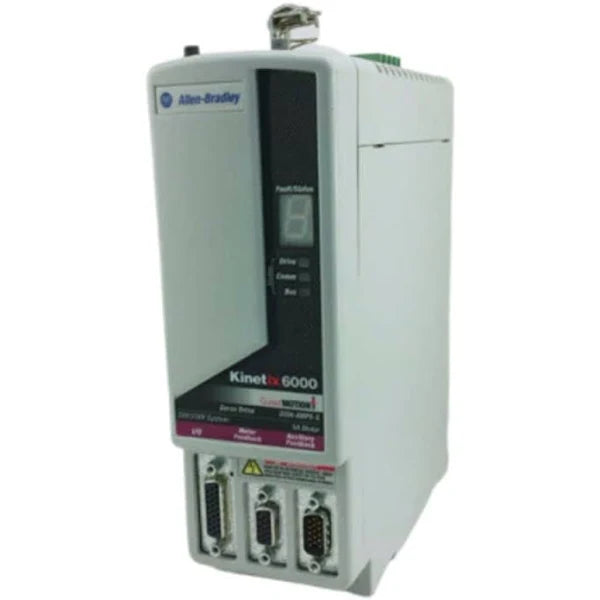

2094-AMP5-S | Allen-Bradley Kinetix 6000 Axis Module w/Safety 200/230V 5A Inverter
- Regular price
- $1,499.00
- Sale price
- $1,499.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2094-AMP5-S
Description
The Allen-Bradley 2094-AMP5-S is a Kinetix 6000 series multi-axis servo drive. Rated at 230V and 5A, it provides compact, efficient, and safe servo axis control with up to 98% operating efficiency.
Technical Specifications
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number | 2094-AMP5-S |
| Module Type | AM 200 Volt Class |
| Nom Input Voltage | 650 Volts DC |
| Continuous Current (rms) | 7.4 Amperes |
| Continuous Current (0-peak) | 5.2 Amperes |
| Bandwidth Velocity Loop | 500 Hertz |
| Bandwidth Current Loop | 1300 Hertz |
| Efficiency | 98% |
Information About 2094-AMP5-S
The 2094-AMP5-S is part of the Allen-Bradley Kinetix 6000 family, designed to deliver integrated motion solutions within the Logix platform. This 200V-class axis module supports 7.4A continuous current (RMS) and 5.2A peak current, with a nominal output power of 1.2 kW. It features advanced loop performance with a 500 Hz velocity loop bandwidth and 1300 Hz current loop bandwidth for precise motion control. Safety is enhanced through Safe Torque Off (STO) functionality, certified to Category 3 (CAT 3) and Performance Level e (PLe). Designed for modular installations, up to seven 2094-AMP5-S units can be mounted on an 8-axis power rail alongside an IAM module. Compact and lightweight at 1.46 kg, it simplifies wiring, diagnostics, and integration, making it well-suited for high-performance automation applications.
Key Features:
- Series: Kinetix 6000 multi-axis servo drive for integrated Logix motion platforms.
- Voltage class: 200V-class drive rated for 230V DC operation.
- Current capacity: Continuous current 7.4A RMS (5.2A peak) with nominal 1.2 kW output power.
- Efficiency: Up to 98% efficiency for reduced energy consumption and lower operating costs.
- Control performance: Velocity loop bandwidth of 500 Hz and current loop bandwidth of 1300 Hz ensure precise motion control.
- Safety: Built-in Safe Torque Off (STO) meets CAT 3 / PLe standards, preventing unintended torque application.
- Mounting: Modular design supports up to seven units on a single 8-axis rail with IAM module integration.
- Connectivity: Equipped with motor power and motor/brake connectors for flexible installation.
- Environmental: Operates in 0–50 °C (32–122 °F) ambient conditions for industrial use.
- Design: Compact size (3.2 lb / 1.46 kg) reduces panel footprint and simplifies installation.
The 2094-AMP5-S delivers the reliability and precision required for high-performance motion control in industrial automation with integrated safety and modular flexibility.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
