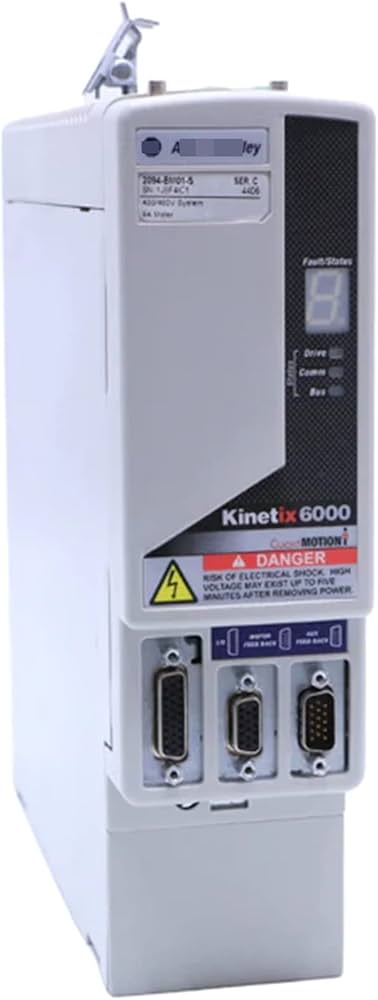

2094-BM01-S | Allen-Bradley Kinetix 6000 Axis Module 400/460V, 9A Inverter, Safety
- Regular price
- $1,599.00
- Sale price
- $1,599.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2094-BM01-S
Description
The Allen-Bradley 2198-H070-ERS is a Kinetix 5500 Ethernet/IP servo drive designed for controlling servo and induction motors. It delivers a peak output current of 57.5 A with continuous output power ranging from 7.0 to 14.6 kW, depending on supply voltage. Compact and efficient, this drive is widely used in motion control applications across manufacturing and industrial automation.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Allen-Bradley |
| Internal shunt peak power | 5.6 kW |
| Internal Shunt continuous power | 50W |
| Nom Drive Voltage | 360-480 Volts (3 Phase) |
| Voltage Class | 400V |
| Power Dissipation | 57-126 Watts |
| Continuous power out (nom) | 3.9 kW |
| Peak Current | 8.6 A |
| Continuous Output Current | 6.1 A |
| Product Description | Integrated Axis Module |
| Manufacturer | Rockwell Automation |
| Efficiency | 98% |
| Part Number/Catalog No. | 2094-BM01-S |
| Module Type | AM 400 Volt Class |
| Nom Input Voltage | 650 Volts DC |
| Continuous Current (rms) | 6.1 Amperes |
| Continuous Current (0-peak) | 8.6 Amperes |
| Bandwidth Velocity Loop | 500 Hertz |
| Bandwidth Current Loop | 1300 Hertz |
| Internal Shunt (Continuous Power) | 50 Watts |
| Internal Shunt (Peak Power) | 5.6 Kilowatts |
| Internal Shunt Resistor | 115 Ohms |
| Series | A, B, C and D |
Information About 2094-BM01-S
The 2198-H070-ERS is part of the Kinetix 5500 servo drive family, optimized for space-saving installation and high-performance motion control. It operates with 3-phase AC input voltages from 195–264V (240V nominal) or 324–528V (480V nominal), supporting frequencies of 47–63 Hz. The drive provides 23 A continuous RMS output current and 57.5 A peak RMS output current, achieving 97% efficiency and a short-circuit current rating of 200,000 A symmetrical. Built-in Safe Torque-Off (STO) functionality is certified to ISO 13849-1 PLd/SIL 2, enhancing safety in machine operations. The unit also features Load Observer technology for real-time adaptive tuning, reducing commissioning time and improving system responsiveness. With dual Ethernet ports, it supports linear and Device Level Ring (DLR) topologies, enabling integrated safety and motion control over EtherNet/IP. Designed with a common AC/DC bus system, single-cable digital feedback, and zero-stack drive mounting, the 2198-H070-ERS simplifies wiring, reduces panel space requirements, and enhances scalability for multi-axis applications.
Key Features:
- Design: Compact Frame Size 3 servo drive with 3.35 x 8.9 x 11.57 in dimensions and 9 lbs weight.
- Power Range: 7.0 kW at 240V and up to 14.6 kW at 480V three-phase supply.
- Output Current: 23 A continuous RMS, 57.5 A peak RMS (81.3 A at 0-peak).
- Performance: Velocity loop bandwidth of 300 Hz and current loop bandwidth of 1000 Hz.
- Connectivity: Dual Ethernet ports for linear or DLR topologies with EtherNet/IP motion control.
- Safety: Integrated Safe Torque-Off certified ISO 13849-1 PLd/SIL 2; supports hardwired safety.
- Technology: Load Observer and disturbance rejection features for adaptive tuning and performance.
- Durability: 97% efficiency, 200 kA short-circuit rating, and operating temperature range of 0–50 °C.
The 2198-H070-ERS provides compact, high-performance, and safe motion control for demanding automation and manufacturing environments.
