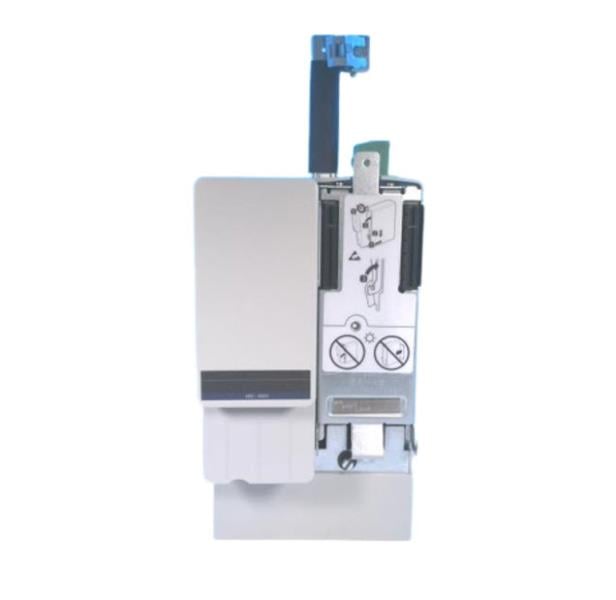

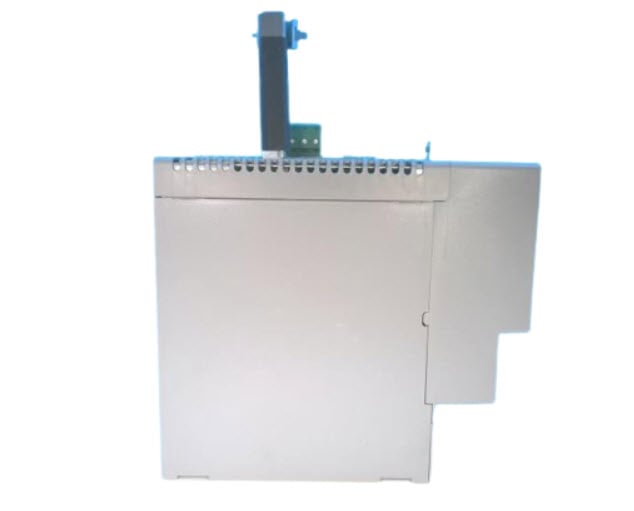

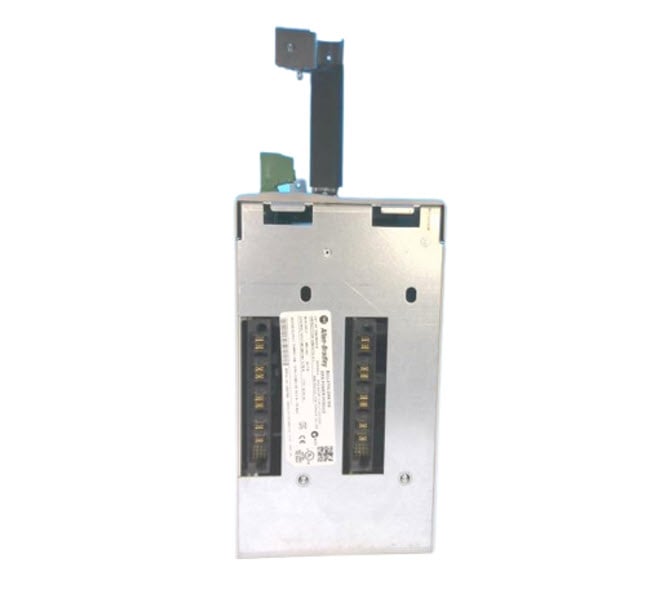

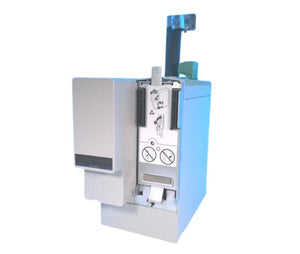

2094-BM03-M | Allen-Bradley Power Module
- Regular price
- $3,472.00
- Sale price
- $3,472.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2094-BM03-M
Description
The 2094-BM03-M is a Kinetix 6000 series power module from Allen-Bradley, designed for multi-axis servo drive systems. It supports up to 3 kW continuous output power and operates on a 460V AC input.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
|
Category |
Drives
|
|
Part Number |
2094-BM03-M |
| Subcatecory |
Servo Drives & Controls
|
| Control Type | SERCOS Interface |
| Output | 30A (460V Input Voltage) |
| Output Voltage | 460 VAC |
| Standard | C-TICK,CE,CUL,KC,UL |
| Type | Servo Drive |
| Wattage | 13 kW |
| Input Voltage | 650 VDC |
| Output Current | 30 A Continuous, 75 A Peak |
| Temperature Rating | 0 - 50°C |
| Power Module | Axis Module |
| Weight | 4.54 kgs |
Information About 2094-BM03-M
The Allen-Bradley 2094-BM03-M is a Kinetix 6200/6500 series axis power module designed for multi-axis servo drive systems. Operating at 460V AC, it delivers a continuous output power of 13.5 kW with a continuous current rating of 21.2 A and a peak current of 53.0 A. The module boasts an efficiency of 98% and features an internal shunt with a continuous power rating of 200W and a peak power of 22.5 kW. Its compact design facilitates seamless integration into industrial automation setups, providing reliable performance for demanding motion control applications.
Key Features:
-
Voltage Class: 400V
-
Continuous Output Power: 13.5 kW
-
Continuous Current Output: 21.2 A
-
Peak Current Output: 53.0 A
-
Efficiency: 98%
-
Internal Shunt Continuous Power: 200W
-
Internal Shunt Peak Power: 22.5 kW
-
Short-Circuit Current Rating: 200,000 A (rms) symmetrical
