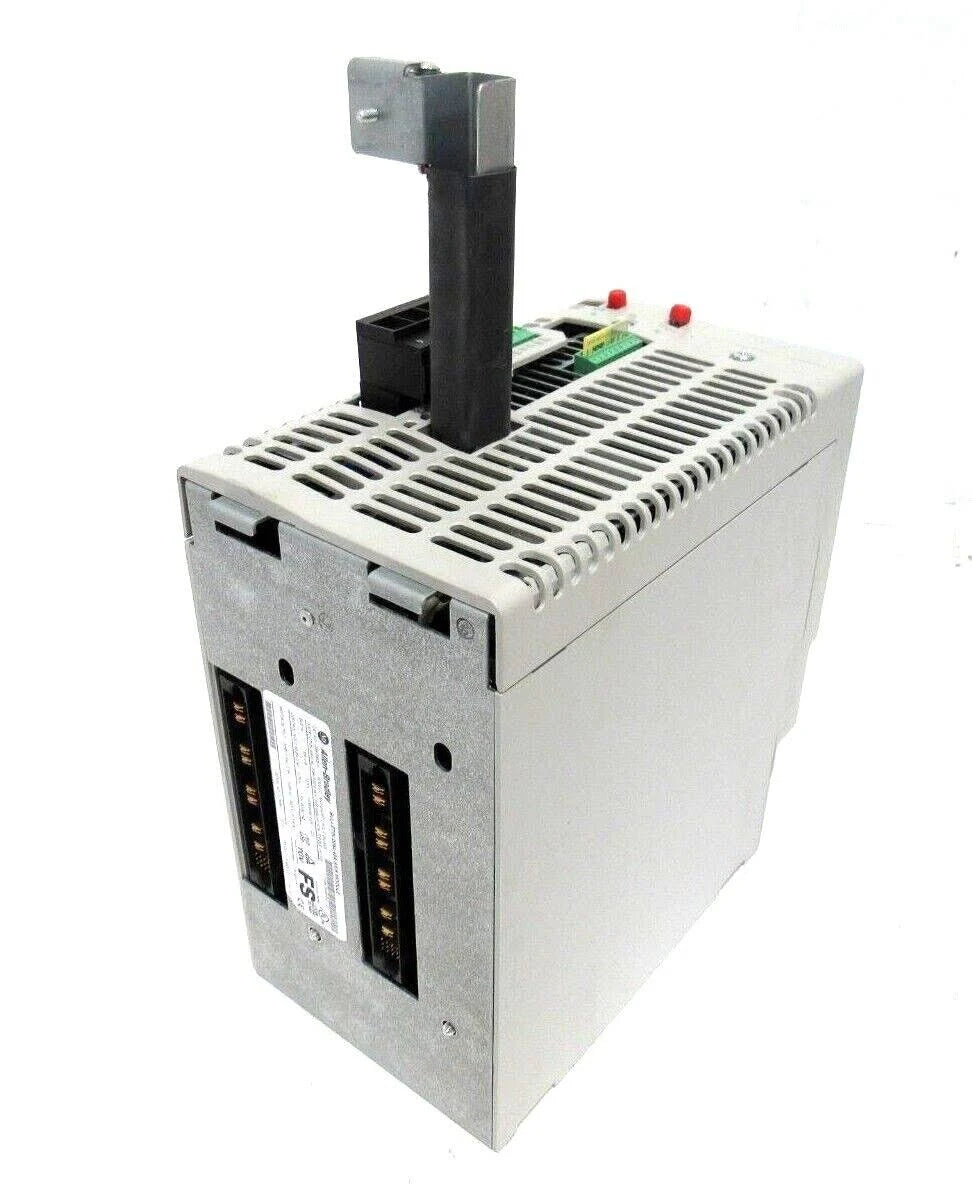

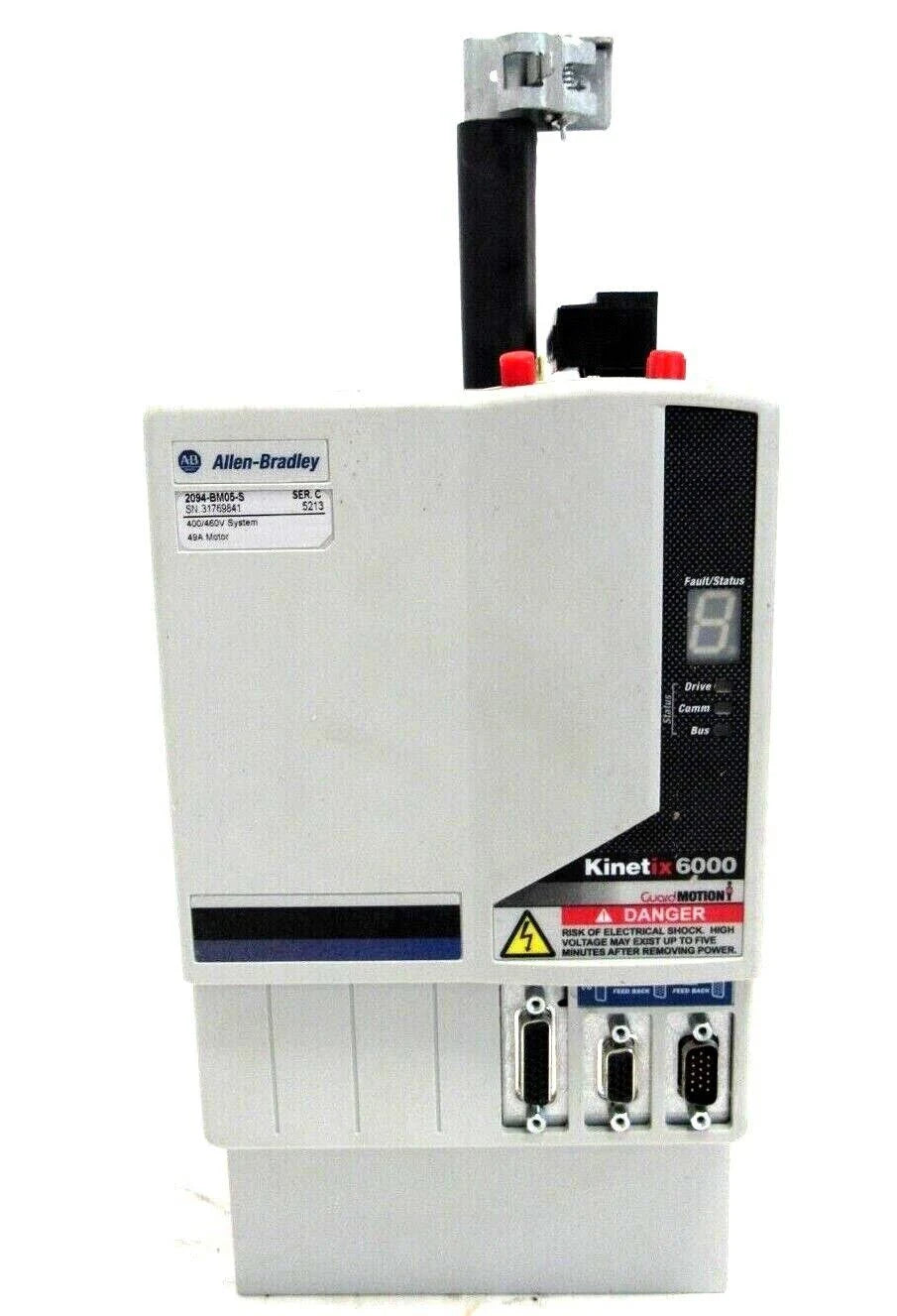

2094-BM05-S | Allen-Bradley Module, Axis, 400/460V, 48A Inv., Safe Torque Off
- Regular price
- $3,195.00
- Sale price
- $3,195.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2094-BM05-S
Description
The Allen-Bradley 2094-BM05-S is a Kinetix 6000 Drive component. This module is a 400VAC class Axis Module with continuous current of 34.6 A and peak current of 48.9 A. It has an efficiency of 98% and short-circuit current rating of 200,000 A (rms) symmetrical and integrated Safe Torque-off feature.
Technical Specifications
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Internal shunt peak power | 22.5 kW |
| Internal Shunt continuous power | 200W |
| Nom Drive Voltage | 360-480 Volts (3 Phase) |
| Voltage Class | 400V |
| Continuous power out (nom) | 22.0 kW |
| Peak Current | 69.2 A |
| Continuous Output Current (sine) | 48.9 A |
| Continuous Output Current | 34.6 A |
| Product Description | Integrated Axis Module |
| Part Number/Catalog No. | 2094-BM05-S |
| Efficiency | 98% |
| Internal Shunt Resistor | 28.75 Ohms |
| Module Type | AM 400 Volt Class |
| Nom Input Voltage | 650 Volts DC |
| Continuous Current (rms) | 34.6 Amperes |
| Continuous Current (sine, 0-peak) | 48.9 Amperes |
| Bandwidth Velocity Loop | 500 Hertz |
| Bandwidth Current Loop | 1300 Hertz |
| Internal Shunt (Continuous Power) | 200 Watts |
| Internal Shunt (Peak Power) | 22.5 Kilowatts |
| Series | A, B and C |
Information About 2094-BM05-S
The 2094-BM05-S is an Allen-Bradley axis-module that is part of the Kinetix 6000 Multi-Axis Drive Servo system. This axis module is a 400V class Axis Module featuring a continuous current (rms) of 34.6 Amperes and continuous current (sine) 0-pk of 48.9 Amperes. This axis module has a rated efficiency of 98%. It has a short-circuit current of 200,000 A (rms) symmetrical.
The 2094-BM05-S has a built-in safety feature such as Performance Level (PLe) and Safety Integrated Level (SIL) 3 rated Safe Torque-Off functionality. This functionality is certified by ISO 13849-1. This safety feature prevent immediate restarting of the drive when the safety circuit is activated. An external relay must be installed to enable the drive to meet EN954-1, Category 3 standard.
With direct integration, the 2094-BM05-S parameters may be accessed and dynamic drive configuration may be sent and received to the servo drive.
The 2094-BM05-S ‘has a continuous power output of 22.0kW. It supports bandwidth frequencies of 500 Hz for Velocity loop and 1300 Hz for Current loop. It has a Pulse Width Modulation (PWM) frequency of 4 kHz and nominal input voltage of 650 VDC. Depending on the drive series, the peak current (rms) values varies. Series A drives are rated 51.9 Amperes while series B and C drives are rated for 69.2 Amperes. Similarly, peak current (0-pk) values are 73.4 Amperes for Series A and 97.9 Amperes for Series B and C drives, respectively.
The Allen-Bradley 2094-BM05-S has a double wide slot usage and comes with a 22.0 kW continuous power output, 460 Volts voltage rating, and 49 Amps INV continuous current (RMS). It seamlessly integrates into the Logix platform for multi-axis integrated motion. And up to three 2094-BM05-S drives can be mounted on each 8-axis power rail.
Safety features are an essential component of the 2094-BM05-S AM Drive protecting both equipment and operator. The safety motion control optimizes machine operating efficiencies while minimizing downtime, and reducing production waste. The safe torque-off functionality, with a response time of less than 25 milliseconds, disables a drive output by removing motor torque instead of shutting down the entire machine. Unlike other Kinetix 6000 Enhanced Peak Performance Series modules, the 2094-BM05-S can have up to 200% of continuous inverter current. The standard 150% peak current is enabled by default.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
