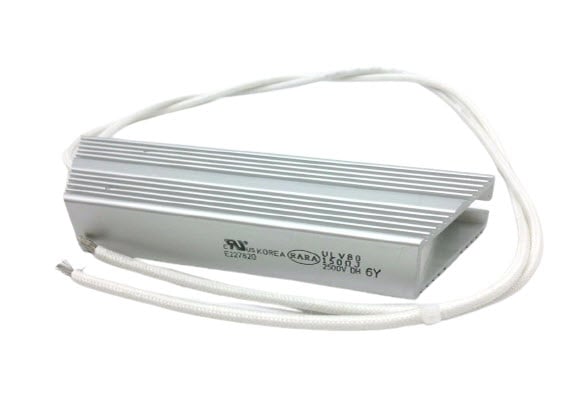

2097-R7 | Allen-Bradley Kinetix 300/350 150 Ohm Shunt Resistor
- Regular price
- $80.00
- Sale price
- $80.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2097-R7
Description
The Allen-Bradley 2097-R7 is a 150 Ohm shunt resistor designed for dynamic braking in Kinetix 300 and 350 servo drive systems. It dissipates regenerative energy with an 80W power rating to protect drives during deceleration.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Drives
|
| Part Number | 2097-R7 |
| Subcatecory |
Servo Drives & Controls
|
| Product Type | Dynamic Brake Shunt Resistor |
| Resistance | 150 Ohms |
| Power Rating | 80 Watts |
| Compatibility | Kinetix 300 / Kinetix 350 Servo Drives |
| Series | Series A |
| Application | Regenerative energy dissipation |
| Mounting | Panel-mount (typical) |
| Weight | 0.29 kgs |
Information About 2097-R7
The 2097-R7 is a dynamic brake resistor from Allen-Bradley, designed for integration with the Kinetix 300 and Kinetix 350 servo drive platforms. This resistor plays a critical role in absorbing excess regenerative energy during deceleration phases, preventing potential overvoltage conditions within the drive system. With a resistance value of 150 Ohms and a power rating of 80 Watts, the 2097-R7 ensures safe and efficient energy dissipation, supporting motion control reliability in high-inertia or frequent start-stop applications.
Key Features:
-
150 Ohm Resistance: Optimized for braking energy dissipation in servo systems
-
80 Watt Power Rating: Supports high-frequency deceleration and emergency stops
-
Compatible with Kinetix 300/350 Drives: Designed for seamless use with Rockwell motion platforms
-
Dynamic Braking Functionality: Prevents voltage spikes during regenerative braking events
-
Series A Design: Ensures consistent performance across standard control architectures
The 2097-R7 offers reliable braking performance and system protection for applications requiring efficient motion control and safe energy handling.
