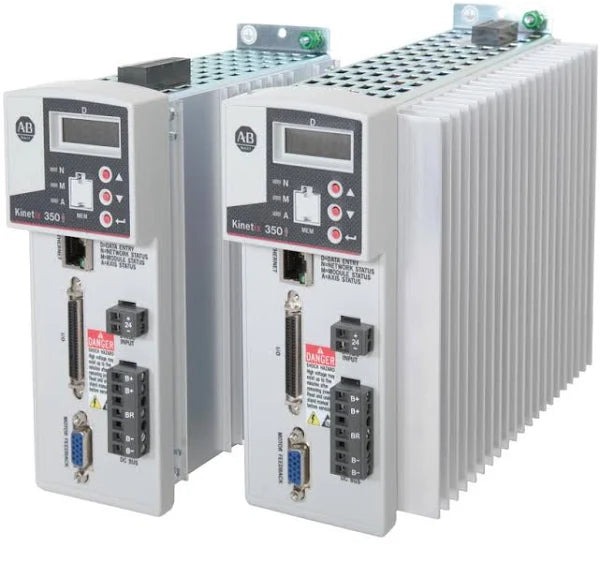

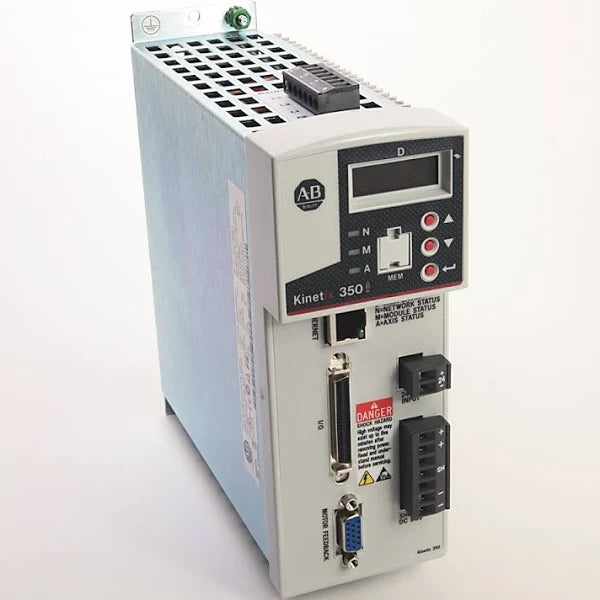

2097-V34PR6-LM | Allen-Bradley Kinetix 350 Servo Drive 1-Axis Ethernet/IP 480V 3kW
2097-V34PR6-LM | Allen-Bradley Kinetix 350 Servo Drive 1-Axis Ethernet/IP 480V 3kW
2097-V34PR6-LM | Allen-Bradley Kinetix 350 Servo Drive 1-Axis Ethernet/IP 480V 3kW
2097-V34PR6-LM | Allen-Bradley Kinetix 350 Servo Drive 1-Axis Ethernet/IP 480V 3kW
2097-V34PR6-LM | Allen-Bradley Kinetix 350 Servo Drive 1-Axis Ethernet/IP 480V 3kW
2097-V34PR6-LM | Allen-Bradley Kinetix 350 Servo Drive 1-Axis Ethernet/IP 480V 3kW

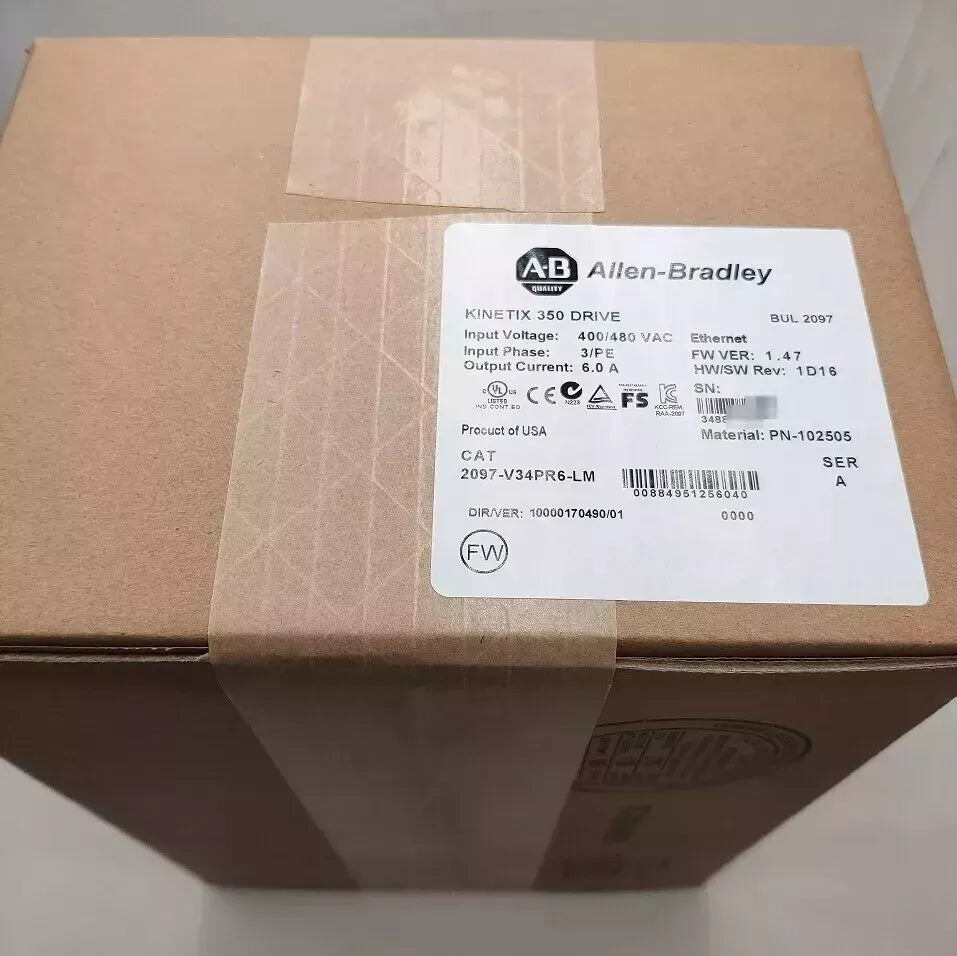

Part #: 2097-V34PR6-LM Manufactured by: Allen-Bradley

2097-V34PR6-LM | Allen-Bradley Kinetix 350 Servo Drive 1-Axis Ethernet/IP 480V 3kW

Regular price
$3,942.00
Sale price
$3,942.00
Regular price
Never Used Surplus
152 in Stock
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 2097-V34PR6-LM exhibits a 3.0 kWatts Power Rating, 8.5 Amperes Continuous Output Current (0-peak), and 4...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 2097-V34PR6-LM
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
2097-V34PR6-LM | Allen-Bradley Kinetix 350 Servo Drive 1-Axis Ethernet/IP 480V 3kW
2097-V34PR6-LM | Allen-Bradley Kinetix 350 Servo Drive 1-Axis Ethernet/IP 480V 3kW
2097-V34PR6-LM | Allen-Bradley Kinetix 350 Servo Drive 1-Axis Ethernet/IP 480V 3kW
    2097-V34PR6-LM | Allen-Bradley Kinetix 350 Servo Drive 1-Axis Ethernet/IP 480V 3kW
    2097-V34PR6-LM | Allen-Bradley Kinetix 350 Servo Drive 1-Axis Ethernet/IP 480V 3kW
    2097-V34PR6-LM | Allen-Bradley Kinetix 350 Servo Drive 1-Axis Ethernet/IP 480V 3kW
2097-V34PR6-LM | Allen-Bradley Kinetix 350 Servo Drive 1-Axis Ethernet/IP 480V 3kW
2097-V34PR6-LM | Allen-Bradley Kinetix 350 Servo Drive 1-Axis Ethernet/IP 480V 3kW
2097-V34PR6-LM | Allen-Bradley Kinetix 350 Servo Drive 1-Axis Ethernet/IP 480V 3kW
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 2097-V34PR6-LM

Description / Specifications

Description

The Allen-Bradley 2097-V34PR6-LM is a Kinetix 300 Ethernet I/P Single Axis servo drive. This drive has an AC input voltage requirement of 320-528VAC 3-phase, with nominal rating of 480V nom. This drive has continuous output current and power of 6.0 A and 3.0 kW respectively. This drive features a safe Torque-Off functionality.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 2097-V34PR6-LM
Product Bulletin 2097 Kinetix 300 Drives
Continuous power output 3.00 kW
Peak output current (0-pk) 25.5 A
Peak output current (rms) 18.0 A
Continuous output current (0-pk) 8.5 A
Continuous output current (rms) 6.0 A
Control power back-up input current, max. inrush 30 A
Control power back-up input current, nominal 500 mA
Control power back-up input voltage 20…26V DC
Main AC input current, Nom (0-pk) 22.6 A
Main AC input current, Nom (rms) 7.9 A
Input Frequency 48…62 Hz
Input Voltage 320…528V rms three-phase (480V nom)
Dimensions 9.37 x 7.29 x 3.06 in (238 x 185.1 x 12.38 mm)
Safe Torque-Off Yes
Power Rating 3.0 kWatts
Integrated AC (EMC) Line Filter No
Series Kinetix 350





Information About 2097-V34PR6-LM

The Allen-Bradley 2097-V34PR6-LM part of the Bulletin 2097 Kinetix 350 Single-Axis Ethernet I/P Servo drive. This drive is operated by supplying an external supply voltage of 320-528VAC 3-phase along a frequency range of 48-62 Hz and input current of 7.9 A, nominal. The output characteristics of the 2097-V34PR6-LM servo drive includes continuous output current (rms) of 6.0 A, Continuous output current (0-pk) of 8.5 A, Peak output current (rms) of 18.0 A and Peak output current (0-pk) of 25.5 A. The drive’s output power rating is 3,0 kW at nominal voltage of 480VAC.

This Kinetix Drive has built-in Safe Torque-Off functionality which is certified for use in applications requiring up to ISO 13849-1 performance level d (PLd) safety category 3.Additionally, this Kinetix drive is also provided with an internal Overvoltage protection and short-circuit current protection which mainly protects the device and the connected process.

The 2097-V34PR6-LM Kinetix supports seamless integration with MP-series and TL-series servo motors and actuators. Aside from the mentioned motors and actuators, integration with Allen-Bradley visualization products such as PanelView operator terminals, distributed I/O elements specifically Allen-Bradley 1734 Point I/O remote I/O modules and Logix Automation controller platforms is possible through the embedded Ethernet I/P interface.

When installing the 2097-V34PR6-LM, the minimum mounting clearances must be met to promote an adequate air flow. Specific clearance requirements include 25.0 mm (1.0 in.) for top and bottom clearance, 3 mm (0.12 in.) for side clearances. Depending on the accessory devices installed, additional clearances may need to be added to maintain proper air flow.

The 2097-V34PR6-LM is 9.37 inches (238 millimeters) high, 7.29 inches (185.1 millimeters) wide, and 3.06 inches (12.38 millimeters) deep, and it weighs approximately 4.0 pounds (1.8 kilograms). This device operates on sine wave voltage and uses internal solid-state motor short-circuit protection which can be used on a circuit that delivers up to 100,000 Amperes (if the fuse is used) or 65,000 Amperes (if circuit breakers are used). As far as the enclosure is concerned, a custom designed enclosure design may be used which should be sized in accordance with the maximum ambient temperature rating (including heat dissipation, which amounts to 99 Watts in this drive). The 2097-V34PR6-LM should be mounted on a rigid, flat vertical surface that is not subjected to vibrations, shock, humidity, dust, corrosive vapors, or oil mist.

The 2097-V34PR6-LM features a Safe Torque-Off, which is a method to send the power-transistor control signals to a disabled state. In other words, when power is disabled, this motor is in its coasting condition. This circuit removes power from the gate firing circuits of the drives output power devices (IGBTs), thus preventing them from generating AC power to the motor. In addition to this circuit, the drive has 12 digital Inputs used for travel limit switches, push buttons, proximity sensors, and hand shakes with other devices. Thanks to the 15-pin MF motor feedback connector, the 2097-V34PR6-LM supports multiple types of feedback devices.



Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The Allen-Bradley 2097-V34PR6-LM is a Kinetix 300 Ethernet I/P Single Axis servo drive. This drive has an AC input voltage requirement of 320-528VAC 3-phase, with nominal rating of 480V nom. This drive has continuous output current and power of 6.0 A and 3.0 kW respectively. This drive features a safe Torque-Off functionality.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 2097-V34PR6-LM
Product Bulletin 2097 Kinetix 300 Drives
Continuous power output 3.00 kW
Peak output current (0-pk) 25.5 A
Peak output current (rms) 18.0 A
Continuous output current (0-pk) 8.5 A
Continuous output current (rms) 6.0 A
Control power back-up input current, max. inrush 30 A
Control power back-up input current, nominal 500 mA
Control power back-up input voltage 20…26V DC
Main AC input current, Nom (0-pk) 22.6 A
Main AC input current, Nom (rms) 7.9 A
Input Frequency 48…62 Hz
Input Voltage 320…528V rms three-phase (480V nom)
Dimensions 9.37 x 7.29 x 3.06 in (238 x 185.1 x 12.38 mm)
Safe Torque-Off Yes
Power Rating 3.0 kWatts
Integrated AC (EMC) Line Filter No
Series Kinetix 350





Information About 2097-V34PR6-LM

The Allen-Bradley 2097-V34PR6-LM part of the Bulletin 2097 Kinetix 350 Single-Axis Ethernet I/P Servo drive. This drive is operated by supplying an external supply voltage of 320-528VAC 3-phase along a frequency range of 48-62 Hz and input current of 7.9 A, nominal. The output characteristics of the 2097-V34PR6-LM servo drive includes continuous output current (rms) of 6.0 A, Continuous output current (0-pk) of 8.5 A, Peak output current (rms) of 18.0 A and Peak output current (0-pk) of 25.5 A. The drive’s output power rating is 3,0 kW at nominal voltage of 480VAC.

This Kinetix Drive has built-in Safe Torque-Off functionality which is certified for use in applications requiring up to ISO 13849-1 performance level d (PLd) safety category 3.Additionally, this Kinetix drive is also provided with an internal Overvoltage protection and short-circuit current protection which mainly protects the device and the connected process.

The 2097-V34PR6-LM Kinetix supports seamless integration with MP-series and TL-series servo motors and actuators. Aside from the mentioned motors and actuators, integration with Allen-Bradley visualization products such as PanelView operator terminals, distributed I/O elements specifically Allen-Bradley 1734 Point I/O remote I/O modules and Logix Automation controller platforms is possible through the embedded Ethernet I/P interface.

When installing the 2097-V34PR6-LM, the minimum mounting clearances must be met to promote an adequate air flow. Specific clearance requirements include 25.0 mm (1.0 in.) for top and bottom clearance, 3 mm (0.12 in.) for side clearances. Depending on the accessory devices installed, additional clearances may need to be added to maintain proper air flow.

The 2097-V34PR6-LM is 9.37 inches (238 millimeters) high, 7.29 inches (185.1 millimeters) wide, and 3.06 inches (12.38 millimeters) deep, and it weighs approximately 4.0 pounds (1.8 kilograms). This device operates on sine wave voltage and uses internal solid-state motor short-circuit protection which can be used on a circuit that delivers up to 100,000 Amperes (if the fuse is used) or 65,000 Amperes (if circuit breakers are used). As far as the enclosure is concerned, a custom designed enclosure design may be used which should be sized in accordance with the maximum ambient temperature rating (including heat dissipation, which amounts to 99 Watts in this drive). The 2097-V34PR6-LM should be mounted on a rigid, flat vertical surface that is not subjected to vibrations, shock, humidity, dust, corrosive vapors, or oil mist.

The 2097-V34PR6-LM features a Safe Torque-Off, which is a method to send the power-transistor control signals to a disabled state. In other words, when power is disabled, this motor is in its coasting condition. This circuit removes power from the gate firing circuits of the drives output power devices (IGBTs), thus preventing them from generating AC power to the motor. In addition to this circuit, the drive has 12 digital Inputs used for travel limit switches, push buttons, proximity sensors, and hand shakes with other devices. Thanks to the 15-pin MF motor feedback connector, the 2097-V34PR6-LM supports multiple types of feedback devices.



Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.
